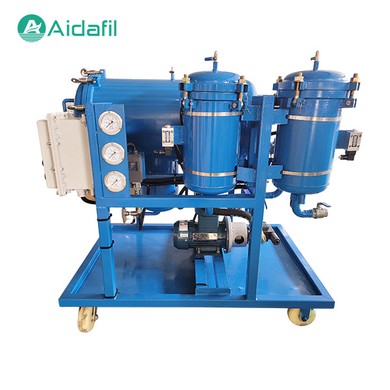

Water Removal Oil Filter Machine

This machine has five filtration systems, combining precise filtration and dewatering two functions into one efficient. The introduction of the US "coalescing separation" technology for dehydration, which has high efficient dehydration, especially is adapted to the large amount of water separation from oil, dehydration ability is far better than the centrifugal method, you can get rid of all of the oil-water emulsion medium structure ; by filtration, particle filtration system, the cleanliness of the medium can be controlled in a stable state of the system requirements to ensure the cleanliness; the oil does not change the physical and chemical properties, to extend the service life of the oil; energy small, low operating costs; excellent system configuration, continuous strong performance for online operation.

1.FUNCTION
The main function is to remove free and dissolved water, gases, and mechanical impurities from insulating oils so as to ensure its purity and improve its insulation property. It is suitable for the application to oil treatment 500KV super-voltage transforming equipment and 220KV transformers. It is also suitable for the treatment of capacitor oil, transformer oil and freezer oil.

2.TECHNICAL FEATURES
●Doubles the evaporation area by adopting Huazheng horizontal double vacuum separation technology efficiently and reliability thorough removal of gas in the oil by using coalescing oil spray separator.
●Adoption of American fine filter element, fineness: 5μm, ß≥1000
●Low noise and long life of the oil transport system
● Adoption of American heating technique with the way of thermal radiation, constant temperature control.
●The use of float valve and photoelectric oil level control, eliminates supervision
●Adoption of French de-foaming technique to avoid oil leaking
●Controlled digitally and automatically by PLC
● Major electric apparatus are imported from America, so the controlling system safe and reliable

3.Technical parameters
