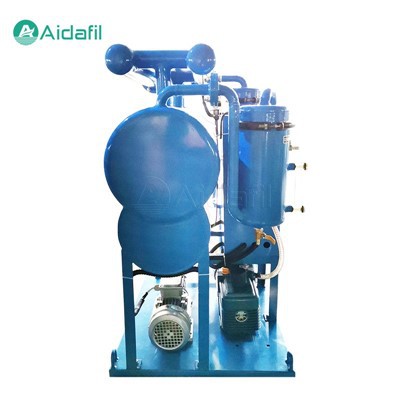

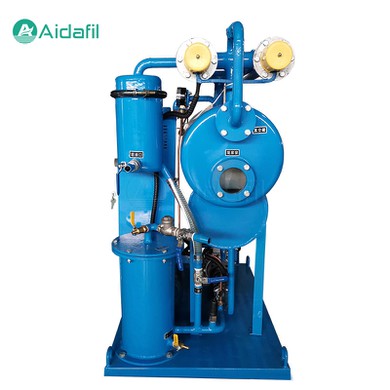

High Efficient Turbine Oil Vacuum Oil Purifier Machine

The high efficient turbine oil vacuum oil purifier machine is an essential piece of equipment for maintaining the optimal performance and longevity of turbine systems. This advanced machine is designed to purify and revitalize turbine oils, ensuring that they remain free from impurities and maintain their efficiency over time.



Function

The high efficient turbine oil vacuum oil purifier machine is used to deal with the unqualified turbine oil, especially the severely emulsified turbine oil. The oil is easily polluted during the work of different kinds of steam and water turbines. The content of moisture and impurities in the oil increases. Oil emulsification seriously affects the safe operation and service life of the equipment. The high efficient turbine oil vacuum oil purifier machine can quickly and effectively remove water, gas and impurities according to the turbine oil's nature of high water content, easy emulsification and high impurity content. It makes the oil recover the new oil's nature and guarantees that the machine works safety.



Main Parameters

Working pressure : 0.6Mpa

Rated vacuum : ≤ - 0.095Mpa

Water content : 5 - 30ppm

Air content : ≤0.2%

Coarse filtration : 100μm

Fine filtration : 3, 5, 10, 20μm

Flow rate : 25 - 200L/min

Voltage : AC 380V (Three-phase), 50Hz



Key Features

1. High Purification Efficiency. The oil purifier is equipped with a sophisticated purification system that includes multi-stage filtration processes, ensuring maximum removal of impurities such as particles, water, and gases.

2. Vacuum System. A powerful vacuum pump is utilized to create a low-pressure environment, which helps in efficiently separating water, gases, and other volatile components from the turbine oil.

3. Dehydration and Deoxygenation. The oil purifier incorporates a dehydration and deoxygenation system to remove excess water and dissolved oxygen from the oil, which are known to cause corrosion and accelerate the wear of turbine components.

4. Temperature Control. Advanced temperature control systems are integrated to maintain the optimal operating temperature for the purification process, ensuring the best possible performance and efficiency.

5. Automated Operation. The oil purifier is designed for fully automated operation, including start-up, shutdown, and routine maintenance. It also features intelligent monitoring systems to detect and alert any operational issues.

6. High-Quality Construction. The oil purifier is built with high-quality materials, ensuring durability, reliability, and resistance to the demanding conditions of turbine environments.



Working Principles

The high efficient turbine oil vacuum oil purifier machine operates on the principles of vacuum dehydration and multi-stage filtration to purify the turbine oil. Here's a step-by-step explanation of the working process:

1. Oil Supply. The turbine oil to be purified is supplied to the machine through a pipeline or storage tank.

2. Initial Filtration. The oil passes through a coarse filter to remove large particles and debris before entering the main purification chamber.

3. Vacuum Creation. A vacuum pump generates a low-pressure environment within the purification chamber, creating a partial vacuum. This lowers the boiling point of the oil, causing the water and volatile gases to evaporate.

4. Dehydration and Deoxygenation. The evaporated water and gases are separated from the oil and directed to a dehydration and deoxygenation unit. This unit employs adsorbents and catalysts to remove water and oxygen from the gas stream, preventing their re-entry into the oil.

5. Fine Filtration. The partially purified oil then passes through a fine filter to remove any remaining particles and contaminants.

6. Oil Recovery. The purified oil is collected in a storage tank, ready for reuse in the turbine system.



Applications

The high-efficient turbine oil vacuum oil purifier machine finds applications in various industries, including:

1. Power Generation. The machine is widely used in power generation plants that rely on turbines for the production of electricity.

2. Petrochemical Industry. The petrochemical industry benefits from the high-efficient vacuum turbine oil purifier machine's ability to maintain the cleanliness and functionality of turbine oil used in various processes.

3. Manufacturing. The machine is employed in manufacturing facilities that use turbines in their production processes, helping to improve equipment efficiency and reduce downtime.

4. Marine Industry. The high-efficient vacuum turbine oil purifier machine is also used in the marine industry for maintaining the quality of turbine oil in ships and other marine vessels.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
