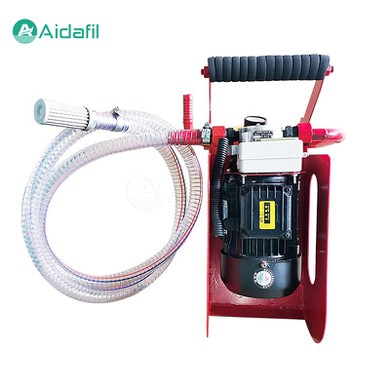

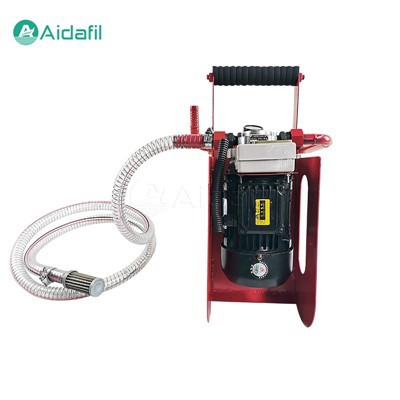

Flexible Miniature Hand Held Oil Purifier For Field Working

The flexible miniature hand held oil purifier for field working offers an unprecedented level of convenience and versatility in purifying contaminated oils from various machinery and equipment in remote locations or under challenging conditions. It is designed to be compact and lightweight, making it highly portable and easy to carry. Weighing only a few pounds, this oil purifier can be easily transported to different locations, ensuring that you can purify oil whenever and wherever you need it. Its small size also allows for easy storage, making it a perfect addition to any toolkit or laboratory equipment.



The flexible miniature hand held oil purifier for field working is designed to be energy-efficient and environmentally friendly. It operates on a low power consumption, ensuring that it does not consume excessive energy during the purification process. Additionally, the purifier is constructed using high-quality materials that are durable and resistant to wear and tear, reducing the need for frequent replacements or repairs. This not only saves costs but also contributes to reducing waste and environmental impact.



Parameters

Rated flow : 6 L/min, 10 L/min, 16 L/min

Rated pressure : 0.34 Mpa

Original pressure loss : ≤0.02 MPa

Coarse filtration accuracy : 40 meshes

Fine filtration accuracy : 3 μm, 5 μm, 10 μm, 20 μm, 40 μm

Alarm differential pressure : 0.2 MPa

Use temperature : 6~80 °C

Recommended viscosity for use : 10~160 cSt

Power supply : AC380V three-phase, AC220V three-phase



Key Features and Design

1. Compact Size and Lightweight Construction

The hand-held oil purifier boasts a miniature design that is both lightweight and ergonomic, allowing for easy handling and transportation by a single operator. Its dimensions and weight are optimized to fit into standard toolkits and can be effortlessly carried around job sites.

2. Versatile Compatibility

Engineered with adaptability in mind, this unit can purify a wide array of oil types including hydraulic fluids, lubricants, and transformer oils. It's equipped with interchangeable filters and connectors, which enable it to connect to diverse oil reservoirs and systems without requiring specialized adapters or fittings.

3. Advanced Filtration Technology

Incorporating advanced micro-filtration mechanisms, this device effectively removes particulate contaminants, water, and other impurities down to extremely fine levels (e.g., 3 microns). This ensures that the oil maintains its required cleanliness standards, thereby prolonging component life and improving overall system efficiency.

4. Powerful Performance

Despite its small size, the oil purifier delivers high flow rates while maintaining low pressure drop. This allows for rapid purification without putting undue stress on the machine's oil system, making it suitable for quick turnaround maintenance tasks or emergency situations.

5. Field-Ready Durability

Built with robust materials and weather-resistant casing, this purifier withstands harsh environmental conditions typically encountered during fieldwork. It's designed to operate reliably in extreme temperatures, dust-laden environments, and even in wet conditions, demonstrating resilience and durability that matches the demands of outdoor applications.



Versatility

The flexible miniature hand held oil purifier is incredibly versatile and useful in a variety of settings. Whether you are looking to clean oil in a factory, farm, or other outdoor setting, this device can get the job done quickly and efficiently.

Additionally, the device can handle all kinds of oil, including motor oil, hydraulic oil, making it a versatile tool that can be used in a range of industries.



Ease of Use and Maintenance

1. User-Friendly Interface

The intuitive controls and clear indicators make operation simple and straightforward. Users can easily monitor the filtration process, track filter life, and determine when to change the filter element.

2. Quick Filter Change

To ensure minimal downtime and maximum productivity, the oil purifier is designed for quick and easy filter replacement. This allows for swift transitions between jobs or when dealing with different oil types.

3. Sustainable Design

With replaceable filter cartridges, the purifier contributes to sustainable practices by reducing waste and promoting reuse of existing oil resources rather than disposal and replacement.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
