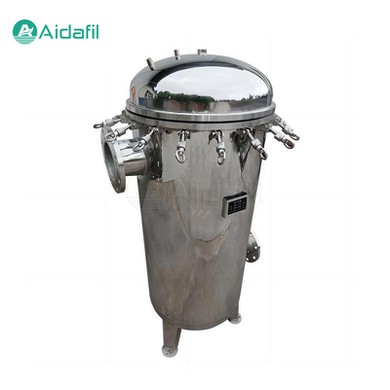

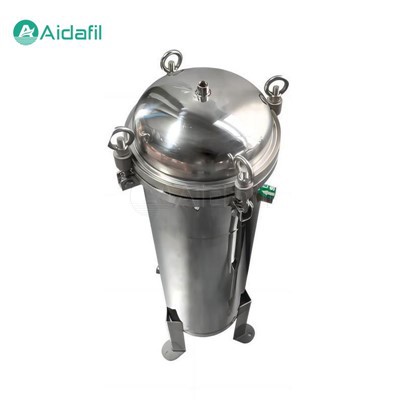

Water Treatment Bag Filter

Our water treatment bag filter is a kind of high-efficiency water filtration equipment widely used in industrial production processes. It is mainly used to remove suspended solids, particulate impurities, rust, etc. in water to ensure that the water quality meets the standards of production or domestic water use. The core part of this filter is stainless steel bag filter elements, which are made of metal woven mesh. The water treatment bag filter has the characteristics of good filtration effect, simple structure, simple operation and convenient maintenance, so they are widely used in the field of water treatment.



The working principle of the water treatment bag filter is to use the filter screen and filter bag to intercept the particulate impurities in the water, so as to achieve the purpose of purifying the water quality. When the water flows through the filter, the larger particulate impurities are intercepted by the filter screen, and the smaller particulate impurities are captured by the filter bag. As the filtration process progresses, impurities will gradually accumulate on the filter screen and filter bag. At this time, the filter needs to be cleaned or the filter bag needs to be replaced.



Product Features

1. High-efficiency filtration. Multi-layer stainless steel filter bags are used for high filtration accuracy and can achieve micron-level filtration.

2. Strong corrosion resistance. The main body and internal filter components are made of high-quality stainless steel, suitable for various acid and alkali environments.

3. Easy to clean and maintain. The unique structural design makes it very convenient to replace and clean the filter bag.

4. Long service life. Stainless steel and advanced manufacturing processes ensure the durability of the product.

5. Wide range of applications. It can be used for liquid filtration in industrial water, domestic water, beverages, chemicals, pharmaceuticals, and other fields.



Product Parameters

Flange standard	HG, GB, SH, HGJ, J8, ANSI, JIS
Connections	Thread, Flange, Clamp
Drain outlet specification	1/4
Filtering precision	0.5 - 800 μm
Design pressure	0.6 - 1.0 Mpa
Design temperature	90°C for PP filter bag, 130°C for PE filter bag, 240°C for PTFE filter bag
Surface treatment	Sand blasting, polishing
Housing material	20#, 304, 316L, 2205/2507, titanium
Sealing gasket material	Silica gel, NBR, PTFE
Filter bag material	Polyester, polypropylene, nylon, PTFE, glass fiber



Product Advantages

The water treatment bag filter offers the following advantages compared to other types of filtration equipment:

1. Compact structure and small footprint

The compact design of the water treatment bag filter makes the entire equipment a small footprint, making it easy to install and arrange.

2. Easy and flexible operation

The water treatment bag filter adopts a modular design, which makes installation and disassembly more convenient and quick, and can be flexibly combined and adjusted according to actual needs.

3. Energy-saving and efficient

The water treatment bag filter has a large filtration area and low pressure drop, which can reduce energy consumption and operating costs. At the same time, its unique flow channel design and filtration mechanism make the filtration process more efficient and stable, improving the efficiency and quality of water treatment.

4. Long service life

The water treatment bag filter is made of stainless steel with high mechanical strength and compressive strength, and the use of a special filter bag as the filter medium can prolong the service life and reduce the frequency and cost of replacement and maintenance.



Product Application

1. Industrial water filtration. Used for pretreatment and fine filtration of cooling water, boiler feed water, circulating water, etc.

2. Food and beverage industry. Used in the production process to remove impurities and improve product quality.

3. Chemical industry. Used for the clarification and filtration of chemical solutions to remove precipitation and suspended solids.

4. Pharmaceutical industry. Plays a key role in the purification of pharmaceutical water and apis.

5. Aquaculture. Improve water quality, remove harmful substances, and provide a healthy farming environment.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
