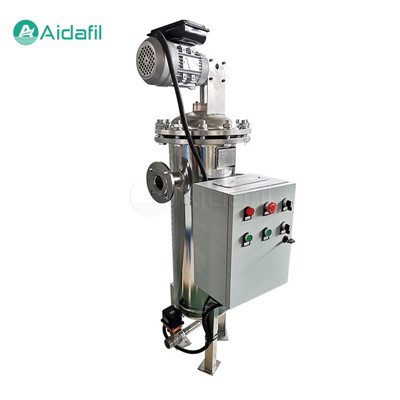

Efficient Convenient Fully Automatic Self-Cleaning Filter

The efficient convenient fully automatic self-cleaning filter is mainly composed of a filter cylinder, a filter element, a sewage valve, a control system, etc. When water enters the filter from the water inlet, it is first filtered through the filter element to remove large particles of impurities in the water. Then, the water flows into the filter cylinder and is filtered through the micropores on the cylinder wall for secondary filtration to further remove fine impurities. During the filtration process, impurities gradually adhere to the filter element and the cylinder wall, resulting in a decrease in the filtration effect. At this time, the control system will start the automatic cleaning program according to the set time or pressure difference, and discharge the dirt through the sewage valve to restore the filtration effect.



Automatic cleaning function

The core function of the efficient convenient fully automatic self-cleaning filter is automatic cleaning. When the filter has been working for a period of time, the control system will determine whether it needs to be cleaned according to the set time or pressure difference. If the cleaning conditions are met, the control system will start the cleaning procedure, first close the water inlet valve, then open the sewage valve, and use the pressure difference inside and outside the filter to flush away the impurities attached to the filter element and the cylinder wall. After cleaning is completed, close the sewage valve, open the water inlet valve, and resume the filtration work. The whole process does not require manual intervention, realizing the automatic operation of the equipment.



Intelligent control system

The efficient convenient fully automatic self-cleaning filter adopts an advanced intelligent control system, which can realize remote monitoring and fault diagnosis of the equipment. The control system has a variety of protection functions, such as overload protection, short circuit protection, leakage protection, etc., to ensure the safe and stable operation of the equipment. In addition, the control system can also adjust the cleaning frequency and time according to the actual working conditions to achieve energy-saving operation of the equipment.



Parameters

Single unit flow	50-1200M3/H, larger flow can be realized by multiple single units in parallel
Minimum working pressure	0.2Mpa
Maximum working pressure	1.0/1.6/2.5/4.0Mpa
Maximum operating temperature	80°C
Filtration accuracy	130~3500 microns
Control mode	Differential pressure, timing or manual
Cleaning time	60s
Cleaning mechanism speed	14-20rpm
Cleaning pressure loss	0.01Mpa
Control voltage	AC 220V
Rated operating voltage	Three-phase, AC220V /380V, 50HZ



Application field

The efficient convenient fully automatic self-cleaning filters are widely used in the following fields:

1. Industrial circulating water treatment

It is used for filtration of cooling water, desalinated water, boiler water, etc., to ensure that the water quality meets the process requirements and improve the operating efficiency of the equipment.

2. Wastewater treatment

It is used in the pretreatment process of wastewater treatment plants to remove suspended solids, colloids, microorganisms, etc. in water and reduce the burden of subsequent treatment.

3. Domestic water purification

It is used in water plants, community water supply systems and other places to remove impurities, odors, bacteria, etc. from the water to ensure the safety of residents' drinking water.



Advantage features

1. High-efficiency filtration

The multi-layer filtration structure is adopted to effectively remove various impurities from the water and ensure that the water quality meets standards.

2. Automatic cleaning

Without manual intervention, the cleaning process is completed automatically, saving labor costs.

3. Intelligent control

Adopt advanced control systems to achieve remote monitoring and fault diagnosis of equipment, and improve the reliability of equipment operation.

4. Energy conservation and environmental protection

Adjust the cleaning frequency and time according to the actual working conditions to achieve energy-saving operation of the equipment.



Considerations for Selection

When choosing an efficient convenient fully automatic self-cleaning filter, several factors must be considered:

1. Fluid compatibility. The material of the filter must be suitable for the specific fluid it will be filtering (e.g., water, oil, chemicals).

2. Flow rate. The filter should accommodate the fluid flow rate without creating excessive pressure drops.

3. Filtration precision. The size of particles to be captured determines the filter's pore size and overall design.

4. Pressure rating. The operational pressure of the system must be within the filter's design specifications.

5. Temperature tolerance. The filter should operate efficiently within the working temperature range of the fluid.

6. Maintenance requirements. While these systems are designed for minimal maintenance, some level of upkeep is still required. Understanding these needs is crucial for planning routine checks and servicing.

7. Reliability and warranty. Choose a filter from a reputable manufacturer known for producing reliable, long-lasting products with solid warranties.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
