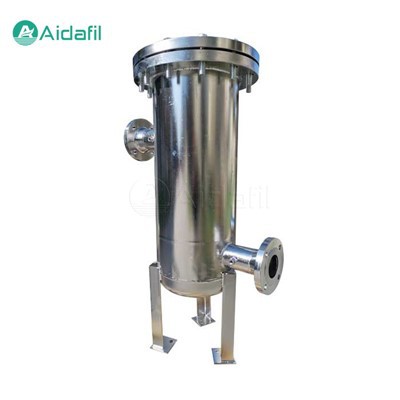

Reliable High Precision Stainless Steel Security Precision Filter

The reliable high precision stainless steel security precision filter is the important water quality pretreatment equipment, and is usually used in membrane water treatment processes such as reverse osmosis systems and ultrafiltration systems, as well as liquid filtration in food, pharmaceutical and chemical industries. Its main function is to remove tiny suspended solids, particulate impurities and some microorganisms in the liquid to protect the operation safety of subsequent equipment and improve product quality.



The working principle of the reliable high precision stainless steel security precision filter is mainly physical screening. The liquid to be treated passes through the filter medium (ie filter element) with a certain accuracy under the action of pressure, and the particles larger than the pore size of the filter medium are trapped to achieve the purpose of purifying the liquid.



During operation, the filtration effect needs to be checked regularly and whether the filter element needs to be replaced based on changes in pressure difference. At the same time, use under extreme temperature or pressure conditions should be avoided to avoid damage to the device.



Parameters

Product name	Stainless Steel security precision filter
Application	Water treatment
Material	Stainless Steel 304/316L
Size	Customized size
Flow	3-246m3/h
Number of filter element	3-123
Working pressure	0.6Mpa
Filter element material	PP/PE/Stainless steel
Min. Filtration precision	0.5 μm
Condition	New



3 filter elements	3 m³/h
5 filter elements	5 - 10 m³/h
7 filter elements	7 - 14 m³/h
12 filter elements	12 - 24 m³/h
20 filter elements	40 m³/h
25 filter elements	50 m³/h
30 filter elements	60 m³/h
36 filter elements	72 m³/h
42 filter elements	90 m³/h
51 filter elements	102 m³/h
60 filter elements	120 m³/h
72 filter elements	144 m³/h
123 filter elements	246 m³/h



Structural features

- Cylinder. Usually made of stainless steel (such as 304 or 316L), which has good corrosion resistance.

- Feet. Support the device structure to ensure stable installation.

- Upper cover. Easy to open for filter element replacement or maintenance and cleaning.

- Filter element. It is the core component of the security filter. Commonly used filter element materials include PP melt-blown, wire-fired, pleated, etc. Filter elements of different precisions are selected according to different application requirements.

- Inlet and outlet. Generally equipped with flange or threaded connections to facilitate connection with the pipeline system.



Application field

- Water treatment. As a pretreatment equipment for membrane water treatment such as reverse osmosis and ultrafiltration, it extends the service life of the membrane.

- Food and beverage. Used for clarification and filtration of alcohol, beverages, dairy products, etc.

- Pharmaceutical chemical industry. In the pharmaceutical process to remove particles in the liquid, or in the chemical production process of catalyst recovery, resin filtration and other links.

- Electronics industry. End point filtration in the preparation of high purity water.



Design advantages

- High efficiency. Security filters can efficiently remove tiny particles and improve water quality.

- Long life. High-quality filter elements have a long service life, reducing the frequency of replacement.

- Easy to maintain. Simple structure makes it easy to disassemble and replace the filter element.

- Safety. Protect subsequent equipment from particle contamination, reducing the risk of equipment damage.



Notes

- Select the appropriate filter element. Choose the appropriate filtration accuracy and material according to the filtration requirements.

- Avoid excessive filtration. Excessive filtration accuracy may result in frequent clogging of the filter element, increasing maintenance costs.

- Pay attention to system pressure. Avoid exceeding the design pressure of the filter to avoid damaging the equipment.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
