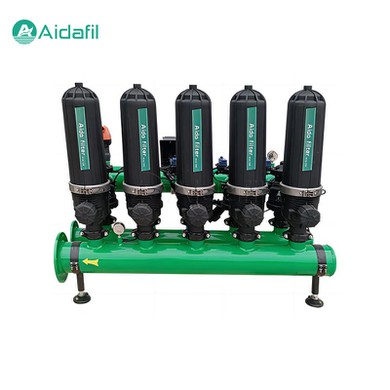

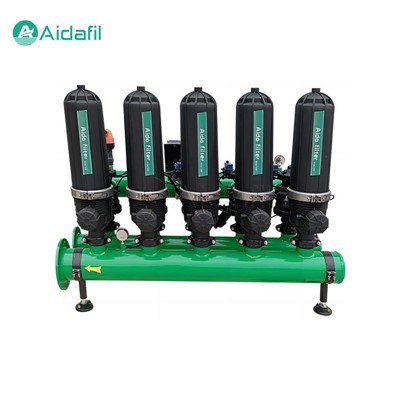

Unique-Structure Water Treatment Disc Filter

The unique-structure water treatment disc filter is an efficient and energy-saving filtration equipment uses the specially designed discs as the filter element. These discs have a structure with grooves on both sides. When the water flows through, the intersection formed by the edges of the grooves can effectively intercept the solid matter in the water. Compared with traditional filter media, the laminated filter not only has higher filtration accuracy, but also can automatically backwash and run continuously, greatly reducing labor investment and maintenance costs.

Parameters

Working pressure	0.2Mpa ~ 0.8Mpa
Backwash pressure	0.15Mpa ~ 0.8Mpa
Working temperature	<60°C
pH value	4 ~ 13
Filter element number	2 ~ 10
Filter accuracy	20μm ~ 200μm
Inlet pipe	Plastic material, flange connection
Outlet pipe	Plastic material, flange connection
Drain pipe	Flange connection
Backwash valve	Plastic material
System control	Fully automatic special control system, with IP65 international standard insulation class

Working principle

The working principle of the unique-structure water treatment disc filter is mainly based on the role of surface blocking and condensation. When the water flow passes through the discs, the solid material in the water is intercepted by the intersection formed by the edge of the groove, so as to achieve the purpose of filtration. At the same time, due to the special design of the discs, the water flow will cause a certain disturbance when passing through the discs, making it easier for the suspended matter in the water to be intercepted. In addition, the disc filter also has an automatic backwashing function. When the solid material in the filter accumulates to a certain extent, the system will automatically backwash and rinse the intercepted solid material to ensure the continuous and stable operation of the filter.

Structural features

1. Large filtration area. The disc filter is superimposed with multiple layers of filters, resulting in a large filtration area, which can meet the filtration tasks of different flow requirements.

2. High filtration accuracy. The disc filter can choose different filtration accuracy according to requirements, up to the nanometer level.

3. Automatic cleaning. The disc filter adopts the backwashing method. When a certain amount of impurities accumulate on the surface of the filter, it can be cleaned by the backwashing device to restore the filtration performance.

4. Compact structure. The disc filter has a simple structure and a small footprint, making it easy to install and maintain.

5. Energy-saving and environmentally friendly. The disc filter adopts a high-efficiency and energy-saving design, with low operating resistance, reducing energy consumption and reducing environmental pollution.

Advantages

1. Stable filtration effect. The disc filter has high filtration accuracy, which can effectively remove suspended solids, particulate matter and other impurities in the water to ensure the stability of water quality.

2. High degree of automation. The disc filter can achieve automatic filtration, backwashing, shutdown and other functions, reducing labor costs and improving work efficiency.

3. Strong adaptability. The disc filter is suitable for a variety of water quality and can adapt to environmental conditions such as different temperatures, pH, etc.

4. Low operating cost. The disc filter has low operating resistance, saves energy and reduces operating costs.

5. Easy maintenance. The disc filter is simple in structure, easy to maintain, and has a low failure rate.

6. Long life. The disc filter is made of polymer material, which is corrosion-resistant, wear-resistant, and has a long service life.

Application fields

1. Industrial circulating water treatment. Used to remove suspended solids and sediments from water and extend the service life of equipment.

2. Drinking water treatment. It can effectively remove bacteria, viruses, organic pollutants, etc., and improve the safety of drinking water.

3. Wastewater treatment. As a pretreatment or advanced treatment step, suspended solids and colloidal substances are removed from wastewater.

4. Cooling water treatment. Prevent scaling and corrosion of cooling towers and other cooling equipment.

5. Agricultural irrigation. Improve the utilization of water resources and protect crops from pollutants.

Precautions for purchase

1. Filtration accuracy. Choose the appropriate filtration accuracy according to actual needs to ensure that the water quality meets the requirements.

2. Filtration area. Select the appropriate filtration area according to the flow demand to meet the production demand.

3. Material. When purchasing, the corrosion resistance and wear resistance of the filter should be considered, and the appropriate material should be selected.

4. Degree of automation. Choose a filter with a higher degree of automation according to actual needs to reduce labor costs.

5. Brand reputation. Choose a brand with a good reputation and reputation to ensure the quality of the filter and after-sales services.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
