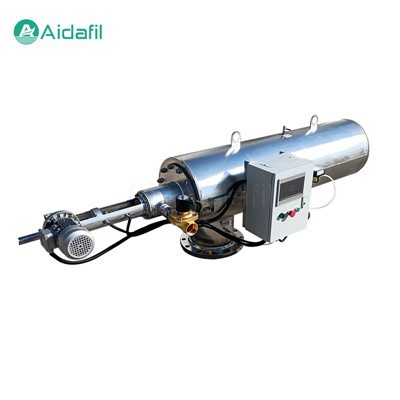

Flexible Control Automatic Sucking Type Self-Cleaning Filter

The Flexible Control Automatic Sucking Type Self-Cleaning Filter is a high-efficiency filtration device, mainly used to remove suspended matter and particulate matter in water, reduce turbidity, and thus purify water quality. The core part of this filter is a filter screen, which can directly intercept impurities in the water. When the water passes through the filter screen, the impurities will be intercepted on the inner wall of the filter screen, and the clean water will flow out from the water outlet. As impurities accumulate on the inner wall of the filter screen, the pressure difference between the inlet and outlet of the filter will gradually increase. When the preset value is reached or the predetermined cleaning time is reached, the filter will start the self-cleaning process.



Working principle

Our Flexible Control Automatic Sucking Type Self-Cleaning Filter adopts the sucking self-cleaning technology. A filter screen and a cleaning mechanism are arranged in the body. When the water flows through the filter screen, the dirt is retained through the micropores, and the purified water will continue to flow into the system, while accumulating a certain amount of dirt. When the filter screen is blocked to a certain extent, the cleaning device starts to work. The cleaning head cleans from the inside to the outside, sucks the blocked dirt away, and discharges it through the sewage pipe, allowing the filter to continue working, thus realizing the real-time cycle of filtration and cleaning.



Features

1. High-efficiency purification. The suction type self-cleaning filter is filtered with a multi-layer stainless steel mesh, which can effectively retain a variety of pollutants and suspended solids, and the filtration accuracy can reach more than 5 microns.

2. Automatic cleaning. No manual maintenance is required, the filter will automatically start the cleaning device according to the pressure difference, and the pressure difference can be set by the equipment personnel according to the actual situation. The cleaning frequency, water consumption and air consumption current of the catalytic converter can meet the requirements of various application fields.

3. Energy conservation. The suction type self-cleaning filter uses energy-saving motors and frequency converters, reducing the energy consumption during the start-stop process and maximizing energy cost savings.

4. Environmental protection and water saving. The entire filtration and cleaning process does not require any chemicals and solvents, does not cause pollution to the environment at all, and has a long service life, which not only reduces equipment maintenance costs, but also reduces water waste.



Application field

The Flexible Control Automatic Sucking Type Self-Cleaning Filter is widely used in metallurgy, coal, electric power, petrochemical, pharmaceutical, textile, paper, food and beverage, facility agriculture, municipal utilities, and environmental protection water treatment industries.



In the coal industry, the sucking type self-cleaning filter can be used for coal gangue sewage treatment and recycling. In the textile industry, it is often used for the treatment of production wastewater to meet wastewater discharge standards. In the papermaking industry, the filter is mainly used to filter impurities such as glue and fiber to ensure the quality of papermaking. In the environmental protection industry, the sucking type self-cleaning filter can be used in drinking water, groundwater and urban sewage treatment and other fields to achieve the purpose of solving water resources problems and protecting the environment.



Parameters

Material : Carbon steel, stainless steel, alloy steel

Operating temperature : -50°C~200°C

Filtration rating available : 20 micron to 2000 micron & more

Nominal pressure : PN16

Self-cleaning control mode : Pressure gauge control / time control / manual operation

Power : 380V/50Hz or customized

Control power supply : 220V/50Hz or customized

Self-cleaning time : 10-60 sec

Transport package : Wooden box



Installation

When installing the suction type self-cleaning filter, pay attention to the following points:

1. Installation direction. Ensure the correct installation direction of the filter and follow the instructions in the equipment manual or the guidance of technical personnel.

2. Connection method. Select the appropriate connection method based on the size and material of the pipeline, such as flange connection, threaded connection, etc.

3. Blowdown system. Ensure that the blowdown system is unobstructed to avoid equipment failure due to poor blowdown.

4. Electrical wiring. Follow electrical wiring specifications to ensure the safe operation of the equipment.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
