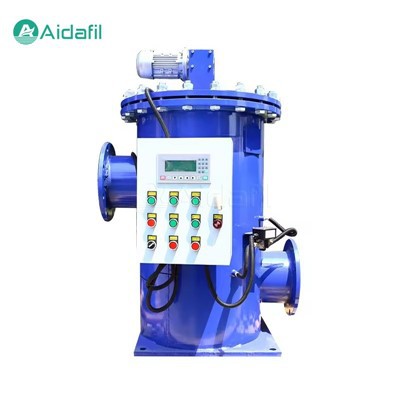

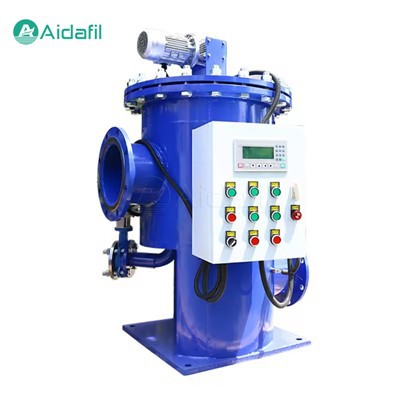

Water Filtration Use Auto Backwash Filter

The core working principle of the Water Filtration Use Auto Backwash Filter is to intercept and separate impurities in water through the filter medium. When water enters the filter from the inlet, it will pass through the filter screen or other filter media, the impurities are trapped, and the clean water flows out from the outlet. As the filtration process continues, impurities will gradually accumulate on the filter medium, causing the pressure of the filter to gradually increase. When the pressure reaches the set value, the backwash process is automatically triggered.



In the backwashing process, by switching the direction of the water flow, the water flow enters the filter from the outlet in the opposite direction, and the impurities accumulated on the filter medium are washed away, and the impurities are discharged from the sewage outlet. The backwashing process is usually fast and efficient, which can restore the filtration performance of the filter in a short time and ensure the continuous and stable operation of the system.



Structural composition

1. Filter tank

The filter tank is the main part of the auto backwash filter, usually made of high-strength materials, such as stainless steel, carbon steel, etc., to withstand water pressure and ensure the stability of the equipment. The tank body is equipped with filter media and related support structures.

2. Filter media

Common filter media include filter screens, filter elements, etc. Filter screens can be selected with different pore sizes and materials according to needs to adapt to different water quality and filtration requirements. Filter elements are usually made of fibrous materials, which have higher filtration accuracy and dirt holding capacity.

3. Control system

The control system is a key part of the automatic backwash filter, which is responsible for monitoring the pressure, flow and other parameters of the filter, and automatically triggering the backwash process according to the set conditions. The control system usually adopts intelligent design and has functions such as automatic adjustment and fault diagnosis.

4. Sewage device

The sewage discharge device is used to discharge the sewage that carries impurities during the backwashing process, usually including sewage valves, sewage pipes, etc. The sewage valve can be automatically opened and closed according to the instructions of the control system to ensure the timely discharge of sewage.

5. Inlet and outlet valves

The inlet and outlet valves are used to control the inflow and outflow of water, ensuring that the water flow direction is correct during normal operation and backwashing of the filter.



Technical parameters

Filtration precision	20 - 400 microns
System working pressure	0.2 - 1.0 Mpa
Water pressure required for backwashing	≥0.18 Mpa
Medium temperature	<60 degrees centigrade
Power supply voltage	AC 220V 1A
Control output voltage	DC 24V 1A per channel
Control mode	Differential pressure, timing, manual
Pipe material	Carbon steel, stainless steel, HDPE, etc.



Main features

1. High degree of automation

The water filtration use auto backwash filter adopts an advanced control system, which can realize functions such as automatic monitoring and automatic backwashing without manual intervention, greatly reducing labor intensity and operating costs.

2. High filtration accuracy

By selecting the appropriate filter medium, high-precision filtration can be achieved, effectively removing suspended solids, particulate matter, colloids and other impurities in the water, and ensuring that the effluent quality meets the requirements.

3. High backwashing efficiency

The fast and efficient backwashing process can clean the impurities on the filter medium in a short time, restore the filtration performance of the filter, and reduce the system downtime caused by backwashing.

4. Wide range of adaptations

The auto backwash filter is suitable for a variety of water quality and working conditions, and can handle different types of water such as industrial water, domestic water, and sewage, and can adapt to complex operating environments such as high flow and high pressure.

5. Easy maintenance

The filter is simple in structure and easy to maintain. The filter medium is usually easy to replace and clean, and the control system also has self-diagnosis and alarm functions, which is convenient for timely detection and resolution of problems.



Application field

1. Industrial sector

In industrial production, auto backwash filters are widely used in circulating water systems, cooling water treatment, industrial wastewater treatment, and other fields to effectively remove impurities from water, protect the normal operation of equipment, and improve production efficiency and product quality.

2. Municipal sector

In municipal water supply and wastewater treatment, auto backwash filters can be used for pretreatment, advanced treatment, etc., to improve water quality and ensure water safety and environmental quality for residents.

3. Agriculture

In agricultural irrigation, auto backwash filters can remove sediment, impurities, etc. from water, prevent clogging of sprinklers, and improve irrigation efficiency and effectiveness.

4. Other fields

Auto backwash filters can also be applied to swimming pool water treatment, landscape water purification, food and beverage processing, and other fields to meet the water quality requirements of different industries.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
