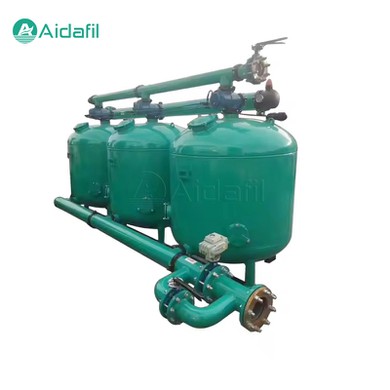

Agricultural Irrigation Use Quartz Sand Filter

In the realm of agricultural water management, ensuring the quality and efficiency of irrigation systems is paramount for optimal crop production. One such innovation that has significantly contributed to this field is the quartz sand filter.



Our agricultural irrigation use quartz sand filter is a device designed to purify water intended for agricultural use. It stands out for its ability to efficiently remove impurities from irrigation water, thereby enhancing the overall health and productivity of crops. The agricultural irrigation use quartz sand filter primarily consists of a filtration unit filled with quartz sand, which acts as the medium for removing suspended solids, bacteria, and other contaminants from the water. The filter operates on the principle of gravity flow, where the impure water enters the top of the filter and exits through the bottom as clean water.



Working Principle

As the impure water passes through the quartz sand layer, the larger particles are trapped by the sand grains, while the smaller ones are removed through a process called straining. Additionally, the quartz sand provides an ideal environment for beneficial bacteria to thrive, which further aids in breaking down organic matter and reducing the presence of harmful pathogens.



The filter's design ensures that the water flow rate is optimized for maximum efficiency. The flow rate is controlled by a valve located at the bottom of the filter, which allows the user to adjust the rate based on the specific needs of the irrigation system. This feature not only improves the filter's performance but also extends its service life.



Features

1. High Filtration Precision

The quartz sand used in the filter has a fine particle size, enabling effective filtration of small particles, sediments, and suspended solids.

2. Large Filtration Area

This provides a sufficient surface area for water to pass through, enhancing the filtration efficiency.

3. Stable Physical and Chemical Properties

Quartz sand is chemically inert and stable, ensuring long-term reliable performance.



Advantages

1. Efficient Filtration

The quartz sand filter can effectively remove a wide range of contaminants, improving the quality of irrigation water.

2. Low Maintenance Requirements

With proper maintenance, the quartz sand filter has a long service life and relatively low maintenance costs.

3. Stable Operation

The quartz sand filter can operate stably under different water quality and flow conditions.

4. Cost-Effective

Compared to other filtration methods, the quartz sand filter offers a cost-effective solution for irrigation water treatment.



Parameters

Working pressure	0.05 ~ 1.0 MPa
Working temperature	0 ~ 40°C
Flow	0.5 m3/h ~ 140 m3/h
Control mode	Automatic or manual
Dimension	ф173 ~ ф3800
Filtering speed	8 ~ 20 m/h
Material	Q235 rubber / phenolic epoxy resin / 304, 316L
Backwash strength	12 ~ 15 L/s. m2
Filtering layer resistance	>0.05 MPa
Backwash duration	4 ~ 10 min
Final turbidity	≤3



Applications

The agricultural irrigation use quartz sand filter is versatile and can be used in various agricultural settings, including greenhouses, orchards, vegetable gardens, and large-scale farms. It is particularly suitable for areas where the water source contains high levels of impurities that could otherwise harm the crops or reduce the effectiveness of the irrigation system.



Benefits

One of the primary benefits of the agricultural irrigation use quartz sand filter is its ability to remove a wide range of impurities from the water. This includes suspended solids, bacteria, viruses, and even certain chemicals. By doing so, the filter helps prevent clogging of irrigation pipes and nozzles, thereby improving the overall distribution of water to the crops.



Another benefit of this filter system is its low maintenance requirements. The quartz sand used in the filter is highly durable and does not require frequent replacement. Additionally, the filter's simple design means that it can be easily cleaned and serviced, reducing downtime and ensuring continuous operation.



Installation and Maintenance

Installing an agricultural irrigation use quartz sand filter is relatively straightforward and can be completed by individuals with basic plumbing skills. The filter should be installed in a location that allows for easy access for maintenance and cleaning purposes. Once installed, the filter should be backwashed regularly to remove accumulated debris and restore its performance.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
