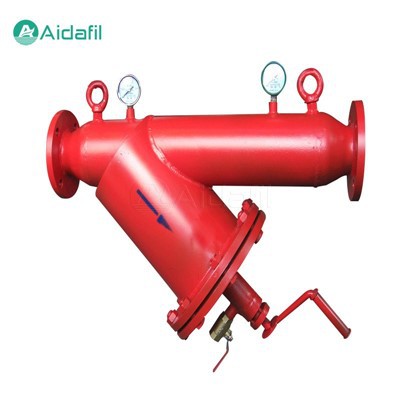

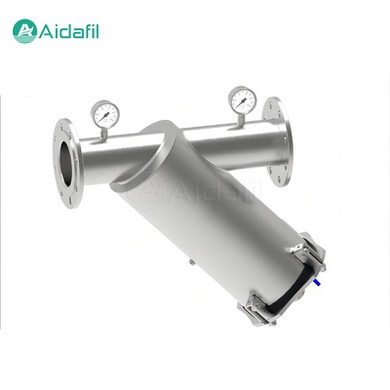

Hand Brush Y-Type Filter

The hand brush Y-type filter is developed based on the design concept of the fully automatic cleaning filter, which realizes effective cleaning at key process points by simplifying the structure. The core of this filter is its unique Y-type design, which allows liquids to be cleaned by a simple manual operation while filtering. It features the perfect combination of efficient cleaning and convenient operation.



The advantages of Y-shaped design

--- Filtration and cleaning in parallel. The Y-shaped design allows the filter to be cleaned without interruption, which greatly improves production efficiency and avoids equipment downtime due to cleaning.

--- Compact and easy to install. The Y-type filter is relatively simple in structure, which not only facilitates installation, but also saves valuable process space.



Wedge filter with elastic bristles

--- Wedge filter screen. The structural design of the wedge filter screen allows impurities to be effectively trapped during filtration, while being easily removed by bristles during cleaning.

--- Elastic bristles. The bristles are made of corrosion-resistant and aging-resistant inorganic materials to ensure good elasticity under various working conditions, thus effectively removing dirt from the filter.



Cleaning process and operation method

--- Cleaning steps

1. Observe the pressure difference. When the pressure difference between the inlet and outlet of the filter meets the process requirements, it means that the filter needs to be cleaned.

2. Open the drain valve. Open the drain valve to release the pressure in the filter.

3. Rotary handle. No need to disassemble any parts, just rotate the handle 3 to 4 times, and the built-in brush will remove impurities from the filter screen.

4. Sewage discharge. Impurities are discharged from the sewage valve with the liquid to complete cleaning.



--- Operation points

1. No need to cut off flow. The cleaning process can be carried out while the equipment is running normally to ensure the continuity of production.

2. Easy operation. Only one person can easily complete the entire cleaning process, reducing labor costs.



Material and durability

--- High quality materials

1. Premium Carbon Steel Housing. Provides a sturdy structure that resists high pressure and corrosive environments.

2. Stainless steel components. Stainless steel brushes and brush holders, as well as wedge filters, ensure stability and durability under long-term use.



--- Corrosion resistance and aging resistance

1. Adaptable to a variety of media. Whether it is water, oil or other chemical liquids, the filter can effectively handle it.

2. Long life design. Considering the complexity of the production environment, the key components of the filter are designed with anti-aging properties, which extends the service life.



Application scope and advantages

--- A wide range of application scenarios

Hand brush Y-type filters are suitable for liquid filtration in various industrial fields, such as chemical, pharmaceutical, food processing, oil and gas industries.

--- The obvious advantage

1. Efficient filtration. The wedge-shaped filter and elastic bristle design make for high filtration efficiency and good cleaning effect.

2. Easy maintenance . Simple structure, easy maintenance, reducing failure rate and maintenance time.

3. Energy saving and consumption reduction. Since it can be cleaned online, energy waste caused by off-flow cleaning is avoided.



Technical parameters

Medium temperature	300 °C
Working differential pressure	2KG
Material	Carbon steel, Stainless steel
Connection	Flange
Flow direction	One way
Sphere of application	Liquid filtration
Suitable medium	Water
Pressure environment	Ordinary pressure



With its unique design, high-quality materials and easy operation, the hand brush Y-type filter provides a reliable solution in the field of industrial liquid filtration. It not only increases production efficiency, but also reduces the cost of operation and maintenance, making it an ideal filtration equipment in modern industry.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
