High-Customizability Basket Filter

In the industrial production process, the purity of the liquid is crucial to ensure the normal operation of the equipment, improve the quality of the product and prolong the life of the equipment. In this context, the basket filter has become an indispensable equipment in many industries due to its high efficiency and convenience.

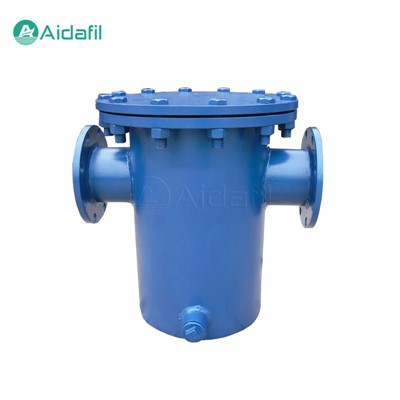

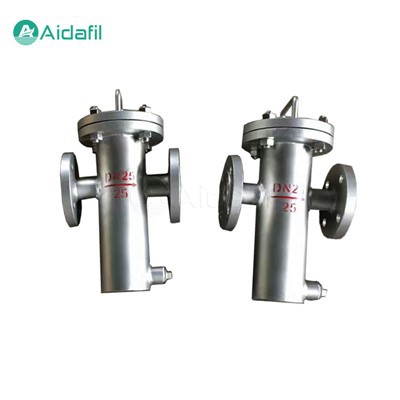

As the right-hand man to protect the purity of the fluid, our high-customizability basket filter is mainly composed of filter basket, filter screen, inlet and outlet flange, fastener and other parts. The filter basket is the main body of the filter, usually made of stainless steel, which has good corrosion resistance and strength. The filter screen is the core component of the filter, and its specifications and materials vary according to the different filtration requirements. When the liquid enters the filter through the inlet flange, the solid particles will be blocked in the filter basket by the filter screen, and the clean liquid will flow out through the filter screen and be discharged from the outlet flange.



Performance characteristics

1. High-efficiency filtration

The basket filter adopts a precision filter design, which can effectively remove solid particles in the liquid and ensure the purity of the fluid. At the same time, the filter specifications can be customized according to actual needs to meet the filtration requirements of different industries.

2. Simple structure

The structure of the basket filter is relatively simple, easy to install and maintain. The filter basket adopts a removable design, which is convenient for users to clean and replace the filter screen.

3. Corrosion resistance

Since basket filters are often used to handle various chemical liquids, their materials are usually made of corrosion-resistant materials such as stainless steel to ensure the stable operation of the equipment in harsh environments.

4. Easy maintenance

When excessive impurities accumulate inside the filter, the user only needs to remove the filter basket for cleaning. In addition, the filter can also be replaced as needed, greatly reducing maintenance costs.



Basket filter application field

Our high-customizability basket filters are widely used in petroleum, chemical, pharmaceutical, food and other industries to provide effective filtration protection for various fluid media. In the petroleum industry, the basket filter can be used to protect key equipment such as compressors and pumps from solid particles; in the chemical industry, it can be used to filter various chemical liquids to ensure the smooth progress of the production process; in the pharmaceutical and food industries, basket filters can be used to ensure the purity and safety of products.



Technical Data

Material of housing	Cast iron, carbon steel	Stainless steel
Material of strainers	Stainless steel
Material of seal components	Oil-resistant asbestos, flexible graphite, PTFE
Working temperature	-30 ~ +380°C	-80 ~ +450°C
Filtration precision	10 ~ 300 meshes
Nominal pressure	0.6 ~ 6.4 Mpa (150Lb ~ 300Lb)
Connection	Flange, welding



Selection and installation of basket filter

1. Selection

When selecting a type, users need to choose the appropriate filter basket specification and filter material according to the requirements of fluid properties, flow rate, temperature, and filtration accuracy. At the same time, factors such as the pressure resistance and corrosion resistance of the equipment need to be considered.

2. Installation

The installation of the basket filter is relatively simple, and the user only needs to connect the inlet and outlet flanges to the pipeline. During the installation process, it is necessary to ensure the stability and sealing of the equipment to prevent leakage.



Maintenance and maintenance of basket filter

1. Regular cleaning

Users need to regularly clean the basket filter to remove impurities and dirt in the filter basket. When cleaning, the filter basket can be taken out and rinsed with water or special cleaning agent.

2. Replace the filter

When the filter is damaged or the filtration accuracy decreases, the user needs to replace the filter in time. During the replacement process, it is necessary to ensure that the specifications and materials of the new filter are consistent with the original filter to ensure the filtration effect.

3. Check the tightness

Users also need to regularly check the tightness of the equipment to ensure that the connection between the inlet and outlet flanges and the filter basket is tight and free of leakage.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
