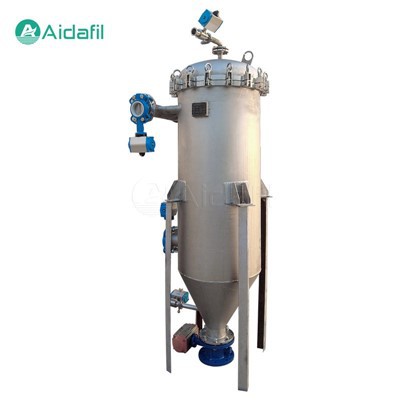

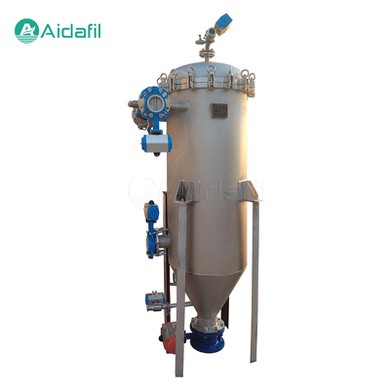

Small-Size High-Efficiency Candle Filter

The small-size high-efficiency candle filter is a type of pressure vessel that uses vertically arranged filter elements for automatic intermittent filtration. This kind of filter is commonly used for clarification of liquid with small amounts of solid particles. It has unique structural features, such as compact design, high processing capacity, and multiple methods of dealing with filter cakes.



Product Specifications

Working pressure	Up to 10 bar (g)
Operating temperature	Maximum 250°C
Solid content (suspension)	Up to 10% (weight)
Cake thickness	Maximum 30 mm
Particle size	Minimum 0.5 μm
Filtration capacity - Suspension	0.1 - 10m3 /m2 h
Filtration capacity - Dry solid	-
Effective filtration area (total)	1- 150 m2



Understanding the Candle Filter Technology

The small-size high-efficiency candle filter operates within a pressure vessel, featuring vertically arranged filter elements that work automatically in an intermittent fashion. It is primarily utilized for clarifying liquids containing a low concentration of solids. This technology is renowned for its efficiency in removing impurities while maintaining a compact footprint.



Key Features and Advantages

1. Compact design. The device boasts a compact structure, making it ideal for installations where space is limited.

2. High capacity. Despite its small size, the candle filter offers high throughput, ensuring efficient filtration processes.

3. Dry cake discharge. The filter facilitates the discharge of dry filter cakes, minimizing downtime and enhancing productivity.

4. Versatile cake handling. It supports various methods for handling filter cakes, providing flexibility in operation.

5. Unique structural design. The equipment features a unique structural design, optimizing performance and reliability.

6. Cost-effective filtration. With low operating costs, the candle filter offers a cost-effective solution for industrial filtration needs.

7. User-friendly operation. Easy to operate and maintain, the filter system streamlines filtration processes, reducing labor requirements.

8. Environmentally friendly. The system operates without causing environmental pollution, aligning with sustainability goals.



Innovative Design Elements

1. Integrated multi-tube filter elements. The filter system incorporates multiple tube-style filter elements within a single unit, maximizing filtration surface area.

2. Sealed operation. It ensures sealed operation, minimizing the risk of leaks and contamination.

3. Versatility in application. The system is highly versatile, accommodating a wide range of liquid filtration applications.

4. Enhanced particle retention. With its large filtration surface area, the candle filter effectively captures particles, ensuring high filtration efficiency.

5. Reverse cake blowing. The filter system facilitates easy removal of filter cakes through reverse blowing, optimizing filter performance.

6. Automated operation. Featuring automation capabilities, the filter system operates seamlessly with minimal manual intervention.

7. Broad applications. From pharmaceuticals to chemical processing, the candle filter finds application across diverse industries, underscoring its versatility and utility.



Applications in Various Industries

1. Chemical processing. The candle filter is used for clarifying chemical solutions and removing impurities in chemical processing plants.

2. Pharmaceuticals. In the pharmaceutical industry, the filter system ensures the purity of drug formulations by removing contaminants.

3. Food and beverage. It plays a crucial role in the food and beverage industry, facilitating the filtration of liquids for quality assurance.

4. Oil and gas. From refining to petrochemical processes, the candle filter contributes to the purification of oil and gas products.

5. Water treatment. Municipalities and industrial facilities utilize the filter system for water treatment, ensuring the removal of suspended solids and impurities.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
