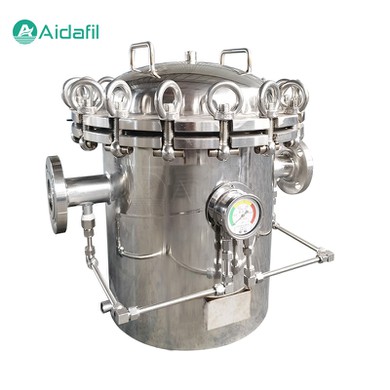

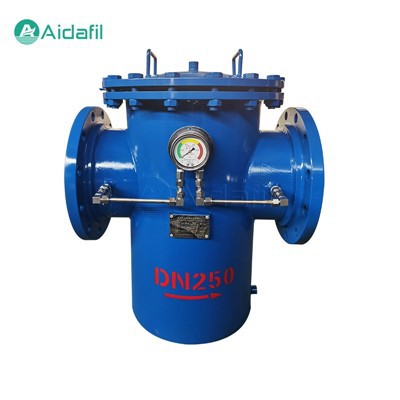

High Quality Basket Filter

Our high quality basket filter represents a crucial component in many industrial processes where removing solid impurities from liquid substances is essential. This type of filter is known for its efficient filtration capability and ease of maintenance.



The high quality basket filter consists of several key components that work together to ensure effective filtration. These components include:

1. Inlet Pipe: The inlet pipe is an essential part of the filter system, through which the liquid substance flows into the filter.

2. Outlet Pipe: The outlet pipe is responsible for carrying the filtered liquid out of the filter unit after the filtration process is completed.

3. Filter Basket: The filter basket is the main component where solid impurities are trapped during the filtration process. It is designed to allow the clean liquid to pass through while retaining solid particles.

4. Flange: The flange is used to connect the filter unit to the pipeline system securely.

5. Flange Cover: The flange cover is positioned on the top side of the filter basket to ensure a tight seal and easy access for maintenance.

6. Fasteners: Various fasteners such as bolts and nuts are used to secure and assemble the different components of the filter system.



Key parameters

Material of housing	Cast iron, carbon steel	Stainless steel
Material of strainers	Stainless steel
Material of seal components	Oil-resistant asbestos, flexible graphite, PTFE
Working temperature	-30 ~ +380°C	-80 ~ +450°C
Filtration precision	10 ~ 300 meshes
Nominal pressure	0.6 ~ 6.4 Mpa (150Lb ~ 300Lb)
Connection	Flange, welding



Working Principle of the High Quality Basket Filter

The working principle of the high quality basket filter is relatively simple yet highly effective. When the liquid substance enters the filter through the inlet pipe, it flows into the filter basket. The filter basket is designed with a mesh or strainer that traps solid impurities present in the liquid, allowing only the clean fluid to pass through. The filtered liquid then exits the filter unit through the outlet pipe, ready for further processing or use.



Advantages of the High Quality Basket Filter

The high quality basket filter offers several advantages that make it a preferred choice in many industrial applications. Some of the key advantages include:

1. Efficient filtration. The filter basket of the high quality basket filter effectively traps solid impurities, ensuring a high level of filtration efficiency.

2. Easy maintenance. The design of the filter system allows for easy access to the filter basket for cleaning and maintenance. This ensures minimal downtime during maintenance procedures.

3. Versatility. The high quality basket filter can be used across a wide range of industries and applications where the removal of solid impurities from liquids is required.

4. Durable construction. This type of filter is usually made from high-quality materials that are corrosion-resistant, ensuring long-term durability and performance.

5. Cost-effectiveness. The high quality basket filter is a cost-effective solution for filtration needs due to its efficient operation and low maintenance requirements.



Applications of the High Quality Basket Filter

The high quality basket filter finds applications in various industries where the removal of solid impurities from liquids is essential. Some common applications include:

1. Oil and gas industry. In the oil and gas sector, the high quality basket filter is used to remove contaminants and solid particles from fuel oils, lubricants, and hydraulic fluids.

2. Chemical industry. Chemical processing plants utilize the high quality basket filter to purify chemicals and solvents before further processing.

3. Food and beverage industry. In the food and beverage sector, these filters are employed to ensure the quality and purity of liquid products such as juices, oils, and syrups.

4. Pharmaceutical industry. Pharmaceutical manufacturers use the high quality basket filter to remove impurities from liquid medications and ingredients.

5. Water treatment plants. Water treatment facilities use these filters to remove sediment and impurities from water sources before distribution.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
