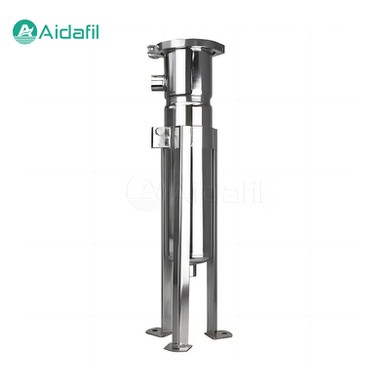

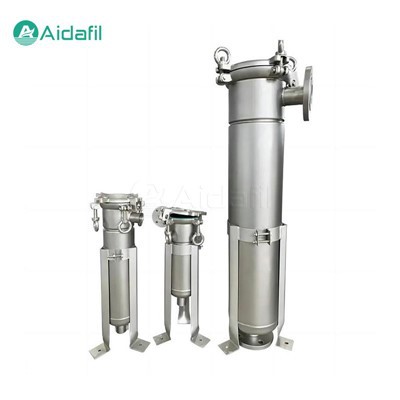

Side-Inlet Bottom-Outlet Single Bag Filter

The side-inlet bottom-outlet single bag filter is a kind of filtration equipment that adopts side-in-bottom-out mode. Its core components include metal mesh basket, legs, single filter bag and tank body. The liquid enters from the water inlet on the side, passes through the filter bag supported by the metal mesh basket, and is finally discharged from the water outlet at the bottom.



Structural composition

The side-inlet bottom-outlet single bag filter is mainly composed of the following parts:

1. Metal shell. As the support and protective structure of the entire filter, the metal shell is usually made of stainless steel or carbon steel, which has good corrosion resistance and strength.

2. Filter bag. The side-inlet bottom-outlet single bag filter contains one filter bag inside, which is usually made of polypropylene (PP), polyester (PE), nylon and other materials, with good filtration performance and corrosion resistance. The pore size of the filter bag can be customized according to needs to meet the requirements of different filtration accuracy.

3. Support basket. The support basket is used to support the filter bag and prevent the filter bag from being deformed or damaged during the filtration process. The support basket is usually made of stainless steel and has sufficient strength and stability.

4. Inlet and outlet. The inlet and outlet are used to connect filters and piping systems to achieve the inflow and outflow of liquids. The inlet is usually located on the side of the filter, while the outlet is located at the bottom of the filter.

5. Sealing and support structures. Sealing and support structures are used to ensure the tightness and stability of the filter, preventing liquid leakage and bag damage.



How it works

The working principle of the side-inlet bottom-outlet single bag filter is relatively simple. When the liquid to be filtered enters the filter through the inlet pipe, the liquid first enters the area where the filter bag is located. Under the pressure of the liquid, the liquid penetrates the tiny aperture of the filter bag, trapping impurities such as solid particles and suspended solids on the surface of the filter bag. The cleaning liquid filtered by the filter bag flows out of the outlet pipe, achieving the purpose of solid-liquid separation.



Technical parameters

Filtering area	0.1-0.5m2
Operating pressure	1.0Mpa
Filter cylinder diameter	219mm
Flow rate	40T/H
Materials	304, 316 stainless steel
Filtering accuracy	0.1-100μm
Inlet & outlet caliber	DN25-DN80



Characteristics

The side-inlet bottom-outlet single bag filter has the following performance characteristics:

1. High filtration efficiency. Due to the large filtration area and high filtration accuracy of the filter bag, the filter can achieve efficient solid-liquid separation.

2. Easy to operate. The filter has a compact structure and simple operation, making it convenient and quick to replace the filter bag, reducing the maintenance cost for users.

3. Wide range of applications. The filter is suitable for a variety of industries and fields, such as chemical, pharmaceutical, food and beverage, environmental protection, etc., to meet the filtration needs of different liquids.

4. Good sealing. The filter uses high-quality sealing materials and structures to ensure that the liquid does not leak during the filtration process, ensuring the safety and hygiene of the working environment.

5. Environmental protection and energy saving. The filter does not require additional energy consumption during the filtration process, and can effectively reduce the discharge of wastewater and waste, meeting environmental protection requirements.



Scope of application

The side-inlet bottom-outlet single bag filter is widely used in the following fields:

1. Chemical industry: used for the filtration and purification of chemical raw materials, intermediates, and products.

2. Pharmaceutical industry: used for stock solution filtration, sterile water preparation, etc. in the pharmaceutical production process.

3. Food and beverage industry: used for filtration and clarification of beverages, beer, mineral water, etc.

4. Environmental protection industry: used for filtration and separation in environmental protection projects such as wastewater treatment and wastewater treatment.



Use and maintenance

--- Precautions for use:

Before use, check the tightness of the filter and the integrity of the filter bag.

Select the appropriate filter bag according to the nature and particle size of the liquid to be filtered.

Regularly check the use of the filter bag and replace damaged or blocked filter bags in a timely manner.

Be careful to control the pressure and flow rate of the filter to avoid exceeding the tolerance range of the equipment.

--- Maintenance method:

Regularly clean the filter housing and piping system to maintain the cleanliness of the equipment.

When replacing the filter bag regularly, follow the instructions in the manual to ensure the correct installation and sealing of the filter bag.

Regularly check the tightness of the filter and the stability of the support structure, and repair or replace damaged parts in a timely manner.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
