Versatile Long-Life Security Filter

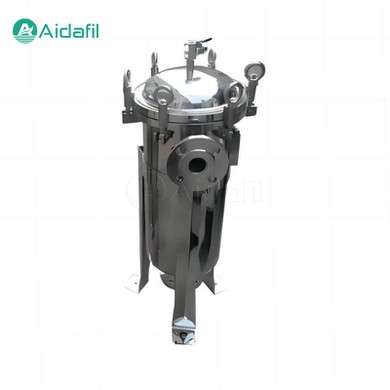

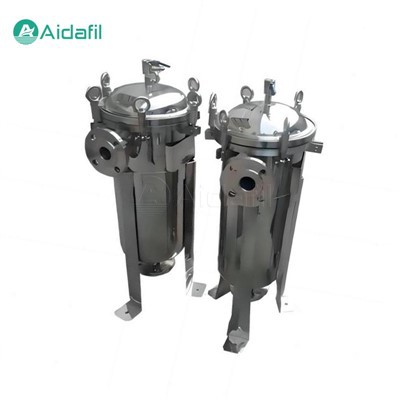

The versatile long-life security filter is mainly composed of the shell, the filter element, the inelt and outlet and other parts. When the liquid containing fine substances passes through the security filter, the filter element will intercept these substances, so that the clear liquid flows out from the outlet. According to different filtration accuracy requirements, the filter element can choose materials with different pore sizes, such as stainless steel mesh, glass fiber, meltblown polytetrafluoroethylene, etc. These filter elements have good corrosion resistance and mechanical strength, which can effectively filter out various fine particles and ensure the purity of water quality.



Characteristics of security filters

1. Efficiency. The versatile long-life security filter can quickly remove tiny particles from liquids, improve the purity of water quality, and provide high-quality water for subsequent membrane filtration and other processes.

2. Stability. The versatile long-life security filter can maintain a stable filtration effect during long-term operation, and is not easily affected by environmental factors such as temperature and pressure.

3. Economical. Compared with other complex water treatment equipment, the versatile long-life security filter has a simple structure, convenient maintenance, and low cost of replacing the filter element, providing high cost performance.

4. Strong adaptability. The versatile long-life security filter can be customized with different specifications and materials according to different industrial requirements to adapt to various complex water quality conditions.



Parameters

Filter element quantity	3-123
Material	Cylindrical shell, 304 or 316L stainless steel; Equipped with multiple filter elements
Use	Used to filter out fine substances after multi-media filtration (such as tiny quartz sand, activated carbon particles, etc.)
Filter flow	3-246m3/h



3 filter elements	3 m³/h
5 filter elements	5-10 m³/h
7 filter elements	7-14 m³/h
12 filter elements	12-24 m³/h
20 filter elements	40 m³/h
25 filter elements	50 m³/h
30 filter elements	60 m³/h
36 filter elements	72 m³/h
42 filter elements	90 m³/h
51 filter elements	102 m³/h
60 filter elements	120 m³/h
72 filter elements	144 m³/h
123 filter elements	246 m³/h



The application field of security filters

1. Food industry

In the production process of beverages, alcohol, dairy products, etc., security filters can ensure the purity of raw water and improve product quality and taste.

2. Pharmaceutical industry

The pharmaceutical process requires extremely high water quality, and security filters can effectively remove particles and microorganisms from the water to ensure the safety and effectiveness of medicines.

3. Electronics industry

The production of electronic products such as semiconductors and integrated circuits has strict requirements on water quality. Security filters can ensure the preparation of ultrapure water and improve product performance and yield.

4. Chemical industry

A variety of chemical substances are involved in the chemical production process. Security filters can prevent impurities from entering the reaction system and ensure the smooth progress of chemical reactions.

5. Petroleum industry

Wastewater generated during oil extraction and refining requires rigorous treatment before it can be discharged. Security filters can be used as pretreatment equipment to reduce the difficulty and cost of subsequent treatment.



Maintenance and maintenance of security filters

1. Regular inspection

Periodically inspect the appearance of the security filter to ensure that the shell is not damaged and the filter element is not blocked.

2. Replace the filter element

According to the usage and water quality changes, replace the filter element in a timely manner to ensure the filtration effect and prolong the service life of the equipment.

3. Cleaning equipment

Regularly clean import and export pipelines and connections to prevent dirt accumulation from affecting the normal operation of the equipment.

4. Record maintenance

Establish a sound maintenance record system, record the content and time of each maintenance in detail, and provide a basis for the maintenance and replacement of equipment.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
