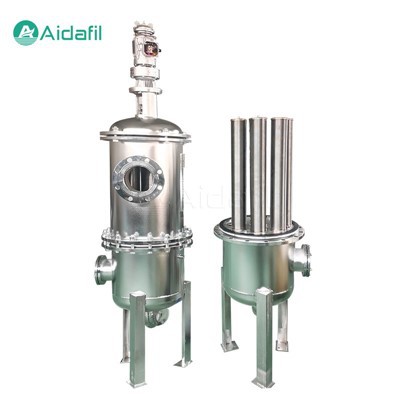

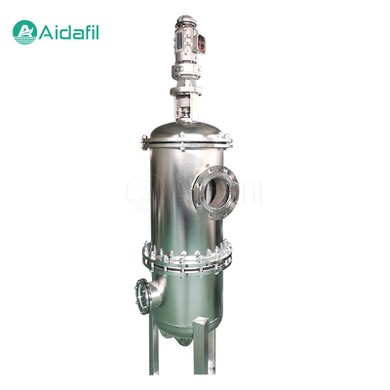

High Grade Automatic Backwash Filter

The high grade automatic backwash filter is a water treatment equipment used to remove suspended particles, sediment and other impurities from water. It uses the principle of backwash to remove dirt and impurities from the filter element through reverse water flow, thus maintaining the efficient operation of the filter. It is widely used in industry, agriculture, medicine, environmental protection and other fields, and is of great significance for improving production efficiency, ensuring product quality, reducing labor intensity, and reducing environmental pollution.



Technical Parameters

Filtration precision	20-400 microns
System working pressure	0.2-1.0Mpa
Backwash required water pressure	>=0.18Mpa
Medium temperature	<60 degrees Celsius
Power supply voltage	AC220V 1A
Control output voltage	DC24V 1A per channel
Control mode	Differential pressure, timing, manual
Pipe material	Carbon steel, stainless steel, HDPE, etc.



Working Process

The working process of the high grade automatic backwash filter is as follows:

- Filtration. Water flows into the filter through the filter element (usually a mesh or porous material). Suspended particles, sediments, and other impurities are captured by the filter element.

- Differential pressure monitoring. The filter has a built-in differential pressure switch or sensor to monitor the differential pressure on both sides of the filter element.

- Backwash trigger. When the pressure difference reaches the preset value, the pressure difference switch or sensor will trigger the backwash process.

- Backwash valve open. Backwash valve open, reverse water flow through the filter element, flushing away dirt and impurities.

- Discharge. The dirt and impurities washed down are discharged through the sewage outlet to the filter.

- Backwash valve closed. After the backwash process is completed, the backwash valve is closed and the filter resumes normal filtration operation.



Characteristic

1. High degree of automation

The automatic backwash filter can automate operations such as filtration, cleaning, and sewage discharge without manual intervention, greatly reducing labor intensity.

2. Good filtration effect

The filter screen is made of high-performance materials with high filtration accuracy and strength, which can effectively intercept solid particles, suspended solids and other impurities in the liquid.

3. Good cleaning effect

using a variety of cleaning methods, it can thoroughly clean the impurities on the filter screen to ensure the filtration effect of the filter screen.

4. Strong adaptability

The automatic backwash filter is suitable for applications with various liquids and different filtration accuracy requirements, such as industrial production, water treatment, agricultural irrigation, etc.

5. Stable operation

The automatic backwash filter adopts an advanced control system, providing stable and reliable operation with a low failure rate.

6. Energy saving and environmental protection

The automatic backwash filter can achieve circular cleaning, reduce water and energy consumption, and reduce environmental pollution.



Application

The application field of the high grade automatic backwash filter:

1. Industrial field

Used in liquid filtration in chemical, petroleum, pharmaceutical, food, beverage and other industries to ensure product quality and improve production efficiency.

2. Agriculture

Used in farmland irrigation, aquaculture, etc., to improve water quality and ensure the growth of crops and aquaculture products.

3. Pharmaceutical field

Used in pharmaceutical production, biological product production, etc., to ensure product quality and safety.

4. Environmental protection

Used in water treatment, waste liquid treatment, etc., to reduce pollutant emissions and protect the environment.

5. Other fields

Such as urban water supply, wastewater treatment, gas filtration, etc.



Advantage summary

The high grade automatic backwash filter offers the following advantages:

- Automated operation without human intervention

- High filtration efficiency to maintain clean water quality

- Low maintenance costs, saving operating expenses

- Durability, long service life



Maintenance

Regular maintenance includes:

- Check the filter element regularly for damage or blockage, and replace it as needed.

- Clean the sewage outlet: Ensure that the sewage outlet is unobstructed to discharge the dirt and impurities that have been washed down.

- Check the backwash valve: Make sure the backwash valve is working properly and adjust or replace as needed.

- Replace the filter element according to the manufacturer's recommendations to maintain optimum filter performance.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
