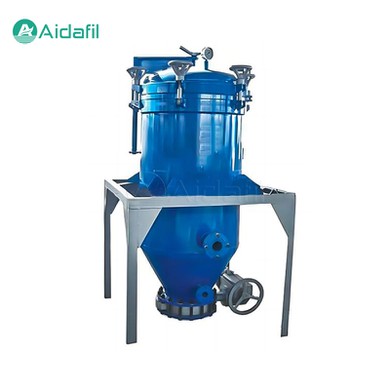

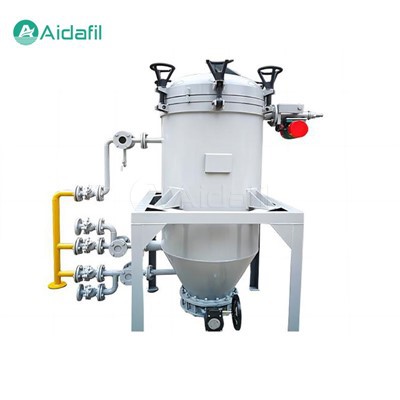

Fully Automatic Closed Working Leaf Filter

The fully automatic closed working leaf filter is an advanced filtration device that is world-renowned for its highly efficient, energy-saving, and fully automatic closed working mode. It is widely used in a number of industries, including but not limited to petroleum, coatings, pigments, food, beverage, pharmaceutical, grease, and chemical industries. It provides a precise clarification filtration scheme for fluid materials in these industries. The leaf filter is designed to achieve deep purification of liquids, while ensuring high efficiency and cleanliness during continuous production through its unique vibration slag removal function.



Working principle and structure

1. Double-sided filter plate

The core part of the leaf filter is its double-sided filter plate, which is made of multiple layers of fine metal mesh or synthetic materials, which can intercept tiny particles in the fluid. Fluid passes through one side of the filter plate, and solid impurities are trapped on the filter plate, so as to achieve the purpose of clarification and filtration.

2. Stainless steel closed cylinder

The stainless steel sealed cylinder forms the main body of the leaf filter, which provides a sealed space for the filtration process to prevent the intrusion of external pollutants, and also protects the operator from harmful substances. The design of the cylinder ensures that the material is not affected by the external environment during the filtration process, ensuring the quality of the final product is stable.

3. Vibrating slag removal system

The vibration slag removal system of the leaf filter is one of its major features. Through slight vibration, the solid impurities on the filter plate can be regularly shaken off, so that there is no need to stop frequently for manual cleaning, which greatly improves the production efficiency. At the same time, this design also reduces the work intensity of the operator and improves the safety of the working environment.



Application fields

1. Oil industry

In the petroleum industry, leaf filters can be used to filter refined lubricating oils, fuel oils, and other petroleum products, effectively removing mechanical impurities and gums, and improving the cleanliness and performance of the oil.

2. Food and beverage industry

In the food and beverage production process, leaf filters can be used to filter fruit juices, alcohol, edible oils, and other products to ensure that the products are clear, transparent, and meet food safety standards.

3. Pharmaceutical industry

In the pharmaceutical industry, the application of leaf filters can meet the strict requirements for purity and hygiene in the production process of medicines, ensuring the quality and safety of medicines.



Specifications

Model	Filtering area (m2)	Cylinder diameter (mm)	Inlet	Outlet	Overflow port	Slag outlet (mm)	Height (mm)	Weight (kg)
ADYP-4	4	550	DN50	DN80	DN40	300	2010	600
ADYP-8	8	700	DN50	DN80	DN40	400	2425	800
ADYP-10	10	800	DN50	DN80	DN40	400	2630	900
ADYP-15	15	900	DN50	DN80	DN40	400	2650	1100
ADYP-20	20	1100	DN50	DN80	DN40	400	3000	1500
ADYP-30	30	1200	DN50	DN80	DN40	500	3050	1750
ADYP-40	40	1300	DN65	DN80	DN50	500	3280	2100
ADYP-50	50	1400	DN65	DN80	DN50	600	3450	3000
ADYP-60	60	1500	DN65	DN80	DN50	600	3630	3100
ADYP-80	80	1600	DN65	DN80	DN50	700	3860	3600



Technical parameters and selection

When selecting a leaf filter, the following technical parameters should be considered:

- Filtration area

- Cylinder volume

- Maximum working pressure

- Design temperature

- Material compatibility

The correct selection is the key to ensuring the filtration effect and the service life of the equipment. It is recommended to choose according to the specific process requirements under the guidance of professional engineers.



Maintenance and upkeep

In order to ensure the long-term stable operation of the leaf filter, regular maintenance and maintenance is essential. This includes but is not limited to:

- Clean the filter plate

- Check seals and fasteners

- Lubricate moving parts

- Regular replacement of wearing parts

Following the manufacturer's operating manual and maintenance guidelines can effectively extend the service life of the equipment and reduce the failure rate.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
