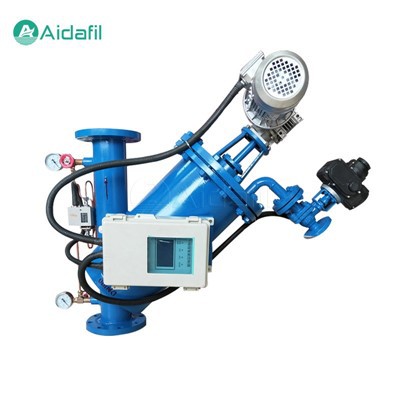

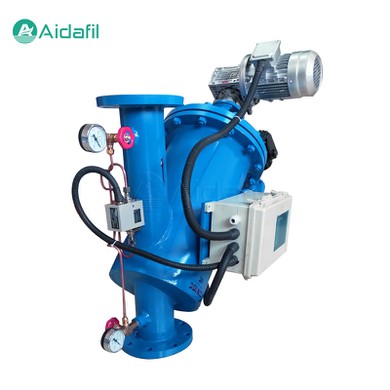

Impurity Removal Y-Type Self-Cleaning Filter

The Impurity Removal Y-Type Self-Cleaning Filter is a kind of high-efficiency filtration equipment. It is mainly used for filtration and purification work in liquid pipeline. The filter adopts advanced self-cleaning technology, which can realize fully automatic filtration, cleaning, regeneration and recycling processing.



Structure composition

The Impurity Removal Y-Type Self-Cleaning Filter is usually composed of the following parts:

1. Filter cylinder. Usually Y-shaped design, easy to observe the filter condition and easy to clean.

2. Filter screen. A key component for intercepting impurities in liquids, available in a variety of materials such as stainless steel and polypropylene.

3. Drain valve. Used to discharge impurities intercepted by the filter.

4. Control system. Including differential pressure switch, timer, PLC/PAC controller, etc., to control the self-cleaning process of the filter.

5. Import and export connection flange. Easy to connect with other pipeline systems.



Working principle

When untreated water or liquid enters the filter through the water inlet, the first thing it encounters is the filter screen inside the filter. The filter screen intercepts solid impurities in the liquid, and the clean liquid flows into the outlet of the filter through the filter screen and is then transported to the place of use. As the liquid continues to flow through the filter, the impurities on the filter screen will gradually accumulate, resulting in a pressure difference between the inlet and outlet of the filter.



When this pressure difference reaches a preset value, the pressure difference switch will be triggered, sending a signal to the control system. The control system then controls the sewage valve to open, allowing some liquid to flow back into the sewage pipe to clean the filter screen. During this process, the flow of liquid will not stop, so the Y-type self-cleaning filter can achieve uninterrupted water supply.



After the sewage is discharged, the control system closes the sewage valve and the filter resumes normal work. The whole cleaning process does not require manual intervention, which greatly reduces maintenance costs and labor intensity.



Parameters

Flow	20 - 3000 m3/h	Please contact our company. We will provide suitable models according to the filtration accuracy and impurity content.
Minimum working pressure	0.2MPa(g)
Maximum working pressure	1.6MPa(g)	Special requirements can be customized.
Inlet and outlet diameter	DN50 - DN700	Flange standard HG20592-97. Special requirements can be customized.
Working temperature	80°C	High temperature type can be customized
Filtration accuracy	100 - 3000 μm
Filter mesh material	304, 316L stainless steel
Housing material	Carbon steel or 304, 316L stainless steel
Motor power	380V, 50Hz, three phase



Advantages

1. High degree of automation. It can automatically clean the filter without manual involvement.

2. Intelligent monitoring. Monitor the degree of contamination of the filter through a differential pressure switch or timer, and start the cleaning process in a timely manner.

3. Uninterrupted water supply. The cleaning process does not affect the normal operation of the filter, ensuring a continuous supply of water.

4. High-efficiency filtration. It can effectively intercept various impurities in liquids and improve water quality.

5. Energy-saving and environmentally friendly. Compared with other types of filters, self-cleaning filters reduce water consumption and reduce energy consumption.

6. Easy maintenance. The filter is designed with an observation window, which makes it easy to observe the contamination of the filter screen, and at the same time, it is convenient to clean and replace the filter screen.



Application field

The Impurity Removal Y-Type Self-Cleaning Filter is widely used in the following fields:

1. Power industry. Used for filtration of condensate, feed water, make-up water, circulating water and other systems.

2. Petrochemical industry. Used for filtration of process water, cooling water, boiler feed water, and other systems.

3. Fine chemical industry. Used for filtration of various process liquids.

4. Food and beverage industry. Used for filtration of liquids such as syrups, juices, and beverages.

5. Automotive industry. Used for filtration in coating, electrophoresis, cooling, and other systems.

6. Metallurgical industry. Used for filtration of various water systems.

7. Paper industry. Used for the filtration of white water and clean water.

8. Pharmaceutical industry. Used for filtration of various process liquids.

9. Microelectronics industry. Used for filtration of high-purity water, chemical reagents, and other liquids.

10. Environmentally friendly water treatment. Used for filtration of circulating water, reused water, and advanced wastewater treatment systems.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
