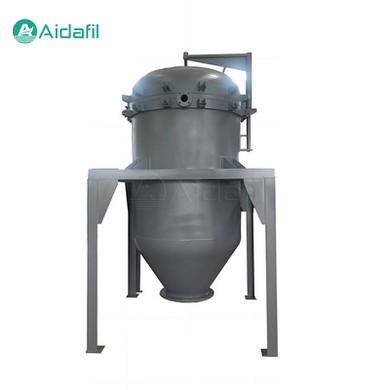

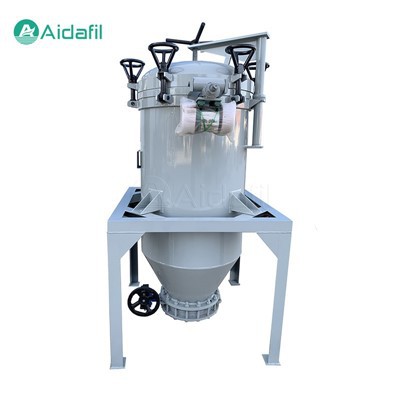

Precision-Filtration Leaf Filter

The precision-filtration leaf filter adopts a vibrating slag removal vertical design, which gives it a unique characteristic. It is like a precise "screening master", which can efficiently complete the precision filtration tasks of various fluid materials.



The working principle of the precision-filtration leaf filter is like a magical magic. After the fluid material to be filtered enters the stainless steel airtight cylinder, it is filtered through the double-sided filter plate. The micropores on the filter plate are like precise checkpoints, allowing only the substances that meet the requirements to pass through and intercepting impurities. The function of vibrating slag removal seems to add a boost to this magic, which can easily discharge the remaining impurities after filtration, ensuring the continuous and efficient progress of the filtration process.



Main features

1. Speaker of energy efficiency

The leaf filter is famous for its high efficiency and energy-saving characteristics. It can complete the filtration of a large number of materials in a short time, which greatly improves the production efficiency. At the same time, its energy-saving design also saves a lot of costs for enterprises, showing unique advantages in the industrial field that pursues efficiency.

2. Expert in precision filtration

As a precision clarification filter, the leaf filter performs well in terms of filtration accuracy. Whether it is the fine filtration of oil products in the oil industry or the strict requirements of product quality in the food and beverage industry, it can easily handle, ensuring that the output material meets the highest purity standards.

3. Guardians of Environmental Cleanliness

Environmental cleaning is an important concern of today's society, and the leaf filter is no less in this regard. Its vibration slag removal function avoids the environmental pollution problems that may be caused by traditional filtration equipment, making the filtration process more green and environmentally friendly. At the same time, the fully airtight working method of the equipment also effectively prevents the leakage and volatilization of materials, protecting the safety and hygiene of the working environment.



Parameters

Model	Filtering area (m2)	Cylinder diameter (mm)	Inlet	Outlet	Overflow port	Slag outlet (mm)	Height (mm)	Weight (kg)
ADYP-4	4	550	DN50	DN80	DN40	300	2010	600
ADYP-8	8	700	DN50	DN80	DN40	400	2425	800
ADYP-10	10	800	DN50	DN80	DN40	400	2630	900
ADYP-15	15	900	DN50	DN80	DN40	400	2650	1100
ADYP-20	20	1100	DN50	DN80	DN40	400	3000	1500
ADYP-30	30	1200	DN50	DN80	DN40	500	3050	1750
ADYP-40	40	1300	DN65	DN80	DN50	500	3280	2100
ADYP-50	50	1400	DN65	DN80	DN50	600	3450	3000
ADYP-60	60	1500	DN65	DN80	DN50	600	3630	3100
ADYP-80	80	1600	DN65	DN80	DN50	700	3860	3600



Wide application fields

1. A good helper for the oil industry

In the petroleum field, leaf filters are often used for refining and purifying oil products. It can remove impurities and moisture in oil products, improve the quality and stability of oil products, and provide a reliable guarantee for the development of the oil industry.

2. The gatekeeper of paints and paints

For the paint and pigment industry, the leaf filter can ensure the color and quality of the product. It can filter out tiny particles and impurities, making the paint and pigment more delicate and uniform, and bringing people a more colorful visual experience.

3. Food and Beverage Safety Guard

The safety of food and beverages is of paramount importance, and leaf filters play the role of "safety guardians" in this field. They can effectively remove harmful substances and impurities from food and beverages, ensuring the health and safety of consumers.

4. Key equipment for the pharmaceutical and oil industries

In the pharmaceutical and oil industries, the precision filtration function of the leaf filter is also indispensable. It can help enterprises produce high-quality medicines and oil products to meet people's pursuit of health and quality of life.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
