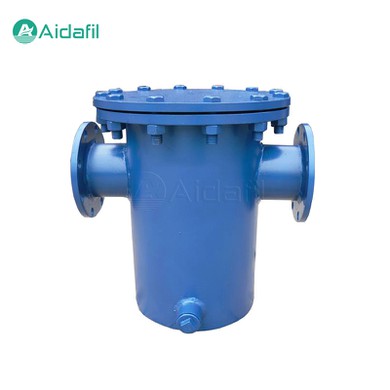

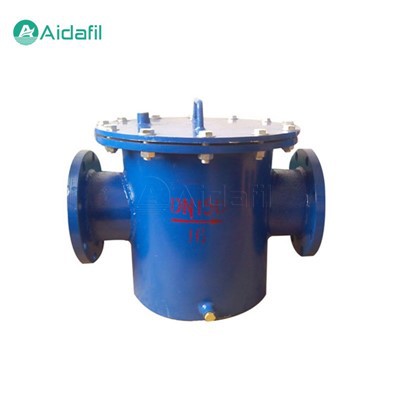

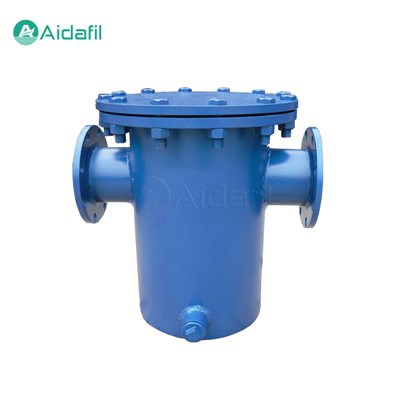

Impurity Removal Robust Basket Filter

The impurity removal robust basket filter is a commonly used liquid filtration equipment, mainly used to remove a small amount of solid particles in the liquid to protect the normal operation of compressors, pumps, instruments and other equipment. Featuring simple structure, good filtration effect and convenient maintenance, it plays an important role and provides a reliable guarantee for liquid filtration in many industries.



How it works

1. Filtration process

When the liquid enters the basket filter, it flows through the filter basket with a certain size of the filter screen. The pore size of the filter screen is smaller than the diameter of the impurities in the liquid, so the impurities are blocked on the filter screen, and the clean filtrate is passed through the filter screen and discharged from the filter outlet.

2. The cleaning process

When the impurities in the filter accumulate to a certain extent, it needs to be cleaned. The cleaning process is usually by removing the filter basket, removing the impurities, and then reloading the filter basket. The cleaning process is simple and fast, and it is easy to maintain.



Structural features

1. Filter basket

The filter basket is the core part of the basket filter, which is equipped with a filter screen inside to capture impurities in the liquid. The filter basket is usually made of metal material, which has high strength and corrosion resistance.

2. Bracket

The bracket is used to support the filter basket and keep it stable. The bracket material is usually the same as the filter basket material to ensure the overall strength of the entire filter.

3. Import and export pipelines

The inlet and outlet pipelines connect the filter with the liquid flow pipeline to ensure that the liquid enters and discharges the filter smoothly. The design of the inlet and outlet pipelines should consider the flow rate and pressure loss of the liquid to ensure the filtration effect.

4. Drive device

The drive device is used to drive the cleaning of the filter basket, so that the filter basket can be taken out and reloaded smoothly during the cleaning process. The drive device is usually an electric motor or a pneumatic device.

5. Control system

The control system is used to control the operation and cleaning process of the filter. The control system can be adjusted manually or automatically according to actual needs.



Parameters

Material of housing	Cast iron, carbon steel	Stainless steel
Material of strainers	Stainless steel
Material of seal components	Oil-resistant asbestos, flexible graphite, PTFE
Working temperature	-30 ~ +380°C	-80 ~ +450°C
Filtration precision	10 ~ 300 meshes
Nominal pressure	0.6 ~ 6.4 Mpa (150Lb ~ 300Lb)
Connection	Flange, welding



Application

1. Chemical industry

Basket filters are widely used in the chemical industry to filter various liquids, such as reactor inlet gas, compressor inlet gas, and pump inlet liquid.

2. The oil industry

In the petroleum industry, basket filters are mainly used to filter liquids such as oil and natural gas to protect the normal operation of equipment.

3. Food industry

In the food industry, basket filters are used to filter liquids such as fruit juices, beverages, and dairy products to ensure product quality.

4. Pharmaceutical industry

In the pharmaceutical industry, basket filters are used to filter liquids such as pharmaceutical solutions and biological products to meet strict production requirements.

5. Environmental protection

Basket filters are also widely used in the field of environmental protection, such as wastewater treatment, liquid waste treatment, etc., which helps to improve the level of environmental protection.



Maintenance

1. Regularly check the filter basket and filter screen to find damage or wear and tear and replace them promptly.

2. Inspect import and export pipelines and brackets to ensure no leakage or damage.

3. Regularly clean the filter basket to remove impurities and maintain the filtration effect.

4. Check the drive and control system to ensure their normal operation.

5. Regularly conduct an overall inspection of the filter and deal with any problems promptly to ensure the safe operation of the equipment.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
