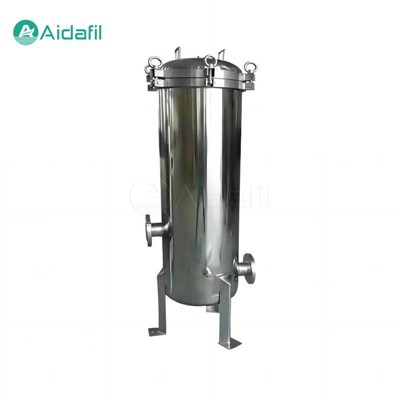

Optimized-Structure Security Filter

The optimized-structure security filter, a common liquid filtration device, is mainly used for pre-filtration and end point filtration of various liquids. Its name is derived from its "security" role in filtration systems, designed to protect downstream equipment from contamination and wear.



Parameters

Filter element quantity	3-123
Material	Cylindrical shell, 304 or 316L stainless steel; Equipped with multiple filter elements
Use	Used to filter out fine substances after multi-media filtration (such as tiny quartz sand, activated carbon particles, etc.)
Filter flow	3-246m3/h



Characteristics

The characteristics of the optimized-structure security filter mainly include:

1. The security filter can effectively remove suspended solids, impurities, rust and other substances in the liquid, ensuring the water quality standard.

2. This type of filter can withstand high filtration pressure and is suitable for a variety of high-pressure filtration environments.

3. The unique deep mesh structure inside makes the filter element have a high slag loading capacity, thus improving the filtration efficiency.

4. Filter elements can be made of a variety of materials to meet the needs of various fluid filtration, such as PP meltblown, wire wound, microporous filter elements, etc.

5. Security filters are small in size and have a large filtration area, which makes them particularly suitable in space-constrained environments.

6. Acid and alkali chemical solvents can be used in filtration equipment in the chemical industry, increasing its wide range of applications.

7. High mechanical strength and high temperature resistance. The filter element is not easy to deform. These characteristics ensure physical stability under long-term use.

8. Low price, low operating cost, small filter cleaning difficulty, easy operation, replaceable filter element, prolonging the service life of the filter.

9. The filtration resistance is small, the liquid flux is large, and the pollution interception ability is strong, which helps to improve the overall filtration efficiency.



Range of applications

The optimized-structure security filters have a wide range of applications, covering multiple industries and fields.

1. Water treatment system

- Pretreatment protection. Security filters are often installed at the front end of membrane treatment systems such as reverse osmosis and ultrafiltration to remove suspended solids and particulate impurities in the water and protect the membrane components from physical damage.

- Terminal precision treatment. In some occasions with strict requirements for water quality, such as the electronics industry and the pharmaceutical industry, the security filter is used as the final fine filtration step to ensure that the output water quality meets the required purity standard.

2. Chemical industry

- Raw material purification. In the chemical production process, security filters are used to remove impure substances from raw materials to prevent these impurities from affecting the quality and efficiency of chemical reactions.

- Product Safety. During the production and packaging of chemicals, security filters ensure that the final product is free of harmful particulate matter and meets Safety and Quality Standards.

3. Food and beverage industry

- Food Safety. Security filters are used in food and beverage production lines to remove tiny particles and impurities that can affect the taste and safety of products.

- Equipment protection. Before beverage filling, the security filter protects the filling equipment from clogging and wear of particulates, prolonging the service life of the equipment.

4. Pharmaceutical industry

- Pharmaceutical production. During the pharmaceutical manufacturing process, security filters are used to ensure the purity of raw materials and solvents to avoid contamination of the final product.

- Medical Equipment. In hospital and laboratory equipment, security filters ensure that the water quality of the water supply system meets strict medical standards.

5. Electricity industry

- Boiler feed water. In power production, security filters are used for pretreatment of boiler feed water to remove impurities that can cause scaling and corrosion.

- Cooling System. Security filters are also used for water treatment of cooling systems to prevent solid particles from causing damage to cooling towers and heat exchangers.

6. Agricultural irrigation

- Water purification. In modern agricultural irrigation systems, security filters are used to remove suspended solids and particles from water sources and protect drip and sprinkler irrigation equipment.

7. Automotive industry

- Pre-coating treatment. During the painting process of automobile manufacturing, the security filter ensures the purity of the coating liquid, improving the painting effect and product quality.

8. Environmental protection industry

- Wastewater treatment. In wastewater treatment and reuse systems, security filters are used to remove residual suspended solids from treated wastewater, meeting standards for discharge or reuse.

9. Semiconductor industry

- High-purity water preparation. In the semiconductor manufacturing process, security filters are used to prepare high-purity water to ensure that the water quality requirements in the chip production process are met.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
