Water Filtration System Horizontal Self-Cleaning Filter

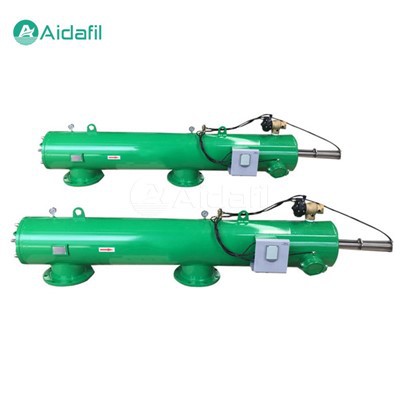

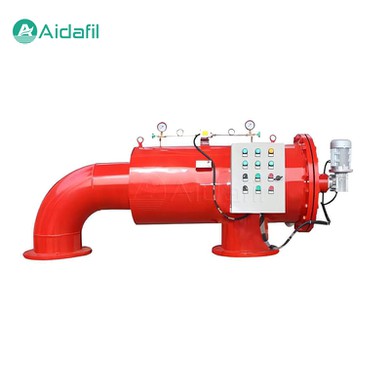

The Water Filtration System Horizontal Self-Cleaning Filter is mainly composed of the filter cylinder, the sewage valve, the driving device, and the control system. Among them, the filter cylinder is the main part of the filter, and the filter screen is installed inside to intercept impurities in the water; the sewage valve is located at the bottom of the filter to discharge the filtered impurities; the driving device is the key component to realize the automatic cleaning function, which drives the cleaning brush to rotate through the motor to remove impurities on the filter screen; the control system is responsible for monitoring the running status of the filter and controlling the cleaning process.



When water enters the filter cylinder of the horizontal self-cleaning filter from the water inlet, the impurities in the water are intercepted by the filter screen on the inner wall of the cylinder, and the clean water flows out from the water outlet through the filter screen. With the extension of the filtration time, the impurities on the filter screen gradually increase, resulting in an increase in the pressure difference between the filter inlet and outlet. When the pressure difference reaches the preset value or the set cleaning time, the control system will automatically start the cleaning program. At this time, the driving device drives the cleaning brush to rotate, remove the impurities on the filter screen and discharge them from the sewage valve with the water flow. After the cleaning is completed, the filter automatically resumes the filtering state and continues to intercept impurities in the water.



Characteristics

1. High-efficiency filtration. The horizontal self-cleaning filter adopts a high-efficiency filter screen, which can intercept various impurities in the water and ensure the purity of the effluent water.

2. Automatic cleaning. The filter has an automatic cleaning function, allowing the cleaning process to be realized without manual intervention, which greatly saves manpower and time costs.

3. Intelligent control. The control system adopts intelligent design, which can monitor the operating status of the filter in real time and automatically start the cleaning program according to the pressure difference or time to ensure the normal operation of the filter.

4. Energy saving and environmental protection. The filter adopts an energy-saving design, eliminating the need to consume a lot of water and energy during the cleaning process, meeting environmental protection requirements.

5. Wide range of applications. Horizontal self-cleaning filters are suitable for a variety of water quality conditions and can be widely used in industrial production, agricultural irrigation, municipal water supply, and other fields.



Parameters

Single unit flow	50-1200M3/H, larger flow can be realized by multiple single units in parallel
Minimum working pressure	0.2Mpa
Maximum working pressure	1.0/1.6/2.5/4.0Mpa
Maximum operating temperature	80°C
Filtration accuracy	130~3500 microns
Control mode	Differential pressure, timing or manual
Cleaning time	60s
Cleaning mechanism speed	14-20rpm
Cleaning pressure loss	0.01Mpa
Control voltage	AC 220V
Rated operating voltage	Three-phase, AC220V /380V, 50HZ



Application

1. Industrial production. In the chemical, pharmaceutical, food, and other industries, horizontal self-cleaning filters can be used for cooling water filtration, nozzle protection, circulating water filtration, and other scenarios to ensure the normal operation of production equipment and product quality.

2. Agricultural irrigation. In agricultural irrigation systems, horizontal self-cleaning filters can be used to filter groundwater, river water, and other water sources to prevent impurities from clogging irrigation equipment and ensure irrigation effectiveness.

3. Municipal water supply. In municipal water supply systems, horizontal self-cleaning filters can be used for water plant effluent filtration, water supply pipeline filtration, and other scenarios to ensure that the water quality meets standard requirements.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
