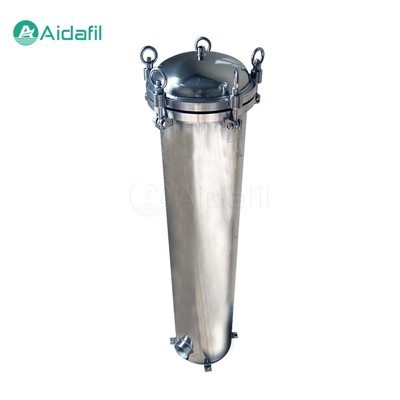

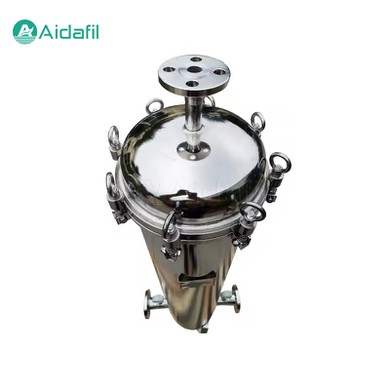

Stainless Steel Bag Filter For Water Filtration

The Stainless Steel Bag Filter For Water Filtration represents an advanced filtration equipment, mainly used for pre-filtration and fine filtration of various liquids. It is made of high-quality stainless steel material, which has the characteristics of corrosion resistance, wear resistance and long service life.



The Stainless Steel Bag Filter For Water Filtration mainly uses the sieving effect of the filter bag to filter the liquid. When the liquid to be filtered passes through the filter bag, the solid particles in the liquid will be trapped on the surface of the filter bag, and the clean liquid will flow into the outlet through the filter bag. As the filtration process progresses, the trapped impurities will gradually accumulate on the filter bag, resulting in a decrease in the filtration efficiency of the filter bag. At this time, it is necessary to restore the performance of the filter by replacing the filter bag.



Structural features

1. Filter shell --- The filter shell of the Stainless Steel Bag Filter For Water Filtration is usually made of 304 or 316 stainless steel, which has good corrosion resistance and high temperature resistance, ensuring that the filter can still operate normally in harsh working environments.

2. Filter bag --- The filter bag is an important component of the filter. It is usually made of non-woven fabrics, nylon, polyester, and other materials. It has strong wear resistance and tensile strength.

3. Inlet and outlet --- The design of the inlet and outlet of the filter is reasonable, and the fluid forms a uniform flow inside the filter, which is conducive to improving the filtration effect.

4. Sewage outlet --- There is a sewage outlet at the bottom of the filter to facilitate the regular discharge of impurities deposited at the bottom of the filter.



Parameters

Flange standard	HG, GB, SH, HGJ, J8, ANSI, JIS
Connections	Thread, Flange, Clamp
Drain outlet specification	1/4
Filtering precision	0.5 - 800 μm
Design pressure	0.6 - 1.0 Mpa
Design temperature	90°C for PP filter bag, 130°C for PE filter bag, 240°C for PTFE filter bag
Surface treatment	Sand blasting, polishing
Housing material	20#, 304, 316L, 2205/2507, titanium
Sealing gasket material	Silica gel, NBR, PTFE
Filter bag material	Polyester, polypropylene, nylon, PTFE, glass fiber



Performance advantages

1. High-efficiency filtration --- The Stainless Steel Bag Filter For Water Filtration has a large filtration area and high filtration accuracy, which can effectively remove suspended solids, particulate impurities, etc. in water.

2. Simple structure --- The filter has a simple structure, easy installation and disassembly, and low maintenance costs.

3. Easy to operate --- The filter adopts a quick-opening design, making it convenient and quick to replace the filter bag without affecting the production progress.

4. Strong durability --- The stainless steel filter housing has excellent corrosion resistance and high temperature resistance, making it suitable for a variety of harsh working environments.

5. Energy saving and environmental protection --- Filters can effectively reduce the content of impurities in water, reduce pollutant emissions, and contribute to environmental protection.



Application field

The Stainless Steel Bag Filter For Water Filtration is widely used in the following fields:

1. Food and beverage industry --- Used to filter raw water, process water, cooling water, etc., to ensure the hygienic quality of food and beverages.

2. Chemical industry --- Used to filter raw material water, circulating water, wastewater, etc. in the chemical production process to reduce the impurity content in the water and improve product quality.

3. Electronics industry --- Used to filter high-purity water such as pure water and ultrapure water to ensure the normal operation of electronic equipment.

4. Pharmaceutical industry --- Used to filter raw material water, bottle washing water, etc. in the production process of medicines to ensure the hygienic quality of medicines.

5. Steel industry --- Used to filter boiler water, cooling water, etc., to prevent pipeline blockage and prolong the service life of equipment.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
