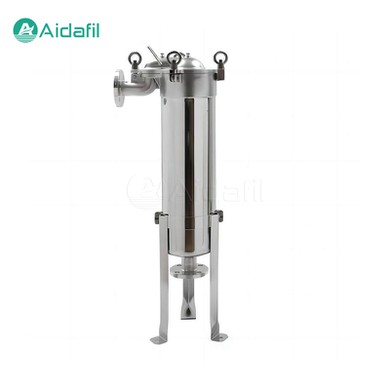

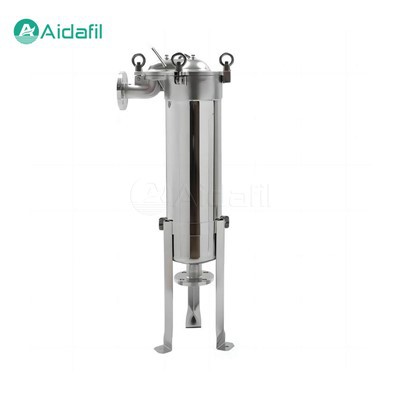

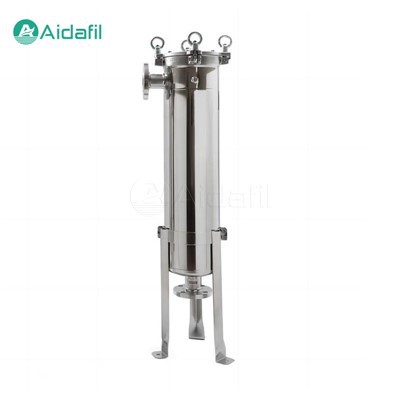

Cost-Effective Single Bag Filter

The Cost-Effective Single Bag Filter uses a single filter bag to trap particles from a liquid stream. The filter bag is made of a porous material, which allows the liquid to pass through while retaining the contaminants. The size of the pores in the filter bag determines the size of particles that can be captured, ranging from microns to millimeters.



Key Features of the Cost-Effective Single Bag Filter

1. Simplicity. The design of the Cost-Effective Single Bag Filter is straightforward, consisting of a housing, a filter bag, and a support basket. This simplicity not only makes the equipment easy to install and operate but also reduces the likelihood of malfunctions.

2. Efficiency. The single bag filter offers high filtration efficiency, with the ability to capture particles as small as 0.1 microns. This ensures that the filtered liquid meets the required purity standards.

3. Versatility. The Cost-Effective Single Bag Filter can be used with a wide range of filter media, allowing it to handle various types of liquids and contaminants. Additionally, the filter bags are available in different sizes and materials, making it adaptable to different flow rates and operating conditions.

4. Affordability. One of the primary advantages of the Cost-Effective Single Bag Filter is its low cost. The simple design and use of inexpensive filter media make it an economical choice for many applications.



Technical parameters

Filtering area	0.1-0.5m2
Operating pressure	1.0Mpa
Filter cylinder diameter	219mm
Flow rate	40T/H
Materials	304, 316 stainless steel
Filtering accuracy	0.1-100μm
Inlet & outlet caliber	DN25-DN80



Applications of the Cost-Effective Single Bag Filter

The Cost-Effective Single Bag Filter finds application in a wide range of industries and processes. Some common examples include:

1. Food and Beverage Industry. Used to remove particles from ingredients, process water, and finished products to ensure product quality and safety.

2. Chemical Industry. Used to filter chemicals, solvents, and other liquids to remove impurities and improve product purity.

3. Pharmaceutical Industry. Used to filter active ingredients, solvents, and process water to meet strict quality standards.

4. Water Treatment: Used to remove sediment, bacteria, and other contaminants from water to produce clean, potable water.



Benefits of Using a Cost-Effective Single Bag Filter

1. Improved Product Quality. By removing impurities from liquids, the Cost-Effective Single Bag Filter helps to improve the quality of the final product. This is particularly important in industries where product purity is critical, such as food and beverage, pharmaceutical, and cosmetics.

2. Reduced Maintenance Costs. The simplicity of the Cost-Effective Single Bag Filter means that it requires minimal maintenance. The filter bags can be easily replaced when they become clogged, without the need for extensive cleaning or repairs.

3. Longer Equipment Life. By preventing contaminants from entering the downstream process equipment, the Cost-Effective Single Bag Filter helps to extend the life of pumps, valves, and other components.

4. Environmental Compliance. In many industries, there are strict regulations governing the discharge of waste water. The Cost-Effective Single Bag Filter helps to ensure compliance with these regulations by removing harmful particles from the liquid stream.



Installation and Operation of the Cost-Effective Single Bag Filter

Installing and operating the Cost-Effective Single Bag Filter is a straightforward process. The filter housing is typically mounted on a support structure, and the filter bag is placed inside the housing. The liquid to be filtered is then pumped into the housing, where it passes through the filter bag and exits through the outlet. As the filter bag becomes clogged with particles, the flow rate decreases, indicating that the bag needs to be replaced.



Maintenance and Replacement of Filter Bags

Maintenance of the Cost-Effective Single Bag Filter primarily involves replacing the filter bag when it becomes clogged. This is a simple process that can be performed by the operator without the need for specialized tools or training. The frequency of bag replacement depends on the nature of the liquid being filtered and the desired level of filtration. In some cases, the filter bag can be cleaned and reused, further reducing operating costs.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
