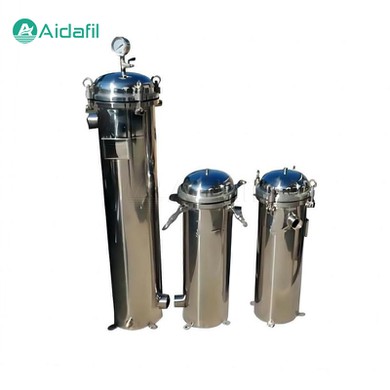

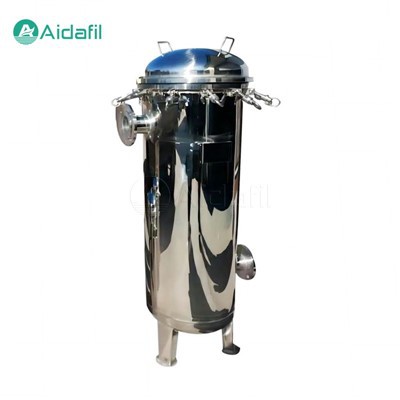

Liquid Filtration Machine Bag Filter

The liquid filtration machine bag filter is a high-performance industrial water filtration equipment designed to remove impurities and contaminants from liquids. This advanced filter system is widely used in various industries, including water treatment, chemical processing, oil and gas, and power generation. Its unique design and features make it an ideal solution for applications requiring high flow rates, precise filtration, and reliable operation.



The liquid filtration machine bag filter features a robust design, constructed from 304 or 316L stainless steel, depending on the specific requirements of the application. The filter housing is cylindrical in shape. The filter is designed to accommodate multiple bags, depending on the flow rate and filtration requirements.



The filter housing is fabricated using advanced welding techniques, ensuring a strong and leak-tight construction. The interior of the filter is equipped with a series of perforated tubes, which provide support for the filter bags and allow for easy installation and removal.



Filter Bags

The filter bags used in the liquid filtration machine bag filter are made from high-quality materials, such as polypropylene or polyester, and are designed to capture impurities and contaminants down to micron in size.



The filter bags are typically pleated, providing a large surface area for filtration, and are designed to be easily cleaned and replaced. The bags are secured to the filter housing using a simple and convenient bag locking system, which ensures a secure and leak-tight seal.



Operating Principle

The liquid filtration machine bag filter operates on the principle of gravity flow, where the water to be treated flows into the filter housing and passes through the filter bags. The impurities and contaminants are captured by the filter bags, while the clean water passes through the bags and exits the filter housing.



The filter is typically installed in a vertical position, with the inlet and outlet connections located at the top and bottom of the filter, respectively.



Parameters

Flange standard	HG, GB, SH, HGJ, J8, ANSI, JIS
Connections	Thread, Flange, Clamp
Drain outlet specification	1/4
Filtering precision	0.5 - 800 μm
Design pressure	0.6 - 1.0 Mpa
Design temperature	90°C for PP filter bag, 130°C for PE filter bag, 240°C for PTFE filter bag
Surface treatment	Sand blasting, polishing
Housing material	20#, 304, 316L, 2205/2507, titanium
Sealing gasket material	Silica gel, NBR, PTFE
Filter bag material	Polyester, polypropylene, nylon, PTFE, glass fiber



Advantages

The liquid filtration machine bag filter offers several advantages, including:

1. High Efficiency. The filter bag captures particles of a specific size range, ensuring high efficiency in removing impurities and contaminants.

2. Low Maintenance. The filter bag can be easily replaced, reducing maintenance costs and downtime.

3. Corrosion Resistance. The stainless steel housing provides excellent corrosion resistance, reducing the risk of equipment failure and extending the lifespan of the filter.

4. Flexibility. The filter can be customized to meet specific requirements, including different mesh sizes and materials.



Applications

The liquid filtration machine bag filter finds extensive application in various industries and sectors, including:

1. Municipal Water Treatment Plants. It effectively removes sediments, algae, and other impurities from the water supply, ensuring compliance with regulatory standards for drinking water.

2. Industrial Processes. The filter system is used in manufacturing facilities, power plants, chemical processing plants, and refineries to purify process water, cooling water, and wastewater.

3. Commercial Facilities. Hotels, resorts, hospitals, and recreational facilities rely on this filter to provide clean and safe water for guests and visitors.

4. Food and Beverage Industry. The filter ensures the removal of particulates and contaminants from water used in food and beverage production, ensuring product quality and safety.



Installation and Maintenance

The liquid filtration machine bag filter is relatively easy to install and maintain. The filter housing is typically installed vertically, with the inlet connection at the top and the outlet connection at the bottom. The filter bag is replaced by simply removing the lid of the housing and pulling out the old bag, then installing a new one.



Regular maintenance involves cleaning the filter housing and replacing the filter bag at regular intervals, typically every 1-3 months depending on the application and water quality.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
