Large Capacity Stainless Steel Multi-Bag Filter For Water Purification Plant

Our Large Capacity Stainless Steel Multi-Bag Filter For Water Purification Plant is a crucial component in water purification plants, designed to remove impurities and contaminants from water, ensuring the production of clean and safe drinking water. This filter housing is made of high-quality stainless steel, providing durability and resistance to corrosion, making it an ideal choice for water treatment applications.



Purpose and Importance of Water Purification

Water purification plays a vital role in maintaining public health and ensuring access to clean and safe drinking water. Contaminated water can contain harmful substances such as bacteria, viruses, chemicals, and suspended solids that pose serious health risks when consumed. Water purification plants implement various filtration methods to eliminate these impurities and provide clean water for consumption and other uses.



Overview of Multi-Bag Filter

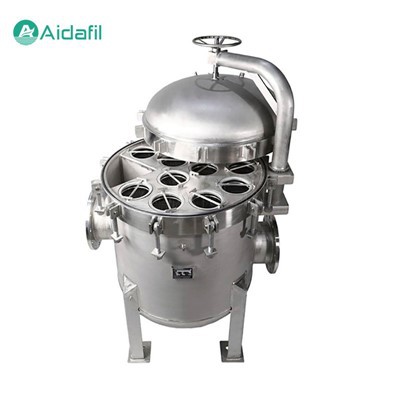

The Large Capacity Stainless Steel Multi-Bag Filter is a highly efficient filtration system widely used in water treatment plants. It consists of a stainless steel vessel housing multiple filter bags. Each bag contains a filtration media that captures and retains suspended solids, sediments, and other particles present in the water. The filter bags are easily replaceable, allowing for continuous filtration without interrupting the water flow.



Design and Construction

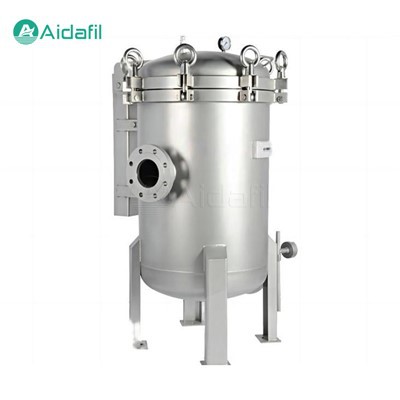

The Large Capacity Stainless Steel Multi-Bag Filter is constructed using high-quality stainless steel, known for its durability, corrosion resistance, and longevity. The robust design ensures reliable operation and minimal maintenance requirements. The filter housing is carefully engineered to withstand high pressure and ensure proper sealing to prevent water bypass. The system is equipped with an inlet and outlet connection, pressure gauges, and a drain valve for efficient operation and monitoring.



Filtration Process

When water enters the multi-bag filter system, it passes through the filter housing, where the filter bags capture and retain the impurities. The suspended solids and contaminants accumulate inside the bags while the clean water flows out through the outlet connection. As the filtration continues, the pressure drop across the filter bags increases, indicating the need for bag replacement or cleaning. This process ensures continuous purification of the water supply.



Benefits and Advantages

Our Large Capacity Stainless Steel Multi-Bag Filter For Water Purification Plant offers several benefits and advantages, including:

a) High Filtration Efficiency. The multi-bag design allows for a larger filtration area, maximizing particle removal efficiency and ensuring cleaner water output.

b) Large Capacity. This filter system can handle significant volumes of water, making it suitable for industrial and municipal applications where high flow rates are required.

c) Durability and Longevity. The stainless steel construction provides excellent resistance to corrosion, ensuring a long service life even in harsh operating conditions.

d) Easy Maintenance. The filter bags are easily replaceable, and the system is designed for easy cleaning and maintenance, minimizing downtime and operational costs.

e) Versatility. The multi-bag filter can be customized to meet specific filtration requirements, including different filtration media and micron ratings.



Applications

The Large Capacity Stainless Steel Multi-Bag Filter is widely used in water purification plants, including:

Drinking water treatment plants

Wastewater treatment plants

Industrial process water treatment plants

Swimming pool water treatment plants

Bottled water treatment plants

The filter is also used in various industrial applications, including:

Chemical processing

Oil and gas production

Power generation

Pharmaceuticals

Food and beverage processing



Multi-Bag Filter Model Table

Model	Reference flow rate	Inlet & outlet	Cylinder Specifications	Filter bag specification / number	Design pressure	Opening method
ADB-2 II	40-100 T/H	DN80 - DN125	ø 460*1530*3mm	2# / 2 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-3 II	60-150 T/H	DN100 - DN150	ø 510*1530*3mm	2# / 3 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-4 II	80-200 T/H	DN100 - DN150	ø 610*1530*4mm	2# / 4 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-5 II	100-250 T/H	DN100 - DN150	ø 660*1530*4mm	2# / 5 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-6 II	120-300 T/H	DN100 - DN150	ø 710*1530*5mm	2# / 6 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-8 II	160-400 T/H	DN150 - DN250	ø 810*1530*5mm	2# / 8 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-10 II	200-500 T/H	DN150 - DN250	ø 960*1530*5mm	2# / 10 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-12 II	240-600 T/H	DN150 - DN300	ø 1110*1530*6mm	2# / 12 filter bags	1.0MPA	Quick Open Eye Bolts



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
