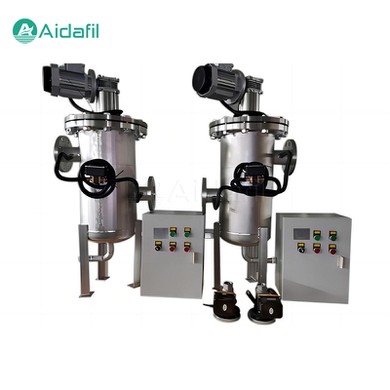

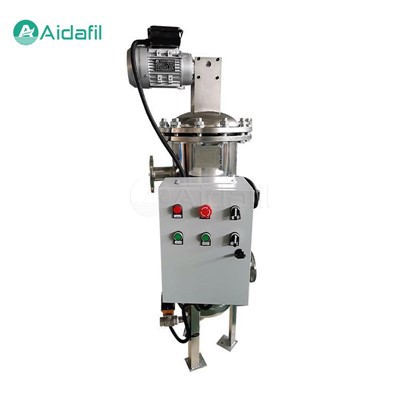

Industrial Automatic Self-Cleaning Filter For Water Treatment

The industrial automatic self-cleaning filter for water treatment emerges as a piece of efficient water treatment equipment widely used in the field of industrial water treatment. Its main function is to remove suspended matter, particulate matter, sediment, rust and other impurities in water to ensure the cleanliness and stability of water quality.



Characteristics

The industrial automatic self-cleaning filter for water treatment has the following significant features:

1. High-efficiency filtration performance

The filter adopts advanced filter technology, which can effectively remove suspended solids, particulate matter, sediment, rust and other impurities in water to ensure the cleanliness of water quality.

2. Fully automatic operation

The filter is equipped with an automatic control system, which can realize remote monitoring and operation, greatly saving labor costs and time costs.

3. Energy-saving and environmentally friendly

The filter requires no additional energy input during operation, and the wastewater generated during the cleaning process can be recycled, meeting green environmental protection requirements.

4. Stable and reliable

The filter is made of high-quality materials and has strong corrosion resistance and wear resistance to ensure long-term stable operation.

5. Easy to maintain

The filter has a well-designed structure, easy maintenance, and reduced operating costs.



Working principle

The working principle of an industrial automatic self-cleaning filter for water treatment mainly includes the following aspects:

1. Filtration process

When raw water enters the filter, suspended matter, particulate matter and other impurities are trapped by the filter screen, and clean water flows out through the filter screen.

2. Backwashing process

With the accumulation of impurities on the surface of the filter screen, the pressure loss of the filter gradually increases. When the pressure loss reaches the set value, the control system will issue a command to start the backwashing procedure. At this time, water enters the filter screen from the backwashing port, initializing the impurities on the filter screen, and taking the impurities out of the filter screen at the same time.

3. Positive flushing process

After the backflushing is over, the control system will start the positive flushing procedure. At this time, clean water flows out from the inside of the filter screen, completely removing the impurities remaining on the filter screen. The positive flushing process usually lasts for several minutes to ensure that the filter is returned to a clean state.

4. Reset process

After the positive flushing is over, the control system will automatically reset and the filter will return to normal operation.



Parameters

Single unit flow	50-1200M3/H, larger flow can be realized by multiple single units in parallel
Minimum working pressure	0.2Mpa
Maximum working pressure	1.0/1.6/2.5/4.0Mpa
Maximum operating temperature	80°C
Filtration accuracy	130~3500 microns
Control mode	Differential pressure, timing or manual
Cleaning time	60s
Cleaning mechanism speed	14-20rpm
Cleaning pressure loss	0.01Mpa
Control voltage	AC 220V
Rated operating voltage	Three-phase, AC220V /380V, 50HZ



Application field

The industrial automatic self-cleaning filter for water treatment has a wide range of application prospects in the field of industrial water treatment, including the following aspects:

1. Cooling water system

The automatic self-cleaning filter can be used for water purification of cooling water systems such as cooling towers and chillers to remove impurities from the water and protect the normal operation of the equipment.

2. Boiler feed water system

The boiler feed water system requires high water quality, and the automatic self-cleaning filter can effectively remove suspended solids, ions and other impurities in the water to ensure the safe operation of the boiler.

3. Circulating water system

The automatic self-cleaning filter can be used to purify the water quality of the circulating water system, prolong the service life of the system, and improve the utilization rate of circulating water.

4. Wastewater treatment and reuse

The automatic self-cleaning filters can be used for the preliminary treatment and advanced treatment of industrial wastewater to remove harmful substances from the water and realize the recycling of wastewater.



Advantages

The industrial automatic self-cleaning filter for water treatments offer the following advantages over traditional water treatment equipment:

1. Highly efficient and energy-saving

The automatic self-cleaning filter adopts advanced filter technology and control system to achieve the goal of high-efficiency filtration, energy conservation and environmental protection.

2. High degree of automation

The equipment is fully automated, allowing for remote monitoring and operation, reducing labor costs and management difficulties.

3. Highly adaptable

The automatic self-cleaning filter can adapt to the needs of water treatment under different water quality and flow conditions, with strong versatility and flexibility.

4. Easy to maintain

The equipment is well-designed and easy to maintain, reducing operating costs and maintenance cycles.

5. Improve production efficiency

By using an automatic self-cleaning filter for water treatment, the quality of production water can be guaranteed to be stable and reliable, improving production efficiency and product quality.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
