Highly Efficient Security Filter

The highly efficient security filter is critical fluid filtration equipment that plays a vital role in numerous industrial processes. It is often used as a last-resort filtration barrier to protect downstream equipment and ensure the quality of the fluid meets stringent standards. The security filter is widely used in water treatment, food and beverage processing, pharmaceutical production, chemical processes, and many other fields that require high-purity fluids.

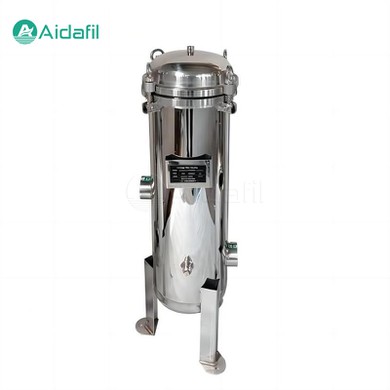

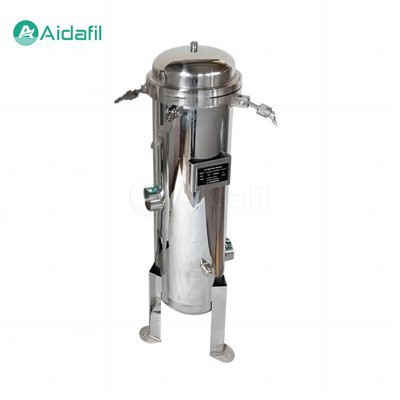

The design of the highly efficient security filter is relatively simple, usually composed of a cylindrical tank, inlet and outlet pipes, internal support structure, and filter element. The tank is usually made of high-quality stainless steel material, such as 304 or 316L models, to avoid corrosion and ensure long-term durability. The filter element is the core component of the security filter.



The working principle of the highly efficient security filter is based on physical screening. When fluid enters the security filter, it first passes through the inlet pipe to the built-in filter element. The filter element is composed of multiple layers of fine filter media, which can capture solid particles, suspended solids, sediments and even certain microorganisms that flow through. These impurities are trapped on the surface or inside of the filter element, while the clean fluid flows out through the pores of the filter material, thus realizing the purification of the fluid.



Parameters

Filter element quantity	3-123
Material	Cylindrical shell, 304 or 316L stainless steel; Equipped with multiple filter elements
Use	Used to filter out fine substances after multi-media filtration (such as tiny quartz sand, activated carbon particles, etc.)
Filter flow	3-246m3/h



Performance characteristics

The highly efficient security filter has the following performance characteristics:

- High filtration efficiency. Capable of efficiently removing tiny particles from fluids.

- Reliability. Stable filtration performance guarantees long service life and low operating costs.

- Easy to maintain. The simple structural design makes replacing the filter element and maintaining it convenient and fast.

- Customized. Security filters of different specifications and models can be customized according to different application requirements.



Application field

The highly efficient security filter is widely used, including but not limited to the following fields:

- Water treatment system. Used to remove suspended solids, bacteria, particulate matter, etc. in water to ensure the stable operation of subsequent equipment such as membrane components.

- Food and beverage industry. Ensure that the water quality in products meets food safety standards and remove impurities that may affect taste and safety.

- Pharmaceutical industry. Provide sterile production conditions to prevent microbial and particulate contamination of medicines.

- Electronics industry. In the semiconductor manufacturing process, it is used to remove particles from cleaning fluids or deionized water.

- Chemical process. Used for fine filtration of chemicals to prevent damage to catalysts and other expensive materials.



Filter element type

There are various types of filter elements used in security filters. According to different applications and filtration requirements, filter elements of different materials and structures can be selected.

- PP meltblown filter element. Made of polypropylene (PP), it has good chemical compatibility and wide applicability, and is often used for pre-filtration.

- Folding filter element. This filter element has a larger filtration area and is capable of capturing finer particles, making it suitable for applications requiring high precision.

- Activated carbon filter element. It is particularly effective in treating organic pollutants and odors, and can adsorb harmful substances in addition to filtering particles.

- Membrane filter element. Such as reverse osmosis (RO) membrane, ultrafiltration (UF) membrane, etc., for higher precision filtration requirements.



How long is the cleaning and replacement cycle of the security filter

The cleaning and replacement cycle of a security filter mainly depends on the following factors:

1. Water quality. If the impurity content in the raw water is high, the filter element of the security filter may clog faster and need to be cleaned or replaced more frequently.

2. Filter flow rate. If the filter flow rate is large, the burden on the filter element will also increase, and more frequent maintenance may be required.

3. Filter element type. Different types of filter elements have different service life and cleaning requirements. For example, some filter elements can be cleaned by backwashing, while others need to be replaced.

4. Operating conditions. Operating conditions such as pressure, temperature, etc. can also affect the life of the filter element.



In general, the cleaning cycle of a security filter can be judged based on the following conditions:

1. Inlet and outlet pressure difference. When the pressure difference between the inlet and outlet of the filter reaches a certain value, it usually indicates that the filter element has been blocked and needs to be cleaned. This pressure difference value can be determined according to the equipment manual or experience.

2. Filtration time. Determine the cleaning cycle according to the use time of the filter. It is generally recommended to clean regularly, such as monthly or quarterly.

3. Water quality monitoring. Monitor the filtered water quality. If the water quality does not meet the requirements, it may be necessary to clean or replace the filter element in advance.



For the replacement cycle, it is usually necessary to replace the filter element in the following cases:

1. Filter element damage. If the filter element is damaged, broken or seriously deformed, it should be replaced immediately.

2. Unable to clean. After multiple cleanings, the filtration performance of the filter element still cannot be restored, or the cleaning effect is not satisfactory, and the filter element may need to be replaced.

3. Reach the service life. Determine the replacement time according to the service life of the filter element. Different types of filter elements have different service lives. Generally, you can refer to the filter element manual or the supplier's suggestion.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
