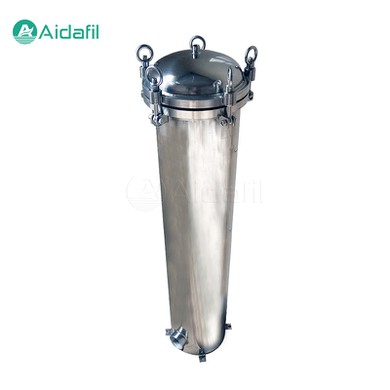

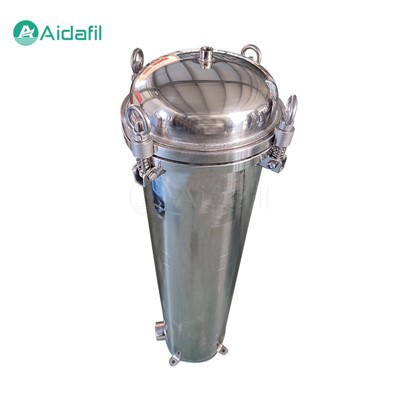

Cheap Price Bag Filter Housing For Liquid Filtration

The Cheap Price Bag Filter Housing For Liquid Filtration is an important piece of equipment widely used in chemical, pharmaceutical, food, beverage, paint, coating, ink, resin and water treatment, mainly used to remove various solid particles, suspended solids, colloids, microorganisms and other impurities in liquids to ensure the smooth progress of the production process and the stability of product quality.



Structural Composition

The Cheap Price Bag Filter Housing For Liquid Filtration is mainly composed of the following three parts:

1. Filter housing. This is the main support structure of the filter, usually made of stainless steel or carbon steel, with sufficient strength and corrosion resistance to withstand internal pressure and external environment. The housing is equipped with a side inlet pipe for the inflow of liquid.

2. Support basket. Located inside the filter housing, it is used to support the filter bag. The basket is usually made of metal material and has good strength and stability to ensure that the filter bag maintains the correct position and shape during the filtration process.

3. Filter bag. The filter bag is the core component of the filter, usually made of PP (polypropylene), PE (polyethylene), PTFE (polytetrafluoroethylene), stainless steel, nylon and other materials. The filter bag has a certain fineness grade, and filter bags with different pore sizes can be selected according to needs to achieve the desired filtration effect.



Working Principle

The working principle of the Cheap Price Bag Filter Housing For Liquid Filtration is relatively simple. The liquid flows into the filter bag through the side inlet pipe of the filter housing, and the filter bag itself is installed in the metal support net basket. The liquid penetrates the filter bag under the action of pressure, and the micropores on the filter bag can intercept the impurity particles, while the clean filtrate flows out through the filter bag. After the impurity particles are intercepted by the filter bag, the filtration resistance gradually increases with the accumulation of impurities on the surface of the filter bag. When it reaches a certain level, the filter bag needs to be cleaned or replaced.



Features

The Cheap Price Bag Filter Housing For Liquid Filtration has the following characteristics:

1. High-efficiency filtration. The filter bag has high filtration accuracy and efficiency, capable of effectively removing various impurities from the liquid.

2. Easy to operate. It is very convenient to replace the filter bag without the need for complex tools and skills, which greatly reduces maintenance costs and time.

3. No material consumption. There is basically no material consumption during the filtration process, just replace the filter bag regularly, meeting the requirements of energy conservation and environmental protection.

4. Wide range of applications. The appropriate filter bag material and fineness grade can be selected according to different filtration requirements, suitable for a variety of industries and occasions.

5. Compact structure. The filter is small in size and occupies less space, making it easy to install and use.

6. Safe and reliable. The use of high-quality materials and advanced manufacturing processes ensures the safe and reliable operation of the filter.



Application Field

The Cheap Price Bag Filter Housing For Liquid Filtration is widely used in the following fields:

1. Chemical industry --- used for filtration of raw material liquids, solvents, catalysts, etc.

2. Pharmaceutical industry --- used for filtration of pharmaceutical liquids, biological products, blood products, etc.

3. Food and beverage industry --- used for filtration of fruit juices, edible oils, condiments, etc.

4. Paint and coatings industry --- used for filtration of coatings, paints, solvents, etc.

5. Ink and resin industry --- used for filtration of inks, resins, additives, etc.

6. Water treatment industry --- used for filtration of tap water, industrial water, wastewater, etc.

7. Other industries --- such as electronics, textiles, papermaking, metallurgy, and other industries are also widely used.



Parameters

Flange standard	HG, GB, SH, HGJ, J8, ANSI, JIS
Connections	Thread, Flange, Clamp
Drain outlet specification	1/4
Filtering precision	0.5 - 800 μm
Design pressure	0.6 - 1.0 Mpa
Design temperature	90°C for PP filter bag, 130°C for PE filter bag, 240°C for PTFE filter bag
Surface treatment	Sand blasting, polishing
Housing material	20#, 304, 316L, 2205/2507, titanium
Sealing gasket material	Silica gel, NBR, PTFE
Filter bag material	Polyester, polypropylene, nylon, PTFE, glass fiber



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
