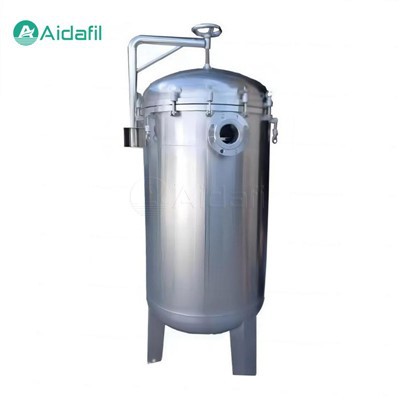

High Flow Multi-Bag Filter

In industrial production, liquid filtration is a crucial link, which is of great significance for ensuring product quality, maintaining the normal operation of equipment and protecting the environment. As a kind of high-efficiency and high-capacity liquid filtration equipment, the high flow multi-bag filter has been widely used in all walks of life by virtue of its unique advantages.



The high flow multi-bag filter is a kind of filtration equipment that uses multiple filter bags to work in parallel, which is mainly used to remove solid particles, suspended solids and other impurities in the liquid to achieve the purpose of purifying the liquid. The filter has the advantages of compact structure, high filtration efficiency, large processing capacity and simple operation, and is one of the indispensable important equipment in industrial production.



Working principle

The working principle of the high flow multi-bag filter is relatively simple, but the effect is significant. Its main working principles are as follows:

- Liquid inflow. The liquid to be filtered enters the filter through the liquid inlet and is evenly distributed into each filter bag through the shunt device.

- Filter bag interception. The filter bag is made of a specific material with precise filtration accuracy. When the liquid passes through the filter bag, the impurity particles are intercepted on the inner wall of the filter bag, and the clean liquid flows out through the pores of the filter bag.

- Large flow handling. Due to the parallel operation of multiple bags, the filter can handle a large number of liquids at the same time, meeting the needs of large flow continuous filtration. This design makes the large flow multi-bag filter more efficient and lower energy consumption when handling large amounts of liquids.

- Backwash or replace the filter bag. As the filtration process progresses, a certain amount of impurities will accumulate on the surface of the filter bag, resulting in an increase in pressure difference. At this time, backwash can be used to remove some impurities on the filter bag to restore its filtration performance. When the filter bag can no longer recover its performance through backwash, a new filter bag needs to be replaced in time to ensure the normal operation of the filter.



Features

The high flow multi-bag filter has the following characteristics:

1. Reasonable structure. The filter is made of high-quality materials, with a compact structure and reasonable design to ensure the stability and reliability of the filter. At the same time, its modular design makes installation, replacement of filter bags, and other operations more convenient and faster.

2. Easy to operate. The operation of the high flow multi-bag filter is very simple, just follow the operation manual. In addition, the filter is also equipped with an automatic control system, which can realize remote monitoring and operation, greatly reducing the labor intensity of the operator.

3. High efficiency and energy saving. The filter has high efficiency filtration performance, which can effectively remove impurities and particulate matter in the liquid. At the same time, its multi-bag parallel design makes the processing capacity large, the energy consumption is low, and the energy saving effect is high.

4. Wide range of applications. The high flow multi-bag filter can be used in a variety of industries and fields, such as power, petroleum, chemical, agriculture, etc. The filter bag material and filtration accuracy can be customized according to different needs to meet the filtration needs of various fluids.



Application field

The high flow multi-bag filters are widely used in the following fields:

1. Power industry

Used to filter impurities in steam turbine cooling water, boiler feed water and other systems to protect the normal operation of power equipment.

2. Petroleum industry

Used to filter impurities in oil well water injection, crude oil transportation and other systems to prevent oil well pollution and pipeline blockage.

3. Chemical industry

Used to filter impurities in various chemical liquids to ensure product quality and production safety.

4. Agricultural applications

Used for the filtration of farmland irrigation water to improve the quality of irrigation water; used for the filtration of fishing pond water to improve the water quality environment.



Multi-Bag Filter Model Table

Model	Reference flow rate	Inlet & outlet	Cylinder Specifications	Filter bag specification / number	Design pressure	Opening method
ADB-2 II	40-100 T/H	DN80 - DN125	ø 460*1530*3mm	2# / 2 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-3 II	60-150 T/H	DN100 - DN150	ø 510*1530*3mm	2# / 3 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-4 II	80-200 T/H	DN100 - DN150	ø 610*1530*4mm	2# / 4 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-5 II	100-250 T/H	DN100 - DN150	ø 660*1530*4mm	2# / 5 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-6 II	120-300 T/H	DN100 - DN150	ø 710*1530*5mm	2# / 6 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-8 II	160-400 T/H	DN150 - DN250	ø 810*1530*5mm	2# / 8 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-10 II	200-500 T/H	DN150 - DN250	ø 960*1530*5mm	2# / 10 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-12 II	240-600 T/H	DN150 - DN300	ø 1110*1530*6mm	2# / 12 filter bags	1.0MPA	Quick Open Eye Bolts



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
