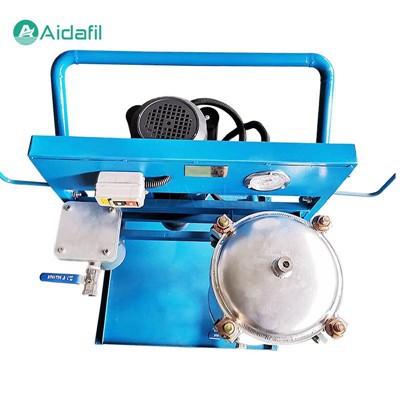

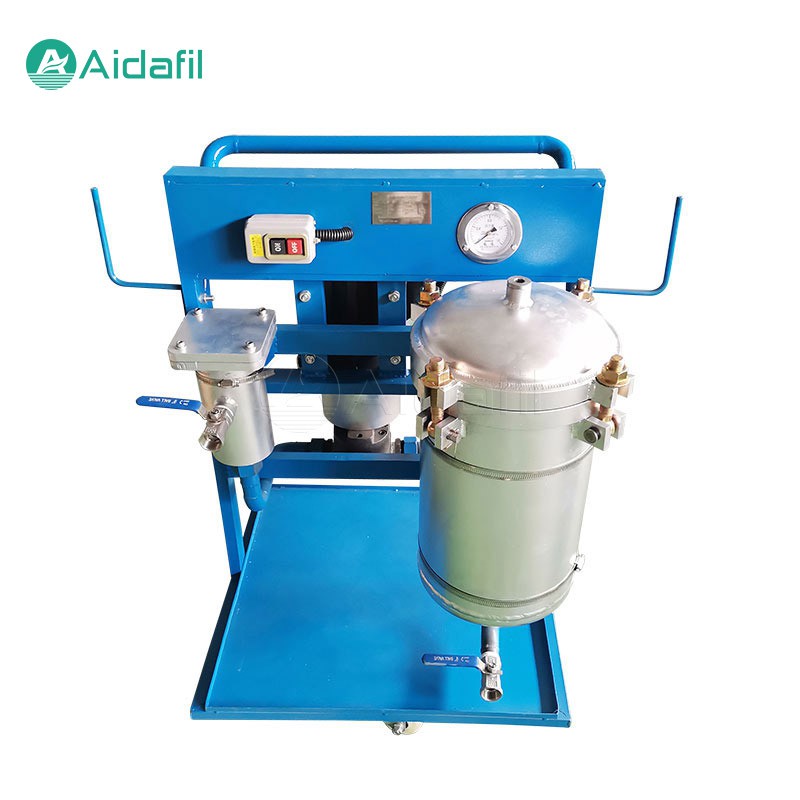

Movable Portable Lubricating Oil Purifier

Lubricating oil plays a vital role in maintaining the optimal performance and longevity of machinery in numerous industries, such as manufacturing, power generation, marine, and automotive. Over time, however, lubricants can become contaminated with impurities, including water, particulate matter, oxidation products, and other foreign substances, which can significantly degrade their effectiveness and potentially lead to equipment failure or premature wear. The Movable Portable Lubricating Oil Purifier addresses this challenge by offering a compact, easy-to-use, and highly effective solution for purifying contaminated lubricating oils, enabling users to restore and maintain oil quality without the need for off-site processing or complete oil replacement.



The movable portable lubricating oil purifier is a device designed to remove contaminants and impurities from used lubricating oil, thereby extending its service life and improving the performance of machinery that uses this oil. The portable oil purifier is typically used in industrial settings where large quantities of oil are circulated through various systems, such as hydraulic systems, gearboxes, and engines.



One of the key features of a movable portable lubricating oil purifier is its portability. These devices are often equipped with wheels or handles, allowing them to be easily moved from one location to another within a facility or even transported between different sites. This mobility makes them particularly useful in situations where multiple pieces of equipment require oil purification or where the purifier needs to be relocated frequently.



The control panel of a portable lubricating oil purifier usually allows the operator to set parameters such as flow rate, pressure, and temperature. This ensures that the purification process can be tailored to the specific needs of the oil and the equipment it serves. Many purifiers also come equipped with sensors and alarms that alert the operator to issues such as high pressure, low oil levels, or filter clogging.



The maintenance of a portable lubricating oil purifier is generally straightforward. Regular checks should be made to ensure that the filters are not clogged and that all components are functioning correctly. Depending on the usage, the filters may need to be replaced periodically to maintain the efficiency of the purification process.



Product parameters

Flow rate : 25 - 150 L /min

Rated pressure : 0.6 MPa

Coarse filter precision : 100 μm

Grade 1 filter rating : 10 μm, 20 μm, 40 μm

Grade 2 filter rating : 3 μm, 5 μm, 10 μm

Differential pressure : 0.2 Mpa

Working temperature : 5 - 80 °C

Recommended viscosity : 10 - 160 cSt

Voltage : AC 380V(Three-phase), 50Hz

Weight : 46 - 160 kg



Benefits

Improved equipment reliability and performance

Extended oil and filter life

Environmental sustainability

Cost savings



Typical Use Cases

The Movable Portable Lubricating Oil Purifier finds applications in various industries and settings where maintaining clean, high-quality lubricating oil is critical:

1. Manufacturing and Industrial Plants

In factories and production facilities, portable oil purifiers can be used to maintain the cleanliness of hydraulic oils, gear oils, compressor oils, and other lubricants used in machinery such as CNC machines, presses, conveyors, and pumps.

2. Power Generation

In power plants, whether fossil fuel-based or renewable, oil purifiers are employed to clean transformer oils, turbine oils, and lubricants used in generators, gearboxes, and auxiliary systems, ensuring optimal performance and reducing the risk of costly failures.

3. Marine and Offshore Applications

On ships, offshore platforms, and coastal installations, portable oil purifiers play a crucial role in maintaining the quality of marine diesel engine oils, gearbox oils, stern tube oils, and other lubricants exposed to harsh environments and high contamination risks.

4. Construction and Mining

In these sectors, portable oil purifiers help maintain the cleanliness of hydraulic oils, transmission fluids, and engine oils used in heavy equipment like excavators, bulldozers, cranes, and drilling rigs, ensuring smooth operation and minimizing downtime.

5. Automotive and Transportation

For fleet maintenance and repair facilities, portable oil purifiers can be utilized to clean and rejuvenate engine oils, transmission fluids, and brake fluids, improving vehicle performance and extending the life of lubricants and filters.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
