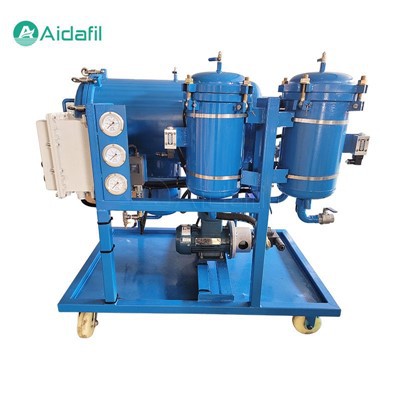

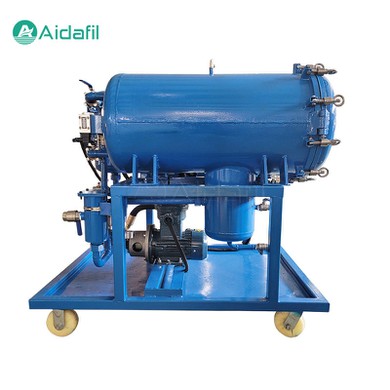

Lube Oil Coalescing Dehydration Oil Purifier

The lube oil coalescing dehydration oil purifier is a highly efficient tool that is used in various industries to purify oil. This purifier is designed to remove water and impurities from oil, ensuring that the oil remains at its optimum condition throughout its use.



Lube oil contamination primarily arises from two sources: external contaminants and internal byproducts. External contaminants include dust, dirt, and other environmental pollutants that enter the system during operation. Internal byproducts are generated within the system due to the breakdown of oil additives, oxidation, and the presence of water. Water contamination in lube oil is particularly problematic as its presence can result in various problems. For instance, water can cause rust and corrosion, which can damage machinery and equipment. Moreover, water can cause oxidation, which can lead to the degradation of oil and a decrease in its effectiveness.



Functionality of Lube Oil Coalescing Dehydration Oil Purifiers

Lube oil coalescing dehydration oil purifiers are designed to remove water, particulates, and other contaminants from lubricating oils through a multi-stage purification process. The primary functions of these purifiers include:

1. Coalescing - The purifier utilizes coalescing technology to merge small water droplets suspended in the oil into larger droplets, facilitating their separation from the oil phase.

2. Dehydration - Through dehydration processes such as vacuum evaporation or centrifugal separation, water content in the oil is reduced to acceptable levels, minimizing the risk of corrosion and wear in machinery.

3. Filtration - Advanced filtration systems within the purifier trap solid particles and impurities, preventing them from circulating in the oil and causing damage to critical components.



Technical parameters

Flow rate - L/min : 25, 50, 100, 150, 200, 400

Rated pressure - MPa : 0.6

Initial pressure loss - Mpa : ≤ 0.1

Filtered water content - ppm : ≤ 100

Coarse filtration - μm : 100

Grade 1 filter rating - μm : 10, 20

Grade 2 filter rating - μm : 3, 5

Pressure differentials - Mpa : 0.2

Working temperature - °C : 25 - 80

Recommended viscosity - cSt : 10-120

Voltage : AC 380V(Three-phase) 50Hz

Motor power - kw : 0.75, 1.1, 2.2, 4, 5.5, 13

Weight - kg : 150, 200, 300, 520, 860, 2860



Benefits

1. Improved Equipment Performance

By removing water and contaminants from the lubrication oil, the lube oil coalescing dehydration oil purifier helps to improve the performance and efficiency of machinery and equipment. This is because water and contaminants can cause friction, wear, and corrosion, which can lead to increased energy consumption, reduced productivity, and shorter equipment lifespan.

2. Extended Equipment Life

The lube oil coalescing dehydration oil purifier helps to extend the service life of machinery and equipment by preventing the build-up of contaminants in the lubrication system. By keeping the oil clean and dry, the purifier reduces the risk of wear, corrosion, and other damage, which can lead to expensive repairs and replacements.

3. Reduced Maintenance Costs

The lube oil coalescing dehydration oil purifier helps to reduce maintenance costs by preventing the premature failure of lubrication components, such as bearings, seals, and gears. By keeping the oil clean and dry, the purifier extends the service life of these components, reducing the need for frequent replacements and repairs.

4. Enhanced Safety

The lube oil coalescing dehydration oil purifier helps to enhance safety in the workplace by preventing equipment malfunctions and accidents caused by worn-out or contaminated lubrication oil. By ensuring the smooth operation of machinery and equipment, the purifier helps to minimize the risk of injury to operators and maintenance personnel.

5. Environmental Benefits

In addition to the practical advantages, the lube oil coalescing dehydration oil purifier also offers environmental benefits. By preventing the release of contaminated oil into the environment, the purifier helps to protect ecosystems from the harmful effects of lubrication oil waste. Furthermore, by extending the service life of equipment, the purifier reduces the need for new machinery, which in turn reduces energy consumption and carbon emissions.



Applications

The lube oil coalescing dehydration oil purifier finds applications in various industries, including:

1. Automotive - The purifier is used in vehicles, buses, and trucks to maintain the quality of engine oils, transmission fluids, and hydraulic oils.

2. Manufacturing - It is employed in factories to ensure the cleanliness of lubricants used in machinery, such as hydraulic systems, gearboxes, and bearings.

3. Power generation - The purifier is used in power plants to maintain the quality of lubricants in turbines, generators, and other equipment.

4. Mining and construction - The equipment is utilized in these industries to purify lubricants used in heavy machinery, such as excavators, loaders, and cranes.

5. Marine - The lube oil coalescing dehydration oil purifier is used in ships and boats to maintain the quality of lubricants in engines, transmissions, and other equipment.



FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
