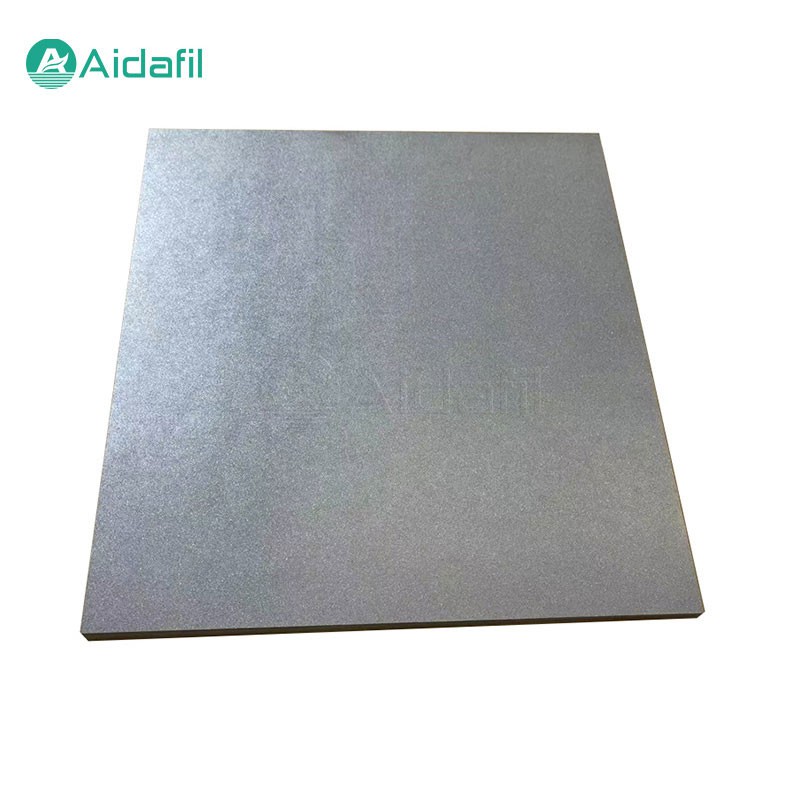

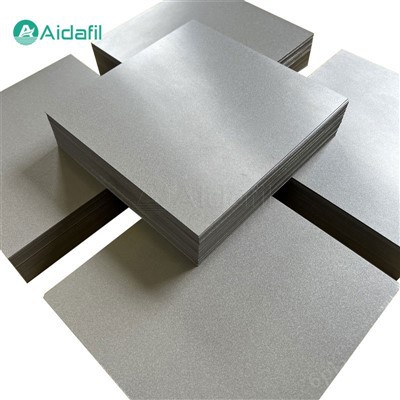

High Purity Titanium Powder Sintered Filter Plate

The high purity titanium powder sintered filter plate is a filter material made by sintering process using titanium powder as raw material. This filter plate has the characteristics of porosity and can be used for filtering various liquids and gases.



Performance characteristics

1. Aperture and porosity

The pore size of the high purity titanium powder sintered filter plat can be adjusted in the range of 0.2μm to 80um, and the porosity is high, which helps to improve the filtration efficiency and reduce the filtration resistance.

2. Temperature resistance

The high purity titanium powder sintered filter plat can be used in the temperature range of -200°C to 1000°C, showing excellent high temperature resistance and resistance to rapid cooling and heating.

3. Chemical stability

Titanium has excellent chemical stability and can maintain its performance even in strong acid and alkali environments, which makes the high purity titanium powder sintered filter plat very suitable for filtration applications in the chemical and pharmaceutical industries.

4. Mechanical properties

The high purity titanium powder sintered filter plat has good mechanical strength and stability, 5. Antimicrobial properties

Titanium does not react with microorganisms, so high purity titanium powder sintered filter plats are particularly important in filtration applications in the fields of bioengineering and medicine.



Application areas

1. Pharmaceutical industry

In the pharmaceutical industry, titanium powder sintered filter plates are used to filter liquid medicines, biological products, etc. to ensure the purity and safety of the products.

2. Water treatment industry

In the field of water treatment, titanium powder sintered filter plates can be used to remove suspended matter, bacteria and other pollutants in water to provide clean water sources.

3. Food industry

In the food industry, titanium powder sintered filter plates are used for filtering juices, edible oils, etc. to remove impurities and microorganisms.

4. Chemical industry

In the chemical industry, titanium powder sintered filter plates are used to filter various chemicals to prevent impurities from entering the production process.

5. Other applications

In addition, titanium powder sintered filter plates are also used in petrochemicals, metallurgical industries, gas purification and other fields, showing its wide applicability.



Parameters

	Value of particles blocked in liquid		Permeability (no less than)
Model	Filtration efficiency (98%)	Filtration efficiency (99.9%)	Permeability (10-12m2)	Relative permeability	MPa
ADTG-1	1	3	0.05	5	3
ADTG-3	3	5	0.08	8	3
ADTG-5	5	10	0.3	30	3
ADTG-10	10	14	0.8	80	3
ADTG-15	15	20	1.5	150	3
ADTG-20	20	32	2	200	3
ADTG-35	35	52	4	400	2.5
ADTG-60	60	85	6	600	2.5
ADTG-80	80	124	10	1000	2.5



Raw materials and preparation

1. Raw material selection

The raw material of titanium powder sintered filter plate is mainly industrial high-purity titanium powder, and the purity usually reaches more than 99.4%. As a lightweight, high-strength and corrosion-resistant metal, titanium exhibits excellent performance in filter materials. The particle size, shape and purity of titanium powder will affect the quality and performance of the final product.

2. Powder preparation

The preparation of titanium powder usually involves several steps, including the refining of titanium ore, the production of sponge titanium, and the subsequent ball milling or atomization powder making process. These steps ensure the purity and particle size distribution of titanium powder, providing a good foundation for the subsequent sintering process.



Molding process

1. Powder classification

Before molding, titanium powder needs to be classified to ensure that the particle size distribution of the powder meets the specific filtration accuracy requirements. Powder classification can be achieved by screening, airflow classification or other physical methods.

2. Molding technology

Titanium powder is usually molded by cold isostatic pressing or hot isostatic pressing technology. In these processes, the powder is compressed into a green body with a certain shape and density. Molding pressure, holding time and temperature are all key parameters affecting molding quality.



Sintering process

1. Sintering principle

Sintering is to heat the molded titanium powder green body at high temperature to diffuse the atoms between the powder particles, thereby achieving metallurgical bonding between the particles. This process not only enhances the mechanical strength of the material, but also forms a stable pore structure.

2. Sintering conditions

Sintering is usually carried out under vacuum or inert gas protection to prevent titanium powder oxidation. Sintering temperature, holding time, heating rate and cooling rate will affect the microstructure and properties of the sintered body.



Post-processing and processing

1. Machining

The sintered filter plate may require further machining, such as cutting, drilling, grinding, etc., to meet specific size and shape requirements.

2. Surface treatment

In order to improve the corrosion resistance and biocompatibility of the filter plate, it is sometimes subjected to surface treatment, such as anodizing, coating, etc.
