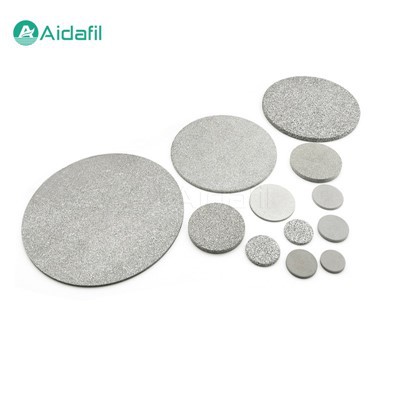

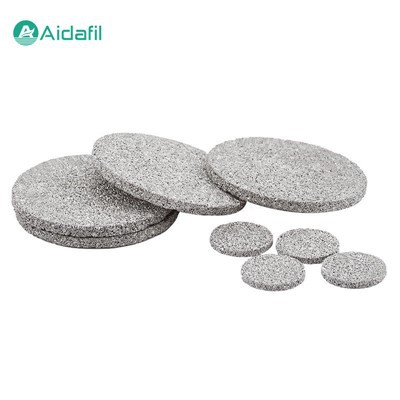

Good Stability Stainless Steel Powder Sintered Filter Disc

The good stability stainless steel powder sintered filter disc is a metal filter material with unique properties and wide application. By sintering stainless steel powder at high temperature, a sheet-like filter material with a certain pore structure and strength is formed. That is the stainless steel powder sintered filter disc. This filter disc combines the excellent characteristics of stainless steel and the advantages of powder sintering technology and has become an indispensable key component in many industrial fields.



Production process of good stability stainless steel powder sintered filter disc

1. Selection of stainless steel powder

The choice of high-quality stainless steel powder has a significant impact on the performance of the final filter due to its particle size, shape, and chemical composition.

2. Powder mixing and molding

The stainless steel powder is uniformly mixed with appropriate additives, and then a blank body with a certain shape and size is made by a specific molding process, such as pressing.

3. High temperature sintering

The green body is sintered in a high temperature furnace. During the sintering process, the powder particles are connected and fused to form a solid porous structure.

4. Follow-up processing

Depending on the requirements, some subsequent processing may be performed, such as surface treatment, trimming, etc., to ensure that the filter achieves the best performance and dimensional accuracy.



Parameters

Material	Stainless steel 304, 316L, 904L, Hastelloy
Gap	Minimum 0.015mm
Diameter	Customized
Filtering direction	Customized (from inside to outside, or from outside to inside)



Performance characteristics of good stability stainless steel powder sintered filter disc

1. Excellent filtration performance

With accurate pore size distribution, it can effectively intercept impurities of various particle sizes and achieve efficient filtration.

2. High strength and rigidity

Due to the characteristics of stainless steel, it has high mechanical strength and rigidity, capable of withstanding greater pressure and impact.

3. Good corrosion resistance

The stainless steel material endows it with excellent corrosion resistance, enabling it to operate stably in corrosive environments such as acid and alkali for a long time.

4. High temperature resistance

It can maintain stable performance at higher temperatures and adapt to some high-temperature operating conditions.

5. Reusability

After proper cleaning and treatment, it can be reused multiple times to reduce the cost of use.

6. Good stability

Under different working conditions, the performance remains relatively stable and reliable for a long time.



Application

The good stability stainless steel powder sintered filter disc is widely used in the following fields:

1. Petrochemical industry

It is used for liquid filtration in refining and chemical production processes, such as filtering crude oil, refined oil, and various chemical solvents.

2. Pharmaceutical industry

Ensure the purity of pharmaceutical liquids, intermediates, etc., and ensure the quality of pharmaceutical products.

3. Food and beverage industry

Filter food and beverages to remove impurities and microorganisms to ensure food safety.

4. Environmental protection

It plays an important role in wastewater treatment, waste gas treatment, etc., removing suspended solids and harmful gases from water.

5. Electronics industry

Filter high-purity gases and liquids in the production of electronic components.

6. Automotive industry

Used for automotive engine fuel filtration, oil filtration, etc.

7. Aerospace

To meet the demanding filtration requirements and ensure the normal operation of equipment and systems.

8. Machinery manufacturing industry

Filtration of hydraulic systems, lubrication systems, etc.



Filtration principle

When the fluid passes through the filter disc, particles larger than the aperture of the filter disc are trapped, while particles smaller than the aperture can pass through smoothly. This filtration method can effectively remove impurities, suspended solids, particles, etc. in the fluid, thereby improving the purity and quality of the fluid. At the same time, due to the porous structure of the filter disc, it can also play a certain role in blocking and sharing the flow, so that the fluid can pass through the filtration system more evenly.
