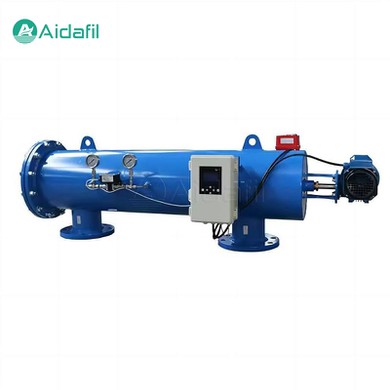

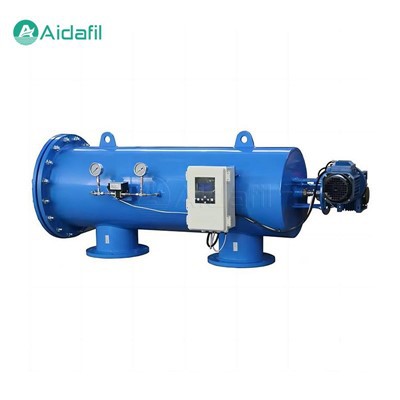

Water Filtration Horizontal Type Automatic Self Cleaning Filter

The water filtration horizontal type automatic self cleaning filter can automatically clean the filter screen and remove contaminants to ensure the continuous operation of the filtration system. It has a very good filtration effect on various viscous substances, colloidal particles and mud sand in water.



Water enters the inlet and first passes through the coarse filter screen to filter out larger particles of impurities, and then reaches the fine filter screen. During the filtration, the fine filter screen gradually accumulates dirt and impurities in the water to form a filter impurity layer. Since the impurity layer accumulates on the inner side of the fine filter screen, a pressure difference is formed on the inner and outer sides of the fine filter screen. When the pressure difference of the filter reaches the preset value, it will start to clean automatically. During this period, the clean water supply is continuously flowing, the cleaning valve is opened, and the water pressure in the cleaning chamber drops significantly. Through the pressure difference between the filter element and the suction pipe, a suction force is generated between the suction pipe and the cleaning chamber through the negative pressure absorber, forming a suction. At the same time, the variable speed motor drives the suction pipe to make a spiral motion along the axial direction. The combination of the axial motion and the motion of the suction pipe completely cleans the entire inner surface of the filter element. The entire cleaning process only takes tens of seconds. The drain valve is closed at the end of cleaning, and the next cleaning cycle begins.



Parameters

Single unit flow	50-1200M3/H, larger flow can be realized by multiple single units in parallel
Minimum working pressure	0.2Mpa
Maximum working pressure	1.0/1.6/2.5/4.0Mpa
Maximum operating temperature	80°C
Filtration accuracy	130~3500 microns
Control mode	Differential pressure, timing or manual
Cleaning time	60s
Cleaning mechanism speed	14-20rpm
Cleaning pressure loss	0.01Mpa
Control voltage	AC 220V
Rated operating voltage	Three-phase, AC220V /380V, 50HZ



Application field

- Water for the pharmaceutical industry

- Water for the food industry

- Water for industrial product manufacturing

- Textile and papermaking water

- Quality water supply for buildings

- Ultrapure water for the electronics industry

- Seawater desalination

- Sewage treatment, etc



Benefits of using the equipment

As a high-efficiency water treatment equipment, the use of the horizontal type automatic self cleaning filter can bring many benefits, including but not limited to the following:

1. Improve water quality

The horizontal type automatic self cleaning filter can effectively remove suspended solids, sediment, particulate matter and other impurities in water, significantly improving water quality and meeting the requirements of different industries for water quality.

2. Reduce maintenance costs

Due to its automatic cleaning function, the frequency and associated costs of manual cleaning are reduced, while the service life of the filter is extended, thus reducing long-term maintenance costs.

3. Increase productivity

The automatic cleaning function guarantees that the filtration system can continue to operate without downtime for cleaning, which means improved production efficiency and maximum use of production time for enterprises that require continuous production.

4. Energy saving and environmental protection

The horizontal type automatic self cleaning filter does not require additional water and energy during the cleaning process, which saves water resources and reduces energy consumption, in line with current environmental protection concepts.

5. Ensure equipment safety

By removing impurities from the water, it can reduce the wear and clogging of subsequent water-using equipment, such as boilers, cooling towers, heat exchangers, etc., prolong the service life of the equipment, and ensure the safe operation of the equipment.

6. Adaptable

The horizontal type automatic self cleaning filter is suitable for a variety of water quality and quantity conditions, and can be used in a variety of industrial environments, such as chemical, power, pharmaceutical, food, and beverage industries.

7. Intelligent management

Modern horizontal self-cleaning filters are mostly equipped with intelligent monitoring systems, which can monitor the operating status and water quality of the filter in real time, allowing managers to adjust and optimize operating parameters in a timely manner.

8. Improve the working environment

Through effective filtration, wastewater and sludge emissions in the production process can be reduced, improving the working environment, and also helping enterprises comply with environmental regulations and enhance their corporate image.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
