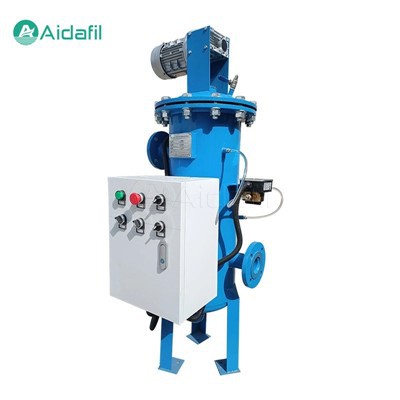

Vertical Type Automatic Self Cleaning Filter Housing

The vertical type automatic self cleaning filter housing is a sophisticated filtration device designed to remove contaminants from liquids without interrupting the flow of the system. This type of filter is particularly useful in industrial settings where continuous filtration is required to maintain the quality and efficiency of the production process.



Features of the Vertical Type Automatic Self Cleaning Filter

1. Design and Construction

The vertical type automatic self cleaning filter is characterized by its unique design, which allows for efficient filtration and easy maintenance. The filter consists of a vertical housing made of high-quality stainless steel or other corrosion-resistant materials, ensuring durability and longevity in harsh environments. The housing contains a series of stacked filter elements, each responsible for capturing specific sizes of particles.

2. Filtration Mechanism

The filtration mechanism of the vertical type automatic self cleaning filter is based on the principle of surface filtration, where contaminants are trapped on the surface of the filter element rather than being absorbed into the filter media. This allows for more efficient removal of particles and reduces the risk of clogging and reduced flow rates over time.

3. Self Cleaning Function

One of the most significant advantages of the vertical type automatic self cleaning filter is its ability to clean itself without requiring manual intervention. This is achieved through a sophisticated control system that monitors the pressure differential across the filter elements and initiates a cleaning cycle when necessary. During the cleaning cycle, the filter elements are automatically rotated to expose new surfaces for filtration, while the captured contaminants are flushed out of the system using a backwash mechanism.



Parameters

Single unit flow	50-1200M3/H, larger flow can be realized by multiple single units in parallel
Minimum working pressure	0.2Mpa
Maximum working pressure	1.0/1.6/2.5/4.0Mpa
Maximum operating temperature	80°C
Filtration accuracy	130~3500 microns
Control mode	Differential pressure, timing or manual
Cleaning time	60s
Cleaning mechanism speed	14-20rpm
Cleaning pressure loss	0.01Mpa
Control voltage	AC 220V
Rated operating voltage	Three-phase, AC220V /380V, 50HZ



Applications of the Vertical Type Automatic Self Cleaning Filter

1. Industrial Processes

The vertical type automatic self cleaning filter is widely used in various industrial processes, including water treatment, wastewater management, food and beverage production, pharmaceutical manufacturing, and chemical processing. Its ability to handle large volumes of liquid while maintaining high levels of filtration efficiency makes it an ideal solution for these applications.

2. Power Generation

In power generation facilities, the vertical type automatic self cleaning filter plays a crucial role in maintaining the quality of cooling water systems. By removing contaminants such as sediment, rust, and biological matter from the water, the filter helps to prevent scaling and corrosion of critical equipment, ensuring optimal performance and extended lifespan.

3. Marine Applications

The vertical type automatic self cleaning filter is also commonly used in marine applications, such as shipboard water purification systems and desalination plants. Its robust construction and efficient filtration capabilities make it well-suited for handling seawater, which can be highly corrosive and contain a wide range of impurities.



Benefits of Using the Vertical Type Automatic Self Cleaning Filter

1. Improved Filtration Efficiency

By utilizing surface filtration and an automated cleaning process, the vertical type automatic self cleaning filter provides superior filtration efficiency compared to traditional filters. This ensures that contaminants are effectively removed from the liquid, resulting in cleaner and purer output.

2. Reduced Maintenance Costs

The self-cleaning feature of the vertical type automatic self cleaning filter significantly reduces maintenance costs associated with regular filter changes and cleaning. The automated cleaning process eliminates the need for frequent manual intervention, saving time and labor costs.

3. Increased System Uptime

By continuously monitoring and maintaining the filtration process, the vertical type automatic self cleaning filter helps to minimize downtime caused by clogged or damaged filter elements. This ensures that the overall system remains operational and productive at all times.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
