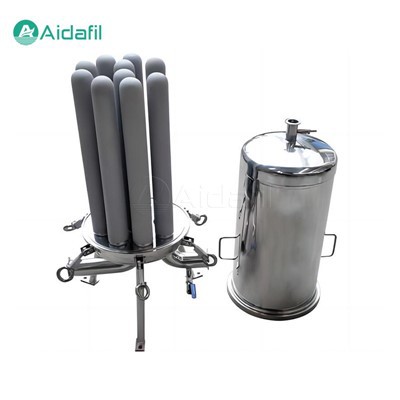

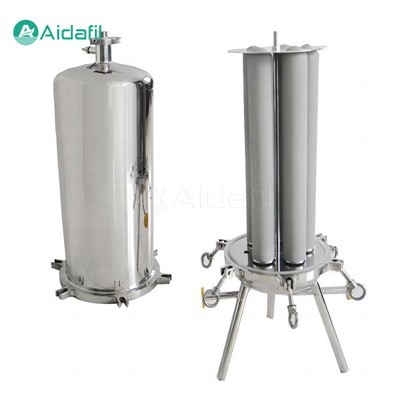

Top-Quality Titanium Rod Filter

The core component of the top-quality titanium rod filter is the titanium rod filter element, which is made of high-purity titanium powder through a special sintering process. It is a type of filtration equipment widely used in industrial and laboratory environments. This type of filter is favored by many industries for its high efficiency, stability and durability.



The titanium rod filter element has many advantages, including no particle shedding, no contamination of liquid medicine. It has excellent high temperature resistance and can work stably in wet environments up to 200°C. It also has good acid and alkali corrosion resistance and oxidation resistance, and can adapt to a variety of harsh environments. In addition, the titanium rod filter element has low pressure difference, small footprint and large flow rate. And it has high mechanical strength and high precision, can be regenerated online, is easy to clean, and boasts long service life. In terms of chemical stability, it can withstand acid and alkali erosion and can be used in a large pH range. Narrow pore size distribution ensures high separation efficiency. The strong antimicrobial ability ensures no interaction with microorganisms, which makes it have a wide range of application prospects in the fields of bioengineering and medicine.



Working principle

The working principle of our top-quality titanium rod filter is based on physical interception and surface adsorption. When the fluid containing impurities passes through the filter, the microporous structure on the titanium rod can effectively intercept the suspended particles and prevent them from entering the pure area downstream. At the same time, the titanium metal has good biocompatibility and chemical stability, which can maintain its filtration efficiency in a variety of environments. In addition, the surface of the titanium rod can also be specially treated to enhance the adsorption ability of certain specific pollutants.



Structure and materials

Our top-quality titanium rod filter element is mainly made of titanium powder, which has excellent strength, corrosion resistance and high temperature resistance. The diameter and length of titanium rods can be customized according to different application needs to meet the requirements of different flow rates and filtration accuracy. In some high-demand applications, the surface of titanium rods may be coated with a special coating, such as oxide film or catalytic film, to further improve filtration efficiency and service life.



Parameters

Main materials	Stainless Steel 304. 316L
Filtering flow	3 - 100 t/h
Working pressure	0.1 - 0.6Mpa
Filter element length	5'', 10'', 20'', 30'', 40''
Use temperature	-10 - 200°C
Filtering accuracy	0.45 - 100μm
Filter element connection	M20, M30, 222, 226
Titanium rod size	Φ60×300, Φ60×510, Φ60×750, Φ60×1000



Advantages

1. High-efficiency filtration. Titanium rod filters can remove extremely small suspended particles, even up to the sub-micron level, making them suitable for applications with extremely high water quality requirements.

2. Strong chemical stability. Titanium metal has good resistance to most acids, alkalis, and salts, so the titanium rod filter can maintain stable performance when handling various chemical solutions.

3. Good biocompatibility. Titanium does not produce toxic reactions to human cells, making it widely used in medical and biopharmaceutical applications.

4. Easy to clean and maintain. Titanium rod filters are usually modular in design, making it very convenient to disassemble and clean. In addition, the corrosion resistance of titanium rods also reduces material loss during cleaning.

5. Reusable. Under proper cleaning and maintenance conditions, titanium rod filters can be reused multiple times, thus reducing operating costs.



Applications

The top-quality titanium rod filters are used in a wide range of fields, including but not limited to:

1. Water treatment. Used to remove suspended particles and microorganisms from tap water and improve the quality of drinking water.

2. Biopharmaceutical. Remove impurities from culture media and medicines during the production process to ensure product quality.

3.Food processing. Used to filter liquid raw materials such as juice and alcohol to remove impurities and improve taste.

4. Chemical production. Removing impurities in catalysts and reaction products during chemical reactions to improve product purity.

5. Electronics industry. Used to clean chemicals and solvents in the semiconductor manufacturing process to ensure the cleanliness of the production environment.



Maintenance

The key to maintaining a titanium rod filter is to regularly check and clean the filter element. According to the frequency of use and the nature of the filter medium, a reasonable cleaning plan is developed. For minor pollution, a simple backwash can restore the filtration performance; if it encounters heavy pollution, it is necessary to use chemical cleaning methods, choose an appropriate cleaning agent, and strictly follow the operating procedures to avoid damage to the filter element.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
