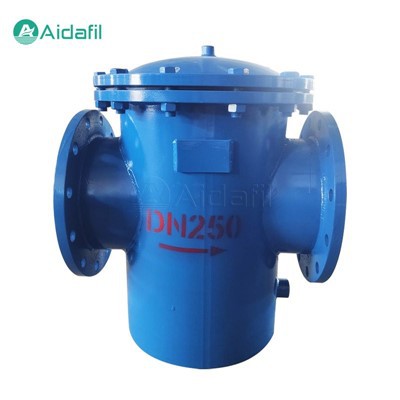

Convenient And Efficient Basket Filter Equipment

The convenient and efficient basket filter equipment is named because the shape of the internal filter is similar to the baskets used in daily life. It is usually composed of a cylindrical shell and an internal filter screen, which is used to capture solid particles flowing through. The liquid to be treated enters from the inlet of the filter, and when it passes through the internal filter, larger solid particles are trapped on the filter, while the clean fluid flows out from the outlet.



Characteristics

The convenient and efficient basket filter equipment has the following characteristics:

1. High filtration efficiency. When the filter basket rotates, the filter screen and filter element are constantly updated, ensuring that the filtration effect remains at a high level.

2. Strong adaptability. Basket filters are suitable for filtration of liquids with high viscosity, temperature, and corrosiveness, with adjustable filtration accuracy.

3. Simple structure. The basket filter has a compact structure and a small footprint, making it easy to install and maintain.

4.Easy to operate. The filter is automatically controlled, making it easy to operate and saving labor costs.

5. Easy maintenance. The filter basket, filter screen and filter element can be easily disassembled and replaced, reducing maintenance costs.

6. Good safety. The basket filter has an overload protection function to ensure the safe operation of the equipment.

7. Energy saving and environmental protection. The basket filter adopts a high-efficiency drive device, which has low operating energy consumption and is conducive to energy saving and emission reduction.



Structure and design

The convenient and efficient basket filter equipment is usually composed of the following basic components:

1. Shell. Usually cylindrical, it can be made of materials such as stainless steel, carbon steel, or plastic to adapt to different working environments and fluid types.

2. Filter. It is the core part of the basket filter and is responsible for capturing the flowing solid particles. The material, pore size and weaving method of the filter can be selected according to the size of the particles to be filtered.

3. Inlet and outlet. Fluid enters the filter through the inlet and flows out from the outlet after being filtered. Inlets and outlets are designed to ensure uniform fluid distribution to improve filtration efficiency.

4. Sewage outlet. used to remove impurities accumulated on the filter screen, usually located at the bottom of the filter, and the trapped solid particles can be discharged by opening the sewage valve.



Working Principle

The working principle of the convenient and efficient basket filter equipment is relatively simple. The fluid to be treated enters the inside of the filter from the inlet. When passing through the filter screen, particles larger than the pore size of the filter screen are trapped, while the clean fluid flows out from the outlet through the pore size of the filter screen. As the use time increases, more and more impurities accumulate on the filter screen, which may lead to a decrease in filtration efficiency. At this time, the filter screen needs to be cleaned or replaced.



Application Field

The application of the convenient and efficient basket filter equipment is very extensive, including but not limited to the following fields:

1. Water treatment. used to remove suspended solids, sediment, corrosion products, etc. from water systems.

2. Chemical industry. During the production of chemical products, solid impurities in raw materials or products are removed.

3. Food and Beverage. Used to clarify food and beverages such as alcohol, juice, cooking oil, etc.

4. Oil and gas. It plays a role in water injection in oil wells, gas purification in petrochemical processes, etc.



Performance Characteristics

1. High efficiency. Due to the large filter area, there is enough space for the fluid to pass through, so it can handle larger flows.

2. Easy to maintain. The filter can be removed for easy cleaning or replacement.

3. High reliability. simple structure, prone to failure.

4. Diversity. Filters of different materials and specifications can be selected according to different application requirements.



Specification

Material of housing	Cast iron, carbon steel	Stainless steel
Material of strainers	Stainless steel
Material of seal components	Oil-resistant asbestos, flexible graphite, PTFE
Working temperature	-30 ~ +380°C	-80 ~ +450°C
Filtration precision	10 ~ 300 meshes
Nominal pressure	0.6 ~ 6.4 Mpa (150Lb ~ 300Lb)
Connection	Flange, welding



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
