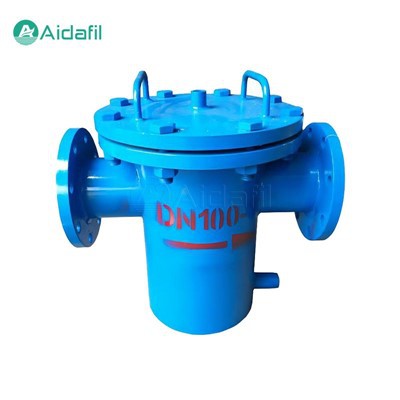

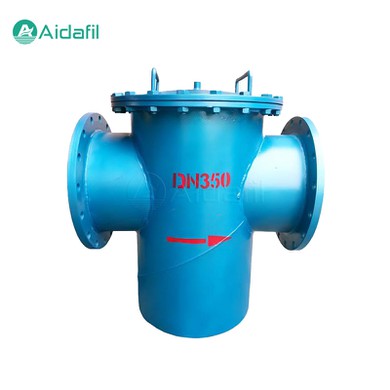

Perfect Performance Basket Filter

The Perfect Performance Basket Filter serves as a piece of solid-liquid separation equipment, mainly used for liquid filtration and particle separation. It captures solid particles in the liquid through a basket equipped with a filter screen, so as to achieve liquid purification and purification.



The Perfect Performance Basket Filter is mainly composed of a metal shell, an internal filter basket, a filter screen, and the inlet and outlet. The metal shell is used to support the entire filter, the internal filter basket is used to place the filter screen, and the filter screen is used to capture solid particles. The inlet and outlet are used to connect the filter and the liquid source for liquid entry and outflow.



The liquid enters from above the basket filter. When it passes through the filter screen in the basket, the solid particles are captured by the filter screen, while the clean liquid flows out. The filtration effect of the basket filter depends on the material, aperture and installation method of the filter screen. The filter material' pore size can be selected according to the demand.



Parameters

Material of housing	Cast iron, carbon steel	Stainless steel
Material of strainers	Stainless steel
Material of seal components	Oil-resistant asbestos, flexible graphite, PTFE
Working temperature	-30 ~ +380°C	-80 ~ +450°C
Filtration precision	10 ~ 300 meshes
Nominal pressure	0.6 ~ 6.4 Mpa (150Lb ~ 300Lb)
Connection	Flange, welding



Advantages and Features

The Perfect Performance Basket Filter has the following advantages and characteristics:

1. Simple structure

The structure of the basket filter is relatively simple, making it easy to manufacture and maintain. It is composed of a metal frame and an internal basket, without complex mechanical parts, so it is highly reliable.

2. Easy to operate and maintain

The operation and maintenance of the basket filter is relatively easy. Just pour the liquid into the basket and wait for the filtration process to complete. It is also very convenient to clean the filter, just remove the filter and rinse it with water.

3. Wide range of applications

Basket filters are suitable for filtration of various liquids, especially for liquids with low viscosity and large solid particles. It can be used for solid-liquid separation in chemical, food, beverage, pharmaceutical and other industries.

4. Adjustable filter area

The filter area of the basket filter can be adjusted according to needs. The filter area can be increased by replacing filters with different pore sizes or increasing the number of baskets to meet the requirements of different filter volumes.

5. High-efficiency filtration

The filtration efficiency of the basket filter is higher. Since the liquid enters from the top of the basket, when passing through the filter, the solid particles are captured, while the clean liquid flows out, so the filtration effect is better.



Basket Filter Application Field

1. Chemical industry

In chemical production, basket filters can be used to separate solid particles in mixtures to improve product purity and quality. For example, in the production process of synthetic rubber, plastics, dyes, coatings, etc., basket filters can effectively remove solid impurities and ensure product performance.

2. Food and beverage industry

In the food and beverage industry, basket filters can be used to remove impurities from liquids to ensure the quality of products. For example, in the production process of juice, beverages, dairy products, etc., basket filters can effectively remove suspended solids, microorganisms and other impurities to ensure product taste and hygiene standards.

3. Pharmaceutical industry

In the pharmaceutical industry, basket filters can be used to separate solid particles in drug suspensions to improve drug purity and quality. For example, in the production process of antibiotics, vitamins, injections, etc., basket filters can effectively remove impurities such as microorganisms and cell debris to ensure drug safety and effectiveness.

4. Environmental protection industry

In the field of environmental protection, basket filters can be used to treat industrial wastewater, domestic sewage, etc. Through basket filters, solid particles in wastewater can be effectively removed and environmental pollution can be reduced.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
