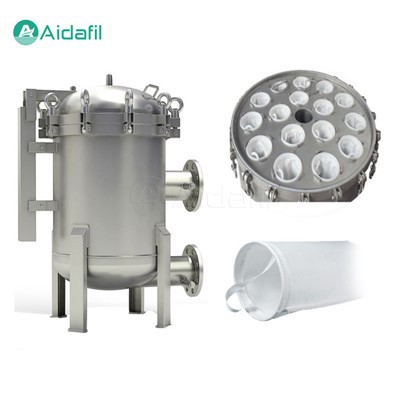

Efficient Reliable Multi-Bag Filter

The efficient reliable multi-bag filter is a large-flow liquid filtration equipment, suitable for liquid purification, chemical, food, pharmaceutical and other industries. It is characterized by adjustable number of filter bags, large filtration area, high filtration efficiency, and easy replacement of filter bags. The core component of the bag filter is the filter bag, which ranges from 2 bags to 24 bags. Users can choose according to actual needs.



Multi-bag model table

Model	Reference flow rate	Inlet & outlet	Cylinder Specifications	Filter bag specification / number	Design pressure	Opening method
ADB-2 II	40-100 T/H	DN80 - DN125	ø 460*1530*3mm	2# / 2 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-3 II	60-150 T/H	DN100 - DN150	ø 510*1530*3mm	2# / 3 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-4 II	80-200 T/H	DN100 - DN150	ø 610*1530*4mm	2# / 4 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-5 II	100-250 T/H	DN100 - DN150	ø 660*1530*4mm	2# / 5 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-6 II	120-300 T/H	DN100 - DN150	ø 710*1530*5mm	2# / 6 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-8 II	160-400 T/H	DN150 - DN250	ø 810*1530*5mm	2# / 8 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-10 II	200-500 T/H	DN150 - DN250	ø 960*1530*5mm	2# / 10 filter bags	1.0MPA	Quick Open Eye Bolts
ADB-12 II	240-600 T/H	DN150 - DN300	ø 1110*1530*6mm	2# / 12 filter bags	1.0MPA	Quick Open Eye Bolts



How it works

The efficient reliable multi-bag filter achieves liquid purification relying on the use of the filter bags to intercept the solid particles in the liquid. When the liquid containing solid particles enters the filter through the liquid inlet, the liquid flows outside the filter bag, and the solid particles are intercepted by the fiber layer inside the filter bag to achieve filtration. The filtered liquid is discharged through the liquid outlet in the center of the filter bag to complete the filtration process.



Structural characteristics

1. The number of filter bags is adjustable

The multi-bag filter can set the number of filter bags ranging from 2 bags to 24 bags according to the user request. The user can adjust the number of filter bags according to the filtration effect and production needs during actual use.

2. Large filtration area

The multi-bag filter is arranged in parallel with multiple filter bags, resulting in a large filtration area to meet the filtration requirements of large-flow liquids.

3. Quick-open design

The multi-bag filter adopts a quick-open design, which is very convenient to replace the filter bag. Users only need to open the filter bag snap ring to easily take out the filter bag for replacement.

4. Filter bags are made of various materials

The multi-bag filter can be made of different materials according to the filtration requirements of different industries, such as polyester, polypropylene, nylon, etc.

5. Complete filter bag specifications

The multi-bag filter offers a variety of filter bag specifications, allowing users to choose the appropriate filter bag according to their actual needs.



Application

1. Chemical industry

The multi-bag filter is widely used in liquid filtration in the chemical industry, such as pesticides, pigments, resins, paints, etc.

2. Food industry

The multi-bag filter can be used for liquid filtration in the food industry, such as beverages, juices, milk, syrups, etc.

3. Pharmaceutical industry

The multi-bag filter is suitable for liquid filtration in the pharmaceutical industry, such as pharmaceutical liquids, biological products, health products, etc.

4. Environmental protection industry

The multi-bag filter can be used for liquid filtration in environmental protection industries, such as wastewater, sludge, landfill leachate, etc.

5. Textile industry

The multi-bag filter is used in the filtration of liquids in the textile industry, such as dyes, additives, and water washes.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
