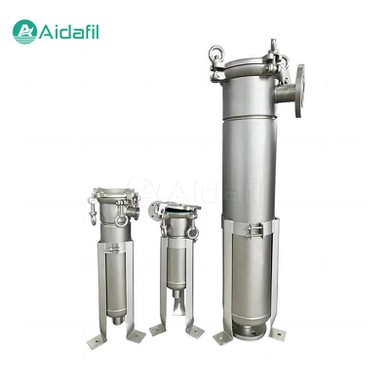

Compact Side-Inlet Bottom-Outlet Single Bag Filter

As a high-performance liquid filtration device, the compact side-inlet bottom-outlet single bag filter achieves excellent filtration results by removing solid particles, impurities and microorganisms in the liquid, ensuring the purity and safety of the liquid. Inside the filter, there is only one filter bag that plays its role. It is widely used in various fields such as industry, agriculture, medical treatment and life.



The compact side-inlet bottom-outlet single bag filter has an inlet on the side and an outlet on the bottom. Firstly, the liquid to be filtered enters the inside of the filter from the inlet, and then is filtered through the filter bag. The filter bag is made of special filter material, which can effectively intercept suspended solids and particulate impurities in the liquid. At the same time, the pore size of the filter bag can be adjusted according to needs to meet the filtration needs of different users. The filtered liquid flows out from the outlet to complete the entire filtration process.



Structural features

1. Filter housing. Filter housing is usually made of stainless steel or other corrosion-resistant materials to ensure the stability and durability of the filter.

2. Support basket. The support basket is used to support the filter bag, which is sturdy in structure and can ensure that the filter bag will not break or deform during use.

3. Filter bag. The filter bag is the core part of the filter, usually made of polypropylene or other polymer materials, with excellent filtration performance and acid and alkali resistance.

4. Seals. Seals are used to ensure the tightness of the filter and prevent liquid leakage.

5. Inlet and outlet. The design of the inlet and outlet allows liquids to enter and leave the filter smoothly.



Parameters

Filtering area	0.1-0.5m2
Operating pressure	1.0Mpa
Filter cylinder diameter	219mm
Flow rate	40T/H
Materials	304, 316 stainless steel
Filtering accuracy	0.1-100μm
Inlet & outlet caliber	DN25-DN80



Installation and maintenance

1. Installation. When installing the filter, ensure that the inlet and outlet directions are correct and the filter is installed vertically in the pipeline system. At the same time, care should also be taken to avoid the filter being affected by pipeline stress.

2. Use. During use, the performance of the filter should be checked regularly. If the filtration effect is found to decrease or the pressure difference increases, the filter bag should be replaced in time.

3. Maintenance. In order to prolong the service life of the filter, it should be cleaned and maintained regularly. Specifically, the filter case and supporting net basket can be cleaned regularly to remove impurities and dirt attached to it. At the same time, the seal should also be checked whether it is in good condition. If there is any damage or aging phenomenon, it should be replaced in time.



Application field

The compact side-inlet bottom-outlet single bag filters are widely used in various liquid filtration scenarios, especially in the chemical, petroleum, pharmaceutical, food processing and other industries. For example, in the chemical industry, it can be used for the refining of raw materials, the purification of products, and the treatment of wastewater. In the petroleum industry, it is mainly used for the purification and recovery of oil products. In the pharmaceutical and food processing industries, it is used to ensure the quality and safety of products.



Precautions

When using a compact side-inlet bottom-outlet single bag filter, the following points should be taken into account:

1. Select the appropriate material. Select the appropriate filter bag material according to the nature of the filter medium and working conditions.

2. Make sure the installation is correct. When installing, follow the instructions to ensure that all seals are installed in place and there is no risk of leakage.

3. Regularly replace the filter bag. Regularly replace the filter bag according to the actual situation of the filter medium to ensure the continuous and stable filtration effect.

4. Avoid overpressure use. Do not exceed the maximum working pressure of the filter to avoid damaging the filter or causing a safety accident.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
