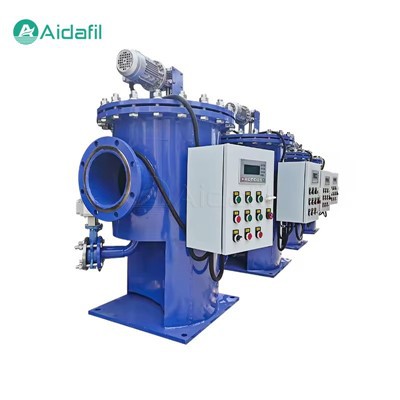

Highly Adaptable Automatic Backwash Filter

The highly adaptable automatic backwash filter is a mechanical device that removes suspended solids from water or other fluids by passing them through a series of filter elements. It is self-cleaning, meaning it periodically reverses the flow of water to flush away accumulated debris, a process known as backwashing. This feature eliminates the need for manual cleaning, thereby reducing maintenance and ensuring continuous operation.



The highly adaptable automatic backwash filter is characterized by the innovative intelligent control system. The integration of intelligent control system into the automatic backwash filter represents a significant leap forward in filtration technology. The system utilizes the sensor, microprocessor, and advanced algorithm to monitor and control the filtration process. By continuously analyzing data such as flow rate, pressure, and particle concentration, the intelligent control system can adjust the filter's operation in real-time to optimize performance and extend the life of the filter elements.



Parameters

Filtration precision	20 - 400 microns
System working pressure	0.2 - 1.0 Mpa
Water pressure required for backwashing	≥0.18 Mpa
Medium temperature	<60 degrees centigrade
Power supply voltage	AC 220V 1A
Control output voltage	DC 24V 1A per channel
Control mode	Differential pressure, timing, manual
Pipe material	Carbon steel, stainless steel, HDPE, etc.



Operation

During operation, the fluid to be filtered enters the filter housing and passes through the filter elements. As the fluid flows, particles are captured by the filter elements, leaving clean fluid to exit the filter. The intelligent control system monitors the pressure differential across the filter elements, which increases as the filter becomes clogged with debris. When the pressure differential reaches a predetermined threshold, the control system initiates the backwash cycle.



The backwash cycle involves reversing the flow of fluid through the filter elements, dislodging and flushing away the accumulated debris. This process is typically accomplished using a dedicated backwash pump or by temporarily redirecting the main flow through a bypass line. The intelligent control system ensures that the backwash cycle is performed at the optimal time and duration to maximize the filter's efficiency and longevity.



Benefits

The highly adaptable automatic backwash filters offers numerous benefits, including:

1. Improved Efficiency. By continuously monitoring and adjusting the filtration process, intelligent control systems can optimize the filter's performance, resulting in higher throughput and lower energy consumption.

2. Extended Filter Life. Intelligent control systems can detect and prevent excessive clogging of the filter elements, thereby extending their service life and reducing the frequency of replacements.

3. Reduced Maintenance. With automated backwashing and intelligent monitoring, the need for manual intervention is greatly reduced, leading to lower maintenance costs and increased system uptime.

4. Enhanced Safety. Intelligent control systems can detect potential issues such as blockages or leaks and take corrective action, reducing the risk of equipment failure and associated safety hazards.

5. Customizable Performance. The advanced algorithms and programmability of intelligent control systems allow for customization of the filtration process to meet specific application requirements.



Applications

The highly adaptable automatic backwash filter has found widespread use in various industries due to its versatility and efficiency. Some common applications include:

1. Water Treatment

In municipal and industrial water treatment plants, the automatic backwash filters are used to remove suspended solids, bacteria, and other contaminants from drinking water, wastewater, and process water.

2. Cooling Systems

In power plants, manufacturing facilities, and other large-scale cooling systems, the automatic backwash filters help maintain the cleanliness of cooling water, preventing scale buildup and corrosion.

3. Irrigation

In agriculture and landscaping, the automatic backwash filters are employed to remove sand, silt, and other debris from irrigation water, protecting sensitive equipment such as sprinklers and drip emitters.

4. Oil and Gas

In the oil and gas industry, the automatic backwash filters are used to clean drilling mud, produced water, and other fluids, helping to maintain equipment integrity and comply with environmental regulations.

5. Food and Beverage

In the production of food and beverages, the automatic backwash filters ensure the purity of process water and ingredients, contributing to product quality and safety.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
