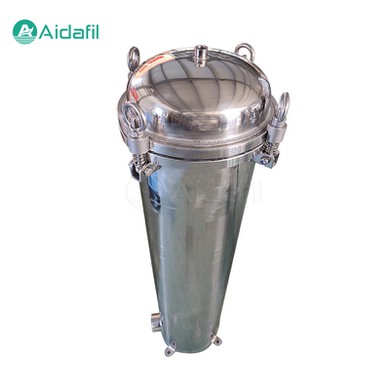

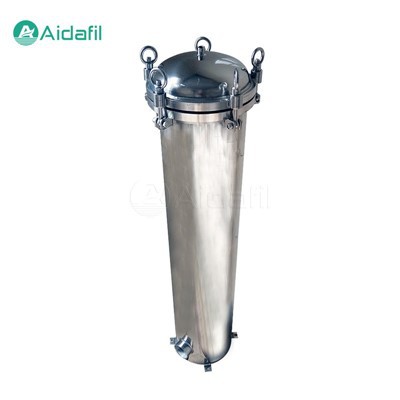

Good Quality Stainless Steel Bag Filter Housing

The Good Quality Stainless Steel Bag Filter Housing works as follow:

Liquid enters from the side inlet pipe of the filter housing and then flows into the filter bag. Since the filter bag itself has a specific pore size and filtration accuracy, when the liquid passes through the filter bag, the part that meets the fineness grade requirements will penetrate smoothly, thus forming a qualified filtrate. The impurity particles will be intercepted by the filter bag and remain inside or on the surface of the filter bag. As the filtration proceeds, the impurities accumulated on the filter bag will gradually increase. When it reaches a certain level, the filter bag needs to be replaced to ensure the continuous and stable filtration effect.



The Good Quality Stainless Steel Bag Filter Housing mainly comprises three parts: filter housing, support basket and filter bag.

1. Filter housing

It is the main structure of the entire filter, usually made of durable materials such as stainless steel and carbon steel. Its design needs to have good sealing and pressure resistance to ensure that there will be no leakage or damage during the filtration process. Different material selections can adapt to different working environments and media characteristics, and meet the requirements of various complex working conditions.

2. Support basket

The main function of the metal support basket is to fix and support the filter bag so that it maintains a stable shape and position during the filtration process. Its structural design should ensure that the liquid can pass through the filter bag evenly while also being able to bear the weight of the filter bag and the filtered material.

3. Filter bag

This is the core component to achieve the filtering function. Filter bags are made of a variety of materials, such as PP (polypropylene), PE (polyethylene), PTFE (polytetrafluoroethylene), stainless steel, nylon, etc. Each material has its own unique performance and application range. For example, PP filter bags have good acid and alkali resistance and chemical stability, and are suitable for general liquid filtration; PTFE filter bags have extremely strong corrosion resistance and high temperature resistance, and can be used in harsh chemical environments and high temperature conditions.



Parameters

Flange standard	HG, GB, SH, HGJ, J8, ANSI, JIS
Connections	Thread, Flange, Clamp
Drain outlet specification	1/4
Filtering precision	0.5 - 800 μm
Design pressure	0.6 - 1.0 Mpa
Design temperature	90°C for PP filter bag, 130°C for PE filter bag, 240°C for PTFE filter bag
Surface treatment	Sand blasting, polishing
Housing material	20#, 304, 316L, 2205/2507, titanium
Sealing gasket material	Silica gel, NBR, PTFE
Filter bag material	Polyester, polypropylene, nylon, PTFE, glass fiber



Advantages

1. High-efficiency filtration. With its well-designed structure and high-quality filter bag material, it can effectively remove impurities, particles, suspended matter, etc. in the liquid to ensure the purity and quality of the filtrate.

2. Easy to operate. It is very convenient to replace the filter bag, without complicated operation and professional skills, which greatly reduces maintenance cost and time.

3. Wide applicability. It can be used to filter various liquid media, including water, oil, chemical liquids, etc., and can also adapt to different flow and pressure requirements.

4. High customizability. Filters of different specifications, materials and filtration precision can be customized according to the specific needs of users to meet the personalized requirements of different working conditions.



Application areas

Due to its many advantages, the Good Quality Stainless Steel Bag Filter Housing is widely used in many industries.

1. Water treatment industry. To purify various types of raw water, reclaimed water and sewage, remove suspended matter, particulate matter, organic matter and other impurities, and provide high-quality water sources for subsequent water treatment processes.

2. Petrochemical industry. To filter out impurities and catalyst particles in the liquid in the process of oil refining and chemical production to ensure smooth production and product quality.

3. Food and beverage industry. To ensure the purity and hygiene safety of food and beverages, and remove sediments, microorganisms, etc.

4. Pharmaceutical industry. To filter liquid medicines, solvents, etc. to meet strict quality requirements for pharmaceutical production.

5. Electronic industry. To filter high-purity liquids and provide pure media for the manufacture of electronic components.

6. Automobile manufacturing industry. To filter all kinds of lubricating oil, hydraulic oil, etc. to ensure the normal operation of mechanical equipment.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
