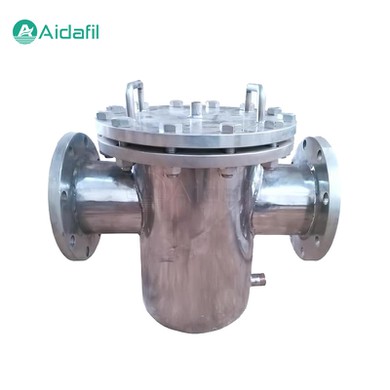

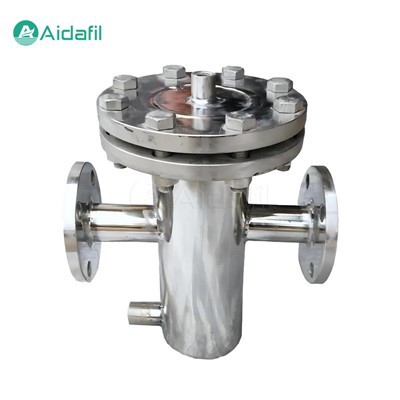

High-Quality Competitive-Price Basket Filter

The High-Quality Competitive-Price Basket Filter is a kind of filtration equipment that plays an important role in many industrial fields. It is mainly used to intercept solid impurities in liquids to ensure the purity and fluidity of liquids.



Composition and structure

1. Connector --- Used to connect pipes for incoming and outgoing liquids.

2. Main pipe --- The main channel through which liquid flows.

3. Filter basket --- The core component, used to intercept solid impurities. Its design is usually fine and has good filtration performance.

4. Flange --- Convenient for connection and installation with other equipment.

5. Flange cover --- It plays the role of sealing and protecting the filter basket.

6. Fasteners --- Ensure the stability of the connection of each component.



How it works

When the liquid enters the basket filter through the main pipe, the solid impurities in it will be intercepted by the filter basket, while the filtered clean liquid can pass through the filter basket smoothly and be discharged from the filter outlet. As time goes by, the accumulation of impurities on the filter basket increases. When it needs to be cleaned, you can unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover for cleaning, and then reinstall it to resume normal use.



Parameters

Material of housing	Cast iron, carbon steel	Stainless steel
Material of strainers	Stainless steel
Material of seal components	Oil-resistant asbestos, flexible graphite, PTFE
Working temperature	-30 ~ +380°C	-80 ~ +450°C
Filtration precision	10 ~ 300 meshes
Nominal pressure	0.6 ~ 6.4 Mpa (150Lb ~ 300Lb)
Connection	Flange, welding



Advantages

1. Compact structure. It takes up less space and is easy to install and layout.

2. High filtration capacity. Capable of efficiently removing large amounts of solid impurities.

3. Small pressure loss. Less resistance to liquid flow, reducing energy loss.

4. Wide range of applications. It can be applied to a variety of liquids and industries with different properties.

5. Easy to maintain. Cleaning and maintenance operations are relatively simple.

6. Low price. With high cost performance.



Applicable materials for basket filters

1. Chemical industry

For example, in chemical and petrochemical production, it can be used to filter weakly corrosive materials, such as water, oil, ammonia, hydrocarbons, etc.

2. Corrosive materials

Can handle corrosive materials in chemical production, such as caustic soda, soda ash, concentrated sulfuric acid, carbonic acid, aldehyde acid, etc.

3. Refrigeration field

suitable for low temperature materials in refrigeration, such as liquid methane, liquid ammonia, liquid oxygen and various refrigerants.

4. Food and pharmaceutical industry

Filtration of materials that meet hygiene requirements in food and pharmaceutical production, such as beer, beverages, dairy products, syrups, etc.



Basket filter application field

1. Industrial water treatment

In industrial water treatment, basket filters can remove impurities and particulate matter from the water, providing high-quality water for subsequent production processes.

2. Air purification

Although it is mainly used for liquid filtration, it can also be used in air purification systems in some special cases to intercept impurities in the air.

3. Food and beverage industry

Ensure the purity of liquid raw materials in the food and beverage production process, and ensure the quality and safety of products.

4. Pharmaceutical production

Provides reliable filtration guarantee for liquid handling in pharmaceutical production, meeting strict hygiene requirements.



Selection principle

1. Inlet and outlet diameter. It should be ensured that the inlet and outlet diameter of the filter is not less than the inlet diameter of the matching pump, and is usually consistent with the inlet pipe diameter to ensure smooth flow of liquid.

2. Nominal pressure. Determine the pressure level of the filter based on the highest possible pressure in the filter pipeline to ensure that the equipment can withstand the corresponding pressure.

3. Selection of pore number. Reasonable selection is mainly based on the particle size of impurities to be intercepted and combined with the process requirements of the media process to achieve the ideal filtration effect.

4. Filter material. Generally choose the same material as the connected process pipeline. For different service conditions, you can consider choosing a more suitable material, such as cast iron, carbon steel, low alloy steel or stainless steel, etc.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
