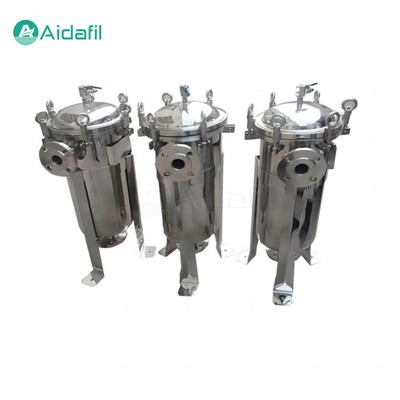

Efficient High-Precision Security Filter

A security filter, also known as a precision filter, is a device used to filter tiny impurities in liquids. Its appearance may not be conspicuous, but it contains a precise filtration structure inside. It is mainly composed of filter cartridges, filter elements, shells and other parts, which work together to complete the fine filtration task of liquids.



Our efficient high-precision security filter works based on its precise filter element structure. When the liquid passes through the filter element, the tiny impurities in it are intercepted on the surface or inside of the filter element, while the pure liquid passes smoothly. The filtration accuracy of the filter element can be selected according to actual needs, ranging from a few microns to tens of microns, to meet the requirements of different application scenarios.



Application Field

1. Food industry

During food processing, the security filter ensures the purity of food raw materials and finished products. Whether it is the clarification of fruit juices or the removal of minor impurities in dairy products, it can perform its task well and provide people with safe and delicious food.

2. Pharmaceutical field

For pharmaceutical products, pure liquids are essential. In the production of medicines, the security filter can effectively filter out impurities that may affect the efficacy and safety of medicines, ensuring the safety of patients' medication.

3. Electronics Industry

High-purity liquids are essential for the manufacturing of electronic components. The security filter provides a reliable liquid filtration solution for the electronics industry, ensuring high-quality production of electronic components.

4. Chemical Industry

Chemical reactions require high purity of liquids, and the security filter plays an important role in the chemical industry, ensuring the smooth progress of the reaction and the quality of the product.

5. Petroleum industry

From oil extraction to processing, the security filter helps remove impurities, improve oil quality, and ensure the efficient operation of the oil industry.



Highlights

1. It can effectively remove floating matter, rust, etc. from liquids.

2. The security filter can withstand high filtration pressure.

3. With a unique deep grid structure, the slag bearing capacity of the filter element can reach a certain height.

4. The filter element of the security filter can be made of fewer materials to meet the filtration needs of different fluids.

5. Its volume is small, but the filtration area is large, and the resistance is small, resulting in a long lifespan.



Parameters

Filter element quantity	3-123
Material	Cylindrical shell, 304 or 316L stainless steel; Equipped with multiple filter elements
Use	Used to filter out fine substances after multi-media filtration (such as tiny quartz sand, activated carbon particles, etc.)
Filter flow	3-246m3/h



3 filter elements	3 m³/h
5 filter elements	5-10 m³/h
7 filter elements	7-14 m³/h
12 filter elements	12-24 m³/h
20 filter elements	40 m³/h
25 filter elements	50 m³/h
30 filter elements	60 m³/h
36 filter elements	72 m³/h
42 filter elements	90 m³/h
51 filter elements	102 m³/h
60 filter elements	120 m³/h
72 filter elements	144 m³/h
123 filter elements	246 m³/h



Key Features

1. High-precision filtration

It can effectively remove tiny particles, suspended solids and other impurities in the liquid, ensuring that the filtered liquid achieves extremely high purity.

2. Maximum flow handling capacity

Even in the face of large amounts of liquid, it can maintain a stable filtration effect without affecting the production schedule.

3. Long service life

Filter elements and other components are made of high-quality materials, ensuring a long service life and reducing maintenance costs.

4. Easy to maintain

Replacing the filter element is simple and convenient, without the need for complex operations and professional skills.



Maintenance

In order to ensure the long-term stable operation of the high-precision security filter, regular maintenance and maintenance is essential. This includes regular replacement of the filter element, cleaning the filter cylinder, checking the seals, etc. At the same time, the filter needs to be regularly tested and calibrated to ensure that the filtration effect always meets the requirements.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
