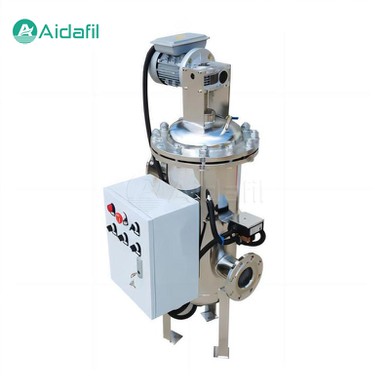

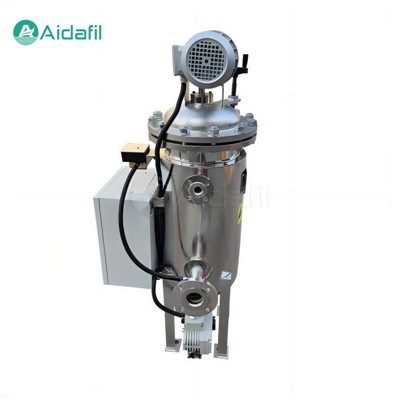

Advanced Automatic Self-Cleaning Water Filter

The advanced automatic self-cleaning water filter works based on pressure difference induction. The water to be treated enters the filter from the water inlet, and impurities in the water will accumulate on the stainless steel filter screen, resulting in a pressure difference. When this pressure difference reaches a preset threshold, the electric controller will send a signal to the hydraulic control valve and the drive motor to trigger the cleaning process. The motor rotates the brush to clean the filter element, and the control valve is opened to discharge sewage. The cleaning process usually only takes tens of seconds. After completion, the control valve closes, the motor stops rotating, and the system returns to its original state, ready for the next filtration process.



Parameters

Single unit flow	50-1200M3/H, larger flow can be realized by multiple single units in parallel
Minimum working pressure	0.2Mpa
Maximum working pressure	1.0/1.6/2.5/4.0Mpa
Maximum operating temperature	80°C
Filtration accuracy	130~3500 microns
Control mode	Differential pressure, timing or manual
Cleaning time	60s
Cleaning mechanism speed	14-20rpm
Cleaning pressure loss	0.01Mpa
Control voltage	AC 220V
Rated operating voltage	Three-phase, AC220V /380V, 50HZ



Properties

The following are the main properties of the advanced automatic self-cleaning water filter:

1. Fully automatic cleaning. The filter is equipped with a fully automatic cleaning function, which can automatically complete the cleaning process without manual intervention. This feature not only saves human resources, but also ensures the continuous stability of the filtration effect.

2. Uninterrupted water supply. During the cleaning process, the filter can achieve uninterrupted water supply, which means that even during the cleaning process, the water supply of the system will not be affected, ensuring the continuity of production.

3. The cleaning cycle is adjustable. Users can adjust the cleaning cycle according to actual needs, which makes the filter more flexible to adapt to different working conditions.

4. Low water loss. The filter loses very little water during cleaning, usually only 0.08-0% of the filtered water, which is of great significance for saving water resources.

5. Various control methods. In addition to fully automatic control, the filter also provides manual control, providing users with more options.

6. Compact structure. The filter has a compact design and a small footprint, making it easy to use in a variety of installation environments.



Application

1. Industrial production

In industrial production, the advanced automatic self-cleaning water filter is widely used in circulating cooling water systems, heat exchange systems, air conditioning systems, boiler feed water systems, sewage treatment systems and other fields. It can effectively remove suspended solids, sediment, rust and other impurities in water, protect equipment from pollution, prolong equipment life and improve production efficiency.

2. Agricultural irrigation

In agricultural irrigation systems, the advanced automatic self-cleaning water filter can ensure the quality of irrigation water, prevent clogging of sprinklers, improve irrigation efficiency, and save water resources.

3. Drinking water treatment

In the field of drinking water treatment, the advanced automatic self-cleaning water filter can remove impurities from raw water, providing clean and hygienic drinking water and safeguarding people's health.

4. Landscape water treatment

In terms of landscape water treatment, the advanced automatic self-cleaning water filter can maintain clear water, improve landscape effects, and reduce water maintenance costs.

5. Pool water treatment

In swimming pool water treatment, the advanced automatic self-cleaning water filter can effectively remove impurities and microorganisms from the pool water, keeping the water clean and providing a safe and comfortable environment for swimmers.

6. Desalination

In seawater desalination projects, the advanced automatic self-cleaning water filter is used as pretreatment equipment to remove suspended solids and microorganisms from seawater and protect the normal operation of subsequent equipment.

7. Food processing

In the food processing industry, the advanced automatic self-cleaning water filter ensures the purity of production water, prevent food contamination, and improve food safety.

8. Pharmaceutical manufacturing

In the field of pharmaceutical manufacturing, the advanced automatic self-cleaning water filter is essential for ensuring the purity of water during the production of pharmaceuticals, directly affecting the quality and safety of pharmaceuticals.

9. Electronics industry

In the electronics industry, the advanced automatic self-cleaning water filter can provide ultrapure water for production, meeting the needs of high-precision electronic product manufacturing.

10. Car painting

In the automotive painting process, the advanced automatic self-cleaning water filter can provide high-quality coating water, ensure coating uniformity and adhesion, and improve product quality.



FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
