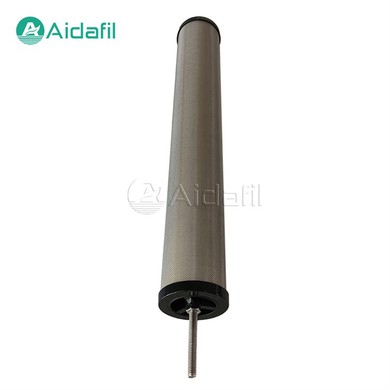

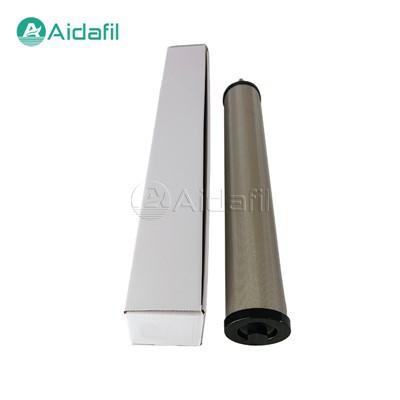

Precision Compressed Air Filter E9-36-IN

If you're looking for a high-performance compressed air filter, then the Precision Compressed Air Filter E9-36-IN is the right product for you. This filter is designed to deliver top-notch filtration, ensuring that your compressed air is clean, dry, and free from contaminants that might cause damage to your pneumatic equipment.



In addition to its filtration capabilities, the precision compressed air filter E9-36-IN is also designed to be highly durable and long-lasting. Made from high-quality materials and manufactured to the highest standards, this filter can withstand even the harshest operating conditions and continue to perform reliably and effectively.



The precision compressed air filter E9-36-IN is ideal for a wide range of applications, including automotive, woodworking, metalworking, food and beverage processing, and pharmaceutical industries. It is suitable for use with air tools, pneumatic cylinders, air compressors, and other pneumatic equipment that requires clean, dry compressed air.



Many customers have used the E9-36-IN filter element and have been extremely satisfied with its performance. One such customer is a metal fabrication company that experienced frequent breakdowns due to contaminated compressed air. After installing the precision compressed air filter E9-36-IN, the company saw a significant reduction in downtime and maintenance costs. The filter element has also improved the performance and lifespan of their pneumatic equipment, resulting in increased productivity and profitability.



Advantage & Feature

· Heat temperature resistance

· Corrosion resistance

· Low airflow resistance

· High mechanical strength

· Better technology and best materials.

· Strong technical support and good command of manufacturing process

· Each piece is tested in accordance with high international standard.

· Easy to put up and replace

· Lead time is shorter.



Parameter

· Part Number: E9-36-IN

· Filter Type: Compressed inline filter

· Filtration Material: Glass fiber, filtration paper, activated carbon

· Filtration Efficiency: 99.9999%

· Change Interval: 12 months

· Working temperature: -10 ~ 80°C

· Flow rate (m³/min/0.7mpa): 11

· Filter diameter (mm): 68

· Filter height (mm): 450

· Filtration accuracy: 3μm

· Maximum remaining oil content: 5ppm w/w



Application

· Industrial manufacturing machine

· Food and beverage

· Automotive

· Electronics

· Pharmaceuticals

· Medical and dental usage

· Petroleum

· Metallurgy



FAQ

Q: Are you factory or trading company?

A: We’re factory with many years designing and manufacturing experiences.



Q: Will you provide samples?

A: Yes, but you need to pay for freight cost.



Q: Can i make the payment online?

A: Yes. You can direct make an order and pay it through Alibaba.



Q: Do you have warranty?

A: The filter’s warranty is one year. When it starts work, the lifetime depends on the working

environment (like pressure, temperature, and particle /dust content etc)



Q: May you do OEM Service?

A: Yes.
