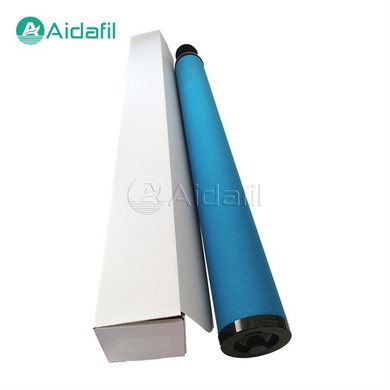

Compressed Air In-Line Filter E3-48-IN

Compressed air in-line filter E3-48-IN is manufactured in line with high quality standards and requirements. It can filter out solid particles as small as 0.01 μm. Such a perfect filtering effect provides pleasant filtration performance. The corrosion-resistant structure plus the fine and durable design permit E3-48-IN filter element to possess reliable and consistent performance and keep smooth running over its lifespan, even in harsh operating environments. The products will receive delivery inspection to remove sub-quality ones.

Feature

· Heat temperature resistance

· Corrosion resistance

· Low airflow resistance

· High mechanical strength

· Better technology and best materials.

· Strong technical support and good command of manufacturing process

· Each piece is tested in accordance with high international standard.

· Easy to put up and replace.

· Lead time is shorter.

Parameter

· Part Number: E3-48-IN

· Filter Type: Compressed inline filter

· Filtration Material: Glass fiber, filtration paper, activated carbon

· Filtration Efficiency: 99.9999%

· Change Interval: 12 months

· Working temperature: -10 ~ 80°C

· Flow rate (m³/min/0.7mpa): 22

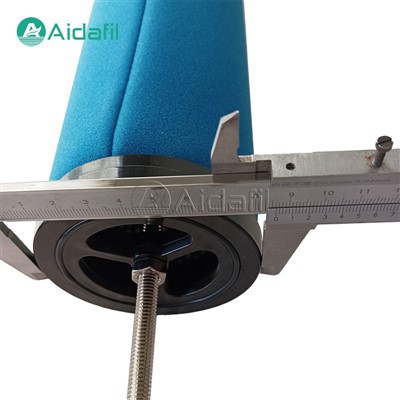

· Filter diameter (mm): 83

· Filter height (mm): 820

· Filtration accuracy: 0.01μm

· Maximum remaining oil content: 0.001ppm w/w

Application

· Industrial manufacturing machine

· Food and beverage

· Automotive

· Electronics

· Pharmaceuticals

· Medical and dental usage

· Petroleum

· Metallurgy
