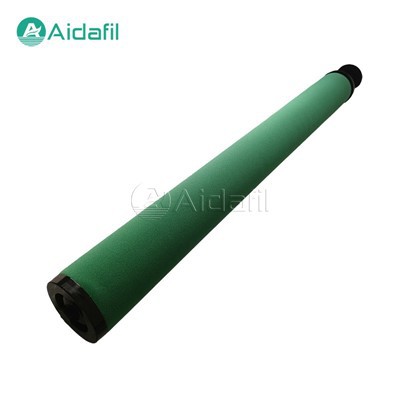

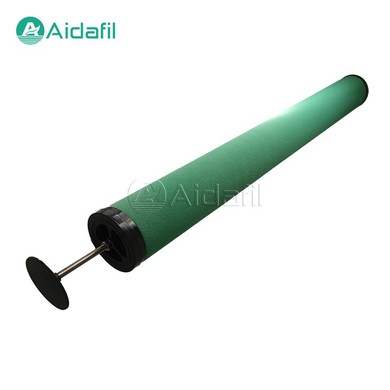

Compressed Precision Air Filter E1-48-IN

Compressed Precision Air Filter E1-48-IN is applied to filter out active carbon, and absorb oil vapor and HCs steam. The inside and outside material of E1-48-IN filter element are both corrosion resistant with high structural integrity. It is tough enough to hold its shape under pressure and maintain even pressure differentials to prevent the filter element from collapsing and crumbling and thus its service life can be long. The filtration accuracy of E1-48-IN can reach 0.01μm, and the filtering performance will meet your requirements.

Feature

· Heat temperature resistance

· Corrosion resistance

· Low airflow resistance

· High mechanical strength

· Better technology and best materials

· Strong technical support and good command of manufacturing process

· Each piece is tested in accordance with high international standard.

· Easy to put up and replace

· Lead time is shorter.

Parameter

· Part Number: E1-48-IN

· Filter Type: Compressed inline filter

· Filtration Material: Glass fiber, filtration paper, activated carbon

· Filtration Efficiency: 99.9999%

· Change Interval: 12 months

· Working temperature: -10 ~ 80°C

· Flow rate (m³/min/0.7mpa): 22

· Filter diameter (mm): 83

· Filter height (mm): 820

· Filtration accuracy: 0.01μm

· Maximum remaining oil content: 0.003ppm w/w

Application

· Industrial manufacturing machine

· Food and beverage

· Automotive

· Electronics

· Pharmaceuticals

· Medical and dental usage

· Petroleum

· Metallurgy
